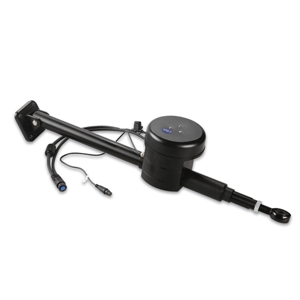

Garmin Class A Linear Drive Autopilot Unit 28500 Lbs

Description

The Garmin Class A Linear Drive Autopilot Unit 28500 Lbs delivers intense physical thrust and low backdrive resistance to eliminate sluggish helm responses and course drift on mid-to-large offshore sailing yachts and racing hulls. Operating on a high-output 12 Volts DC system, this heavy-duty mechanical linear drive links directly to rudders through quadrant systems to manage extreme line tension. Yacht captains can engage automated tracking safely across fin and full keel displacement hulls knowing this automated mechanism handles crushing rudder loads effortlessly.

Forged with an IPX5 protection graded housing, the robust external shell shields internal core drive gears from high-humidity bilge atmospheres and corrosive marine environments. The high-performance drive unit maintains a massive maximum vessel displacement capacity of 13000 kg, supplying rapid traversal thrust during severe weather transitions. Integrating this structural USA-manufactured linear drive into your steering quadrant secures precise rudder alignments, protecting corporate charter cash flows from unexpected mechanical breakdown downtime.

Key Features of Garmin Class A Drive

• Mechanical Linear Drive Unit Only Architecture provides an ideal dedicated high-thrust actuator to pair with existing remote CCU and ECU processors.
• Maximum Vessel Displacement Capacity 13000 kg delivers immense structural muscle to handle large offshore sailing yachts during volatile storm patterns.
• Operating Voltage 12 Volts DC Layout integrates cleanly into standard vessel power networks through standard ECU 12V output configurations.
• Maximum Current Draw 15 Amps Intermittent Peak manages high mechanical traversal outputs while optimizing energy consumption from house batteries.
• IPX5 Protection Graded Housing Shell safeguards sensitive internal motor assemblies from high-humidity exposures inside quadrant bilge spaces.
• Integrated Core Mechanical Feedback system tracks exact rudder positions continuously to maintain high precision autopilot telemetry data paths.
• Low Dynamic Resistance Reverse-Drive Backdrive permits effortless manual wheel control when the autopilot system is completely disengaged.
• Mechanical Tiller Cable and Quadrant Compatibility mounts securely to primary steering quadrants to eliminate loose play or mechanical line lag.
• Heavy Duty Structural Materials resists aggressive mechanical shear stresses to prevent permanent axis bending under full traversal loads.
• High-Torque Actuator Drivetrain forces heavy-duty rudder configurations to respond instantly under peak ocean swell conditions.

In the Box

• 1x Garmin Class A Mechanical Linear Drive Unit
• 1x Pre-Fitted Core Mechanical Feedback Sensor Assembly
• 1x Heavy Duty Steering Quadrant Attachment Pin Hardware
• 1x Industrial Grade Base Mount Casting Block
• 1x Structural Wiring Terminal and Installation Reference Guide

Industrial Actuator Engineering Shields Large Racing Hulls

Designed for large luxury offshore sailing yachts and racing hulls ranging from 32 to 45 feet, this horizontal linear drive ensures stable rudder control that guards vessel safety in crowded bay setups. The advanced low-resistance backdrive configuration coupled with premium structural manufacturing protects business investments from expensive emergency repairs and severe downtime. Checking the quadrant pin alignment according to standard seasonal care routines ensures smooth mechanical movement, protecting the life of your marine asset through years of rigorous deployment.
