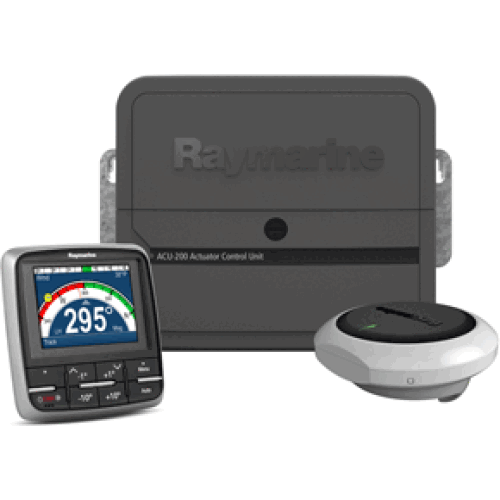

Raymarine EV-200 Power Hydraulic Evolution Autopilot
The Raymarine EV-200 Power Hydraulic Evolution Autopilot delivers smooth automated steering for US coastal cruisers, featuring a Type 1 hydraulic pump and the intelligence of the Evolution sensor.
- Drive Type: Type 1 Hydraulic Pump
- Pump Capacity: 4.9 to 14 Cubic-Inches
- Processor Unit: ACU-200 Control Interface Hub
- Sensor Core: EV-1 Solid State Gyro
- Voltage Input: 12V or 24V DC
Products are almost sold out
available only:
4In Stock
Description
Raymarine EV-200 Power | 9-Axis Sensor & No-Calibration Evolution AI
Eliminate complex autopilot calibration with the Raymarine EV-200 Power, which utilizes advanced Evolution AI to monitor vessel motion across nine distinct axes. This sophisticated solid-state engineering stabilizes heading integrity in heavy seas by compensating for pitch, roll, and yaw with sub-degree monitoring accuracy, ensuring precise course-keeping during high-speed transit and tactical maneuvering in unpredictable offshore environments.
Optimized for medium-sized hydraulic steering systems, this unit integrates via SeaTalkng networks with Raymarine ACU-200 actuators to deliver seamless command execution. Correct placement of the EV-1 sensor core away from electromagnetic interference is critical to maintaining signal precision and preventing dangerous navigational deviation during critical docking or congested channel transit.
Technical Key Features
- EV-1 sensor monitors nine-axis vessel motion.
- SeaTalkng interface enables seamless system integration.
- High-contrast display ensures 700-nit sunlight visibility.
- Low-draw 12V/24V power enhances battery efficiency.
- IPX6-rated housing resists high-pressure water jets.
- CE certified for international maritime standards.
- Compatible with Type 1 hydraulic pumps.
RAYMARINE EV-200 Power Hydraulic Evolution Autopilot Specifications
| Drive Type | Complete Hydraulic Autopilot System |
| Pump/Ram Capacity | Type 1 Reversible Pump Included |
| Flow Rate / Speed | 1000cc / min Flow Rate |
| Max Pressure | 50 Bar (725 PSI) Standard |
| Cylinder Compatibility | 4.9 cu in - 14 cu in (80cc - 230cc) |
| Operating Voltage | 12V DC System |
| Peak Current Draw | 15 Amps (ACU-200 Drive Limit) |
| Average Power Draw | 300mA (Logic) / 2A-4A (Active Steering) |
| Motor Type | Permanent Magnet Reversing DC |
| Computer Compatibility | ACU-200 / EV-1 / p70Rs |
| Port Size / Thread | 1/4" NPT Standard Fittings |
| Drive Connection | Hydraulic High-Pressure Lines |
| Rotation/Stroke Direction | 9-Axis Precision Monitoring |
| Mounting Type | Bulkhead (ACU) / Flush (p70Rs) |
| Housing Material | UV-Stabilized High Impact ABS |
| Waterproof Rating | IPX6 (Control) / IPX7 (Sensor) |
| Operating Temperature | -25°C to +55°C Marine Grade |
| Length (Overall) | 285 mm (ACU-200 Chassis) |
| Width/Diameter | 211 mm (ACU-200 Chassis) |
| Weight | 4.8 kg (Full System Kit) |
| Included Accessories | p70Rs, EV-1, ACU-200, Type 1 Pump, Cabling |
| Key Mechanical Feature | Evolution AI for instant plug-and-play calibration |
