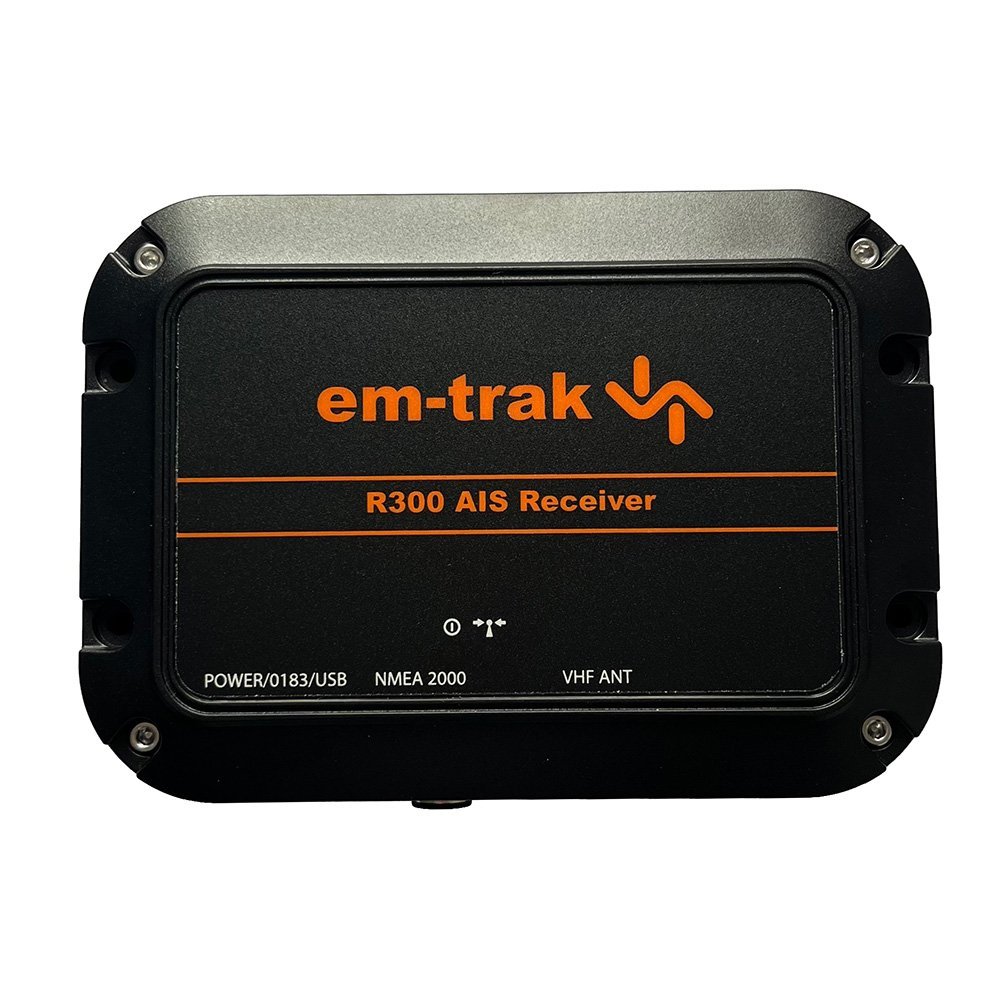

em-trak R300 AIS Receiver
The em-trak R300 delivers high-sensitivity AIS receiving for US marine monitors, featuring a dual-channel design and a specialized data logging function for research or fleet management.
- Device Design: Dual-Channel High-Performance AIS Receiver
- Storage Logic: Integrated SD Card Slot for AIS Data Logging
- Network: Dual NMEA 2000 and NMEA 0183 Output
- Sensitivity: Enhanced Logic for Maximum Target Range
- Power Input: 12V or 24V DC Low Draw Circuitry
Products are almost sold out
available only:
6In Stock
Description
em-trak R300 | High-Performance Dual-Channel AIS Receiver
Engineered to overcome coastal traffic blind spots, the em-trak R300 is a sophisticated dual-channel AIS receiver designed to feed real-time target data to your vessel’s navigation suite. By simultaneously monitoring both AIS frequencies, this unit ensures that every vessel name, course, and position update is captured and displayed on your chartplotter, providing a vital layer of collision avoidance for recreational mariners.
Designed for easy integration via NMEA 2000 or NMEA 0183, the R300 features low power consumption for continuous 24/7 monitoring. Using a high-quality, dedicated VHF antenna is critical to maximizing the receiver’s range, ensuring that even weak signals from distant AIS-equipped vessels are reliably captured and processed by the internal digital engine.
Technical Key Features
- Dual-channel AIS receiver for rapid updates.
- NMEA 2000 and NMEA 0183 connectivity.
- Low-power 12V/24V DC consumption logic.
- Compact, rugged housing for internal mounting.
- LED status indicators for system diagnostics.
- Standard BNC connector for VHF antennas.
- Compatible with all major chartplotter brands.
EM-TRAK R300 AIS Receiver Specifications
| Communication Type | Dual-Channel AIS Receiver (Passive) |
| AIS Class/Protocol | Class A & B Parallel Monitoring |
| Output Power | N/A (Receive Only) |
| Frequency Range | 161.975 MHz and 162.025 MHz |
| Reporting Rate | Continuous Data Output |
| Operating Voltage | 12V / 24V DC Support |
| Current Draw | < 100mA Average @ 12V |
| Interface/Networking | NMEA 2000, NMEA 0183, USB Interface |
| Internal GPS | N/A (Requires Network Position) |
| Display Type | Simple Power & Data Status LEDs |
| Waterproof Rating | IP67 Fully Waterproof |
| Operating Temperature | -25°C to +55°C Marine Grade |
| Length (Overall) | 140 mm Compact Housing |
| Width/Diameter | 100 mm Body Width |
| Weight | 0.25 kg (0.55 lbs) |
| Included Accessories | N2K Cable, Power/Data Cable |
| Key Mechanical Feature | Ultra-rugged design with high-sensitivity receive performance |
em-trak R300 AIS Receiver Technical Guide
The R300 is a high-performance dual-channel receiver. It monitors both AIS frequencies simultaneously, ensuring that all surrounding vessel data—including static, dynamic, and safety messages—is captured in real-time.
The R300 is designed for versatility, offering NMEA 2000, NMEA 0183, and USB outputs. This allows you to feed AIS data to a modern dashboard MFD and a backup laptop navigation system at the same time.
No, the R300 is a receive-only AIS device. It is intended for boaters who want the safety of seeing large ships on their display but do not need or want to broadcast their own position to other vessels.
The unit is designed for ultra-low power consumption. This makes it an ideal choice for sailors and small powerboats where battery capacity is limited and every milliamp counts during long offshore passages.
The R300 features a compact and durable housing that is built to withstand the marine environment. Its small footprint allows it to be easily installed in tight spaces behind the helm or in a protected electronics cabinet.
