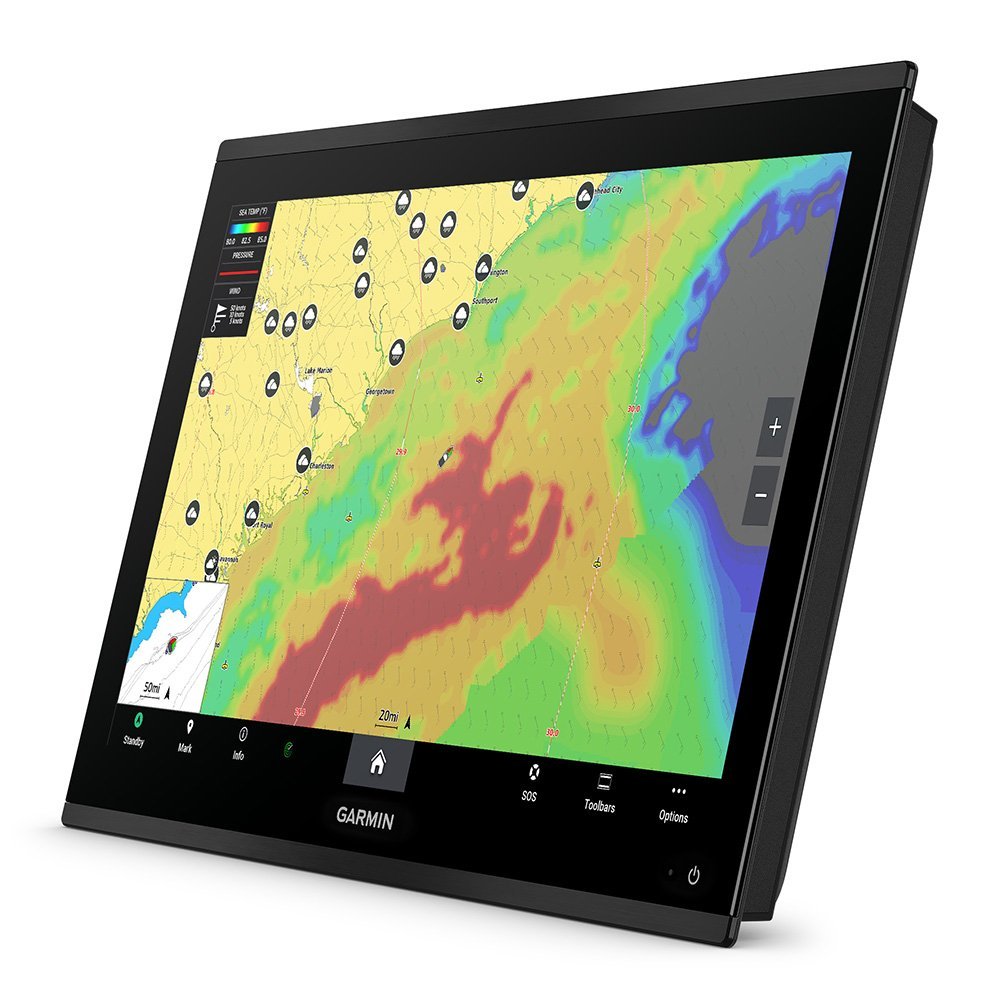

Garmin GPSMAP 9222 22 Premium Chartplotter w/Garmin Navionics+

Garmin GPSMAP 9222 | 22-Inch 4K Navionics+ Master Commander

Garmin GPSMAP 9222 redefines the glass bridge experience by integrating a massive 22-inch 4K resolution IPS display with preloaded Garmin Navionics+ mapping. By utilizing 4K ultra-high-definition clarity, the system mitigates the “data fragmentation” found on smaller screens, allowing the navigator to monitor high-resolution charts, engine telemetry, and radar overlays on a single, expansive interface. This architectural efficiency ensures that captains of luxury vessels maintain absolute situational awareness, leveraging the next-generation processor to render complex bathymetric contours with zero-lag fluidness.

From a system integration standpoint, the 9222 features high-bandwidth 4K networking for video sharing and USB touch control. In demanding offshore environments, it is vital to ensure the NMEA 2000 backbone is correctly balanced to support the high-speed data flow from J1939 engine gateways. System performance relies on stable power; don’t share the unit’s dedicated circuit with high-draw auxiliary equipment, as voltage fluctuations can affect the capacitive touch responsiveness of the edge-to-edge glass display during critical maneuvering in complex littoral zones.

Technical Specifications

• Display: 22-inch 4K (3840×2160) UHD IPS Touchscreen.
• Mapping: Preloaded Garmin Navionics+ (U.S. Coastal/Inland).
• Networking: Multiple Ethernet ports, NMEA 2000, J1939, and Wi-Fi.
• Video: HDMI In/Out with 4K support and USB touch interface.
• Processor: Ultra-high-speed CPU optimized for 4K chart rendering.
• GPS: Internal 10Hz high-precision multi-constellation receiver.
• Protection: IPX7 rated front for flagship bridge installation.
