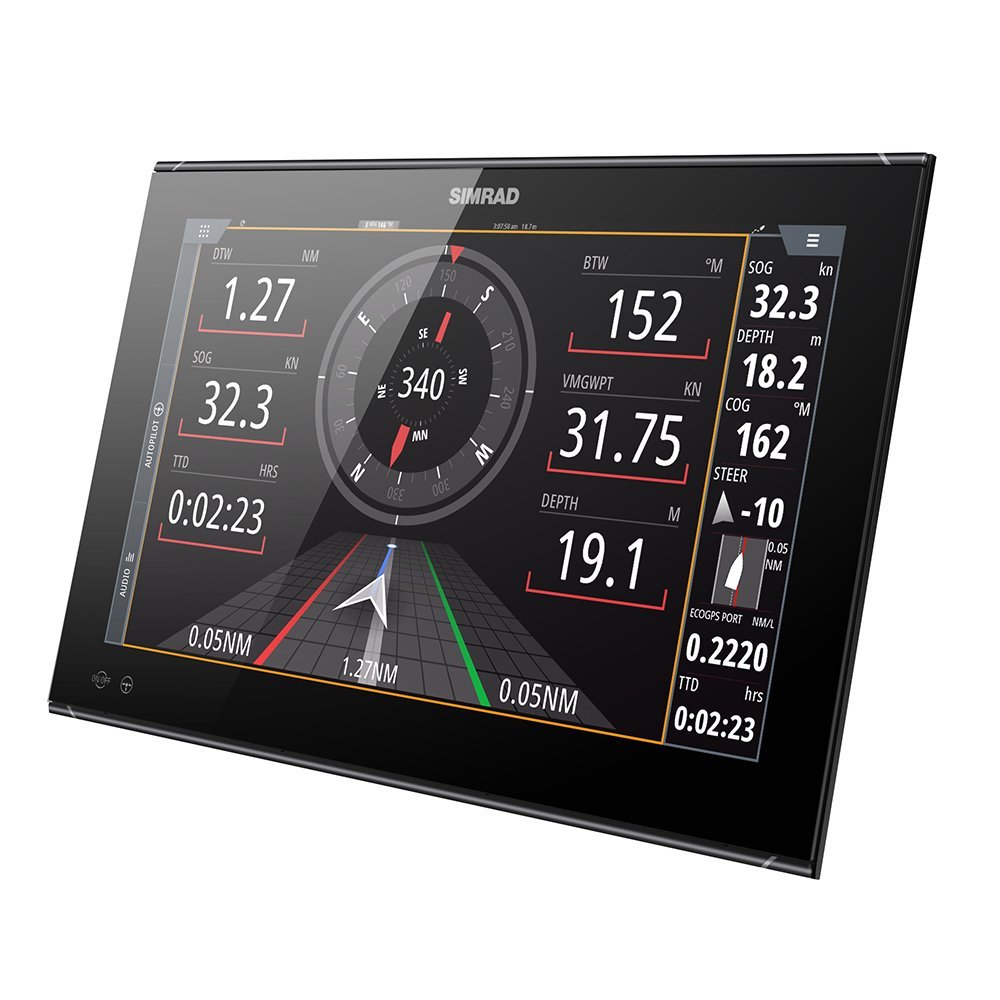

Simrad NSO evo3S 19 MFD Display Only
Simrad NSO evo3S 19 MFD executes professional-grade vessel control through a specialized 19-inch display-only unit, offering an ultra-responsive iMX8 processor for seamless glass-bridge integration.
- Display Size: 19-Inch Full-HD Multi-Touch Interface.
- Processing Power: High-Speed iMX8 Quad-Core Processor.
- Hardware Note: Display Only Unit (Requires Remote/Network Sensors).
- Network Support: NMEA 2000, Ethernet, And HDMI Input/Output.
- Environmental Grade: IPX6 Rated Water Resistant Front Face.
Products are almost sold out
available only:
7In Stock
Description
Simrad NSO evo3S 19 | Flagship Glass Bridge MFD
Simrad NSO evo3S 19 addresses the requirement for professional-grade helm command by utilizing the iMX 8 high-performance quad-core processor. By integrating a 19-inch ultra-bright display with a “Display Only” configuration, the system mitigates hardware redundancy, allowing the navigator to build a custom network of sonar modules, radar, and autopilot controllers. This engineering focus ensures that captains of luxury yachts and commercial vessels maintain absolute situational awareness, leveraging the iMX 8’s superior processing speed to render split-screen layouts with zero-lag performance.
Beyond its raw processing power, the evo3S 19 features an optically bonded SolarMAX™ HD display for superior 178-degree viewing angles. In demanding offshore environments, it is vital to utilize the unit’s high-speed Ethernet ports to offload radar data from the NMEA 2000 bus. System performance depends on thermal management; don’t install the unit in an unventilated, airtight console, as the high-output quad-core engine requires consistent airflow to maintain peak frame rates during intense 3D bathymetry and radar overlay operations.
Technical Specifications
- Processor: iMX 8 Quad-Core for ultra-fast data synchronization.
- Display: 19-inch SolarMAX™ HD IPS (1920×1080 resolution).
- Interface: Capacitive multi-touch glass bridge design.
- Networking: Multiple Ethernet, NMEA 2000, and J1939 support.
- Video: HDMI Input/Output for remote monitoring and entertainment.
- Integration: Optimized for HALO Radar and Simrad Autopilots.
- Protection: IPX6 rated front for bridge-mount durability.
Simrad NSO evo3S 19 MFD Display Only Specs
| Brand | Simrad (Navico) |
| Model Name | NSO evo3S 19 |
| Part Number/SKU | 000-15129-001 |
| Technology Category | Integrated Glass Helm MFD |
| Display Size & Type | 19" SolarMAX HD IPS Touchscreen |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Brightness | 1200 nits |
| Processor/Engine | i.MX8 Quad-Core Processor |
| Operating System | NOS (Simrad Operating System) |
| Sonar Compatibility | Network Sonar Support (S5100, SonarHub) |
| Mapping/Charts | Worldwide Basemap (C-MAP/Navionics Support) |
| NMEA Interface | NMEA 2000, NMEA 0183, J1939 |
| Networking Ports | 3x Ethernet, 1x HDMI Out, 1x Video In, 1x USB |
| Wireless | Wi-Fi, Bluetooth |
| Voltage Input | 10 - 31.2 V DC |
| Power Draw | 40W Max |
| Waterproofing | IPX6 |
| Physical Dimensions | 462 x 310 x 81 mm |
| Cut-out Dimensions | 448 x 296 mm |
| Weight | 6.0 kg |
| Country of Origin | Made in Mexico |
| Standard Warranty | 2 Years |
Simrad NSO evo3S 19 MFD Display Guide
This is a premium multi-function display (MFD) that acts as a powerful central hub for large offshore fishing boats and high-end motor yachts.
This is a standalone navigation workstation meant to be integrated into an existing network; it requires external modules for sonar or radar functionality.
Equipped with an iMX 8 six-core processor, the unit delivers ultra-fast chart redraws and handles multiple high-definition data streams simultaneously with zero lag.
The SolarMAX HD display offers extreme brightness levels and wide viewing angles, ensuring the screen is visible through polarized sunglasses in any weather.
Yes, it supports full digital switching and NMEA 2000 integration, allowing you to manage onboard power, lighting, and engine monitoring from the helm.
