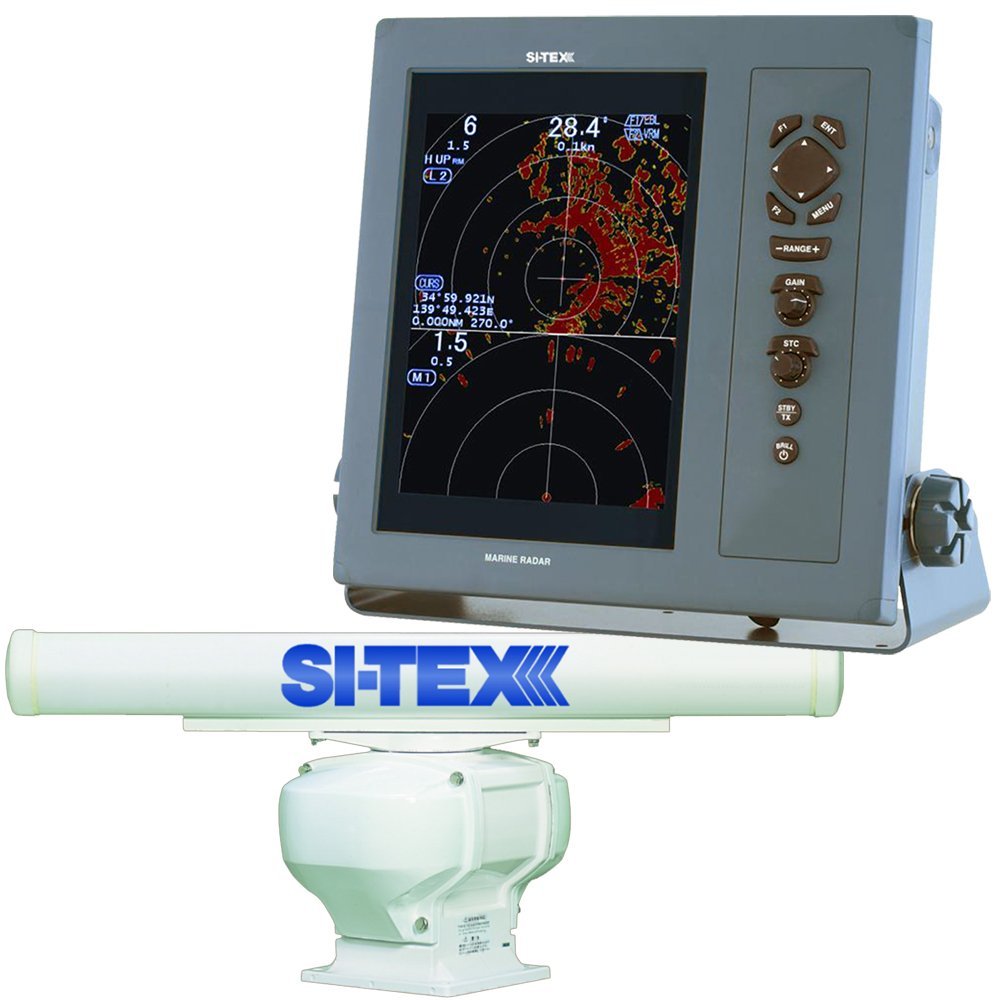

SI-TEX 4kW 3.5′ Open Array Marine Radar System

Description

The SI-TEX 4kW 3.5′ Open Array Marine Radar System eliminates hazardous navigational blind spots and sluggish display latency on commercial crabbing skiffs, coastal trap fishers, rough-sea work vessels, and heavy aluminum fishing hulls looking for traditional long-range structural tracking. Operating on a wide 10.8 to 40 Volts DC high-voltage rail protection layer, this complete open array pack coordinates magnetron pulse radar processing to replace low-power alternative dome units entirely. Commercial captains can navigate heavy rain or pitch-black coastal inlets safely, letting the advanced multi-speed drivetrain track obstacle vectors flawlessly across a 48 nautical mile range.

Constructed with an IPX6 weatherproof spray defended guard enclosure, the rugged cast metal base housing delivers an intense 70 knots wind load resistance to withstand continuous gales and open ocean storm conditions. The high-performance pulse magnetron outputs a strong 4 kW peak power, driving a standard 24 RPM rotational speed scan to capture instant structural echoes. Procuring this premium United States-manufactured open array package optimizes maximum shoreline definition and long-range structural tracking, backed by a comprehensive 2-Year limited factory warranty plan.

Key Features of SI-TEX 4kW Open Array System

• Complete Open Array System Pack Architecture bundles the heavy-duty pedestal base drive, 3.5-foot high-definition radiator bar, and networking interconnects into a singular radar hub.
• Traditional Magnetron Pulse Radar Processing Core pushes powerful electrical frequencies deep into heavy marine layers to isolate hard-to-detect offshore hazards.
• 48 Nautical Miles Maximum Radar Range expands open-water navigation boundaries significantly to spot faraway weather fronts and commercial fishing zones.
• 25-Meter Close-Range Target Separation Close-Range Threshold isolates small docks, rocky shorelines, and channel buoys perfectly down to 82 feet from the bow.
• 2.4-Degree Target Angular Discrimination horizontal beamwidth provides exceptional angular target discrimination to separate tightly grouped vessels.
• 24 RPM Standard Rotational Speed Scan maintains a stable, continuous refresh pattern across the multi-function display terminal screen layout.
• MARPA Target Tracking up to 10 Targets Simultaneously tracks moving objects concurrently via compatible SVS displays to eliminate collision overshooting risks in high-traffic shipping channels.
• Proprietary SI-TEX MDS System Network Connector Bus transmits real-time depth sentences, position data, and radar maps across the vessel network instantly.
• IPX6 Weatherproof Spray Defended Guard Enclosure seals internal motor drive mechanisms completely from high-pressure saltwater washdowns and heavy rain.
• Low Energy Active Transmitting Power Consumption max 50 Watts minimizes auxiliary current draw while offering an energy-saving standby mode using only 10 Watts.

In the Box

• 1x SI-TEX MDS-10-4 Radar Pedestal Base
• 1x SI-TEX 3.5-Foot Open Array Radiator Bar
• 1x Heavy Duty Interconnect Power and Data Cable Harness
• 1x Premium Marine Grade Mount Bolt and Stud Fastener Pack
• 1x Technical Installation Reference Manual and System Configuration Guide

Traditional Magnetron Engineering Shields Commercial Fishing Skiffs

Designed for commercial crabbing skiffs and heavy aluminum fishing hulls ranging from 24 to 40 feet, this open array radar system ensures stable target tracking that guards fleet safety. The advanced pulse magnetron layout coupled with comprehensive 2-Year limited factory warranty protection shields owners from unexpected system breakdowns and expensive replacement bills. Checking the base mounting fasteners according to standard seasonal care routines ensures tight mechanical stability, protecting your structural navigation investment through years of continuous offshore service.
