Mercury 9.9ELH 9.9HP – Command Thrust Four Stroke 20-Inch Shaft

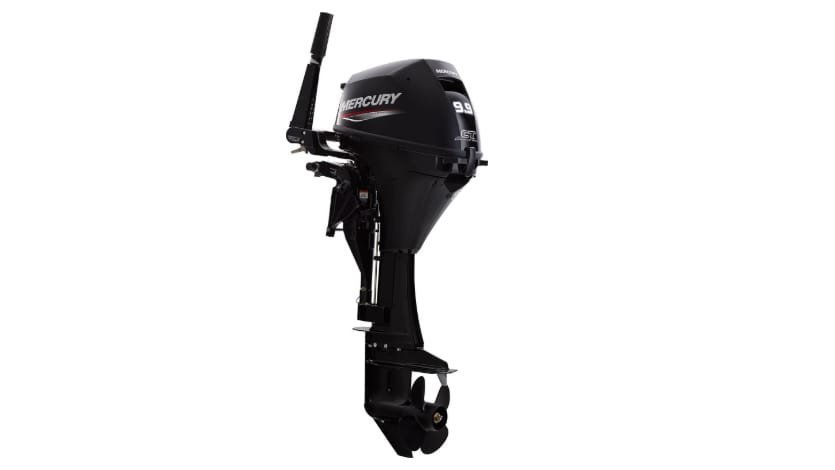

Mercury 9.9ELH 9.9HP Command Thrust

The Mercury 9.9ELH is a rugged 9.9HP FourStroke outboard featuring the high-thrust Command Thrust gearcase and direct tiller control for the US recreational maritime market. Built on a robust 208cc inline 2-cylinder SOHC architecture and weighing 103 lbs, this engine delivers phenomenal hydrodynamic leverage for heavy-load skiffs. This 20-inch long shaft model is configured with an electric start tiller, making it the premier choice for sailboats and high-transom utility boats. Our reliable marine outboard engines provide the mechanical dependability and torque required for professional fishing and coastal navigation.

Operational performance for this Mercury 9.9HP is achieved between 5000 and 6000 RPM. The specialized 2.42:1 Command Thrust gear ratio allows for a larger propeller, providing the low-end grunt needed to move heavy hulls with ease. Manufactured in the USA, this highly corrosion-resistant motor features CDI ignition with Electronic Spark Advance and a 6 Amp alternator to ensure a quiet, comfortable ride during long days navigating American coastal estuaries.

Technical Specifications of Mercury 9.9ELH

• The 208cc inline two-cylinder SOHC design maximizes combustion efficiency and eliminates the vibration common in smaller engines.
• Command Thrust gearcase provides a 2.42:1 ratio and extra-large torpedo for swinging high-thrust props with superior authority.
• Ergonomic tiller handle provides direct steering control and precise throttle adjustments for tight maneuvering in river channels.
• The reliable 2-valve carbureted fuel induction system ensures straightforward mechanical maintenance and consistent low-end performance.
• Manual 6-position tilt allows for precise engine angle adjustments to optimize hydrodynamic efficiency in shallow water environments.
• Through-propeller exhaust design manages engine backpressure and operating noise for a more peaceful and quiet boating experience.

Command Thrust Hydrodynamics

The Command Thrust (CT) gearcase is designed to swing a propeller with 20% more surface area than standard models. This “bigger is better” philosophy in the lower unit ensures that heavy aluminum skiffs and pontoons plane faster and stay on plane at lower speeds, providing superior boat control in the unpredictable American saltwater environment.

20-Inch Long Shaft Versatility

The 20-inch long shaft is purposefully designed to reach deeper water from high-transom mounting points on sailboats and large aluminum skiffs. This prevents propeller ventilation in choppy conditions and ensures consistent hydrodynamic grip, providing the captain with safe, predictable boat control during harbor transits and coastal navigation.

Refined Twin-Cylinder Performance

By splitting the 208cc displacement across two cylinders, the 9.9ELH virtually eliminates engine vibration. This provides the smooth, reliable low-end torque required for pushing heavily loaded utility boats and tenders through strong harbor currents without the noise and vibration associated with single-cylinder competitors.

Mercury 3-Year Protection

Every Mercury 9.9HP Command Thrust outboard is backed by a comprehensive 3-Year Limited Warranty for American boat owners. This factory-backed coverage covers structural and mechanical defects to ensure long-term maritime reliability and access to genuine parts through a vast nationwide dealer network.

Maintenance & Longevity

Maintaining clean oil in the 0.8L pressure lubrication system is vital for preserving engine tolerances over time. Always flush the cooling system with fresh water after every saltwater outing. Pro Tip from the Shop: Periodically lubricate the tiller twist-grip and shift linkages with marine grease, and check the gear oil frequently to ensure the Command Thrust gearcase remains free of water intrusion in harsh environments.
