Ritchie HF-742W Helmsman Compass – Flush Mount – White

Description

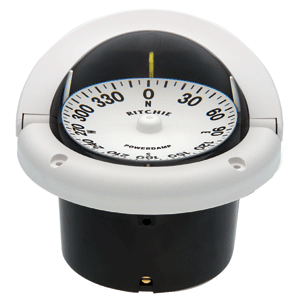

When you need a large, reliable heading display for your white fiberglass console, the Ritchie HF-742W Helmsman fits the bill perfectly. This flush-mount compass centers around a highly visible 3.75-inch direct-reading CombiDial. To help you track a strict heading, Ritchie added tactical lubber lines into the dome. Underneath the card, a hardened steel pivot and a sapphire jewel bearing do the heavy lifting. This friction-free setup guarantees that the dial reacts instantly and smoothly every time you turn the steering wheel.

Boating can be violent, so the HF-742W relies on a heavy-duty internal gimbal system to absorb shock and keep the dial level. The completely weatherproof housing keeps saltwater out and handles temperature extremes from -20°C up to 60°C without breaking a sweat. It comes standard with integrated 12V green LED lighting for crisp night viewing. To install it, you will need to commit to cutting a 4.63-inch (118 mm) hole in your dash panel, giving you a beautiful, factory-flush finish.

Key Specifications of the Ritchie HF-742W Helmsman Marine Compass

• A spacious 3.75-inch direct-reading CombiDial provides a massive viewing area, complete with tactical lubber lines for tight course holding.
• The combination of a sapphire jewel bearing and steel pivot ensures the compass card rotates flawlessly without getting stuck on its axis.
• A specialized internal gimbal mechanism isolates the dial from the boat’s pitching, keeping your heading data stable in heavy chop.
• Wired for 12V power, the internal green LED system illuminates the numbers clearly without throwing blinding light into the captain’s eyes.
• Built-in compensator magnets give you the ability to manually adjust the compass to ignore magnetic interference from your boat’s hardware.
• The unit requires a 4.63-inch dash cutout, securing the compass tightly to the console for a low-profile, snag-free installation.
• Fully weatherproofed materials ensure the compass survives years of direct sunlight, heavy rain, and corrosive saltwater spray.

Helm Use and Readability

Readability is where the HF-742W truly excels at the helm. The oversized 3.75-inch dial makes scanning your heading effortless, even if you are standing up behind the wheel. The tactical lubber lines give you distinct visual boundaries, making it much easier to realize when the boat is slowly drifting off course. At night, the green LED light provides phenomenal contrast. Green is the easiest color for the human eye to process in the dark, reducing eye fatigue significantly.

Why Choose the Ritchie HF-742W Helmsman Marine Compass

Upgrading to the HF-742W Helmsman marine compass means choosing professional-level navigation. The larger dial size simply makes driving easier, especially on long offshore runs. The premium sapphire jewel movement ensures you aren’t fighting a sticking, bouncing compass card when you hit boat wakes. Its clean, white flush-mount design looks like it came straight from the boat builder’s factory. For captains who refuse to rely entirely on GPS, this is a heavy-duty, dependable mechanical backup.

Mounting and Compensation Considerations

Because you are cutting a 4.63-inch hole, picking the right spot is crucial. Mount this Ritchie marine compass so you can look straight down the boat’s centerline. Keep it physically separated from anything that creates a magnetic field, like VHF antennas, wiper motors, or massive chartplotters. Once the compass is bolted down, you must take the boat out to open water and carefully adjust the built-in correctors to cancel out your boat’s unique magnetic signature.

Warranty and Support

Ritchie backs the quality of this compass with their Exclusive 5-Year Limited Warranty against manufacturing faults. If you need exact dimensions or wiring help, reach out to Mulmarine.com for support before pulling the trigger. Their warehouse staff manually verifies that the compass and mounting hardware are actually in the box before it leaves the facility. You can find all the fine print regarding warranty coverage directly on the Mulmarine.com website.

Before Ordering the Ritchie HF-742W Helmsman Marine Compass

Do not order until you measure your console. You absolutely need a flat area large enough for a 4.63-inch hole, plus room underneath for the compass body to sit without hitting wiring harnesses. Make sure you have a dedicated 12V switch on your dash to control the green LED lighting. Look at the surrounding area to ensure you aren’t installing it right next to a magnetic hazard that will make the compass impossible to calibrate.
