Raymarine i60 Wind Display System w/Masthead Wind Vane Transducer

Description

The Raymarine i60 Wind System combines an analogue/digital wind display with a masthead wind vane transducer, giving a sailing boat the key wind information at the helm without relying on a chartplotter page. Its segmented LCD and analogue pointer are easy to read while the boat is moving, and the system fits the compact i-Series instrument footprint.

The i60 shows apparent wind speed and angle, with true wind, Beaufort scale, maximum wind, and high-wind alarm functions available through the compatible instrument network. SeaTalk, SeaTalkng, and NMEA 2000 compatibility make it suitable for a Raymarine sailing system, while two SeaTalkng ports simplify connection to the backbone and another instrument. The 12V display draws only 45-65mA, and the supplied masthead sensor completes the basic wind installation.

Key Features

• Analogue pointer and segmented LCD – Makes wind angle and digital readings quick to check from the helm.
• Apparent and true wind data – Provides useful information for cruising, sail trim, and performance sailing.

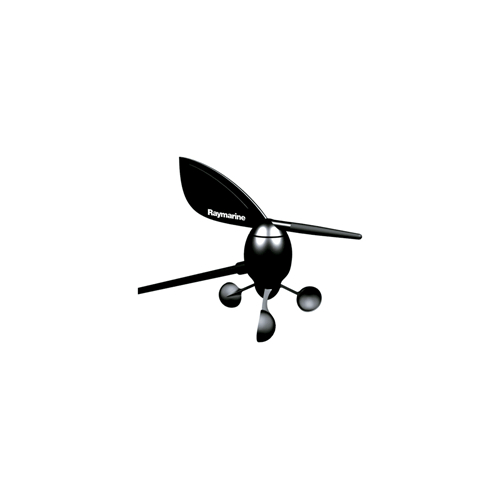

• Masthead wind vane transducer included – Supplies the sensor needed for the wind display system.
• SeaTalk, SeaTalkng, and NMEA 2000 – Connects the wind instrument to compatible Raymarine networks.
• Two SeaTalkng ports – Gives the system practical backbone connection options.

Who Is This For?

This Raymarine wind instrument system suits cruising yachts, sailing sloops, and offshore sailboats that need a dedicated wind display. It is not ideal for buyers wanting charting or fishfinder functions; it is a wind instrument package, not a multifunction display.

Compatibility

Confirmed compatibility includes SeaTalk, SeaTalkng, NMEA 2000, two SeaTalkng ports, and the supplied Raymarine masthead wind vane transducer. The supplied information does not identify direct Garmin, B&G, Simrad, NMEA 0183, radar, or autopilot compatibility. No named incompatible system was provided; verify the Raymarine network and masthead wiring before installation.

Technical Specifications

• Brand: Raymarine
• Model: i60 Wind System with transducer, E70150
• Display: Segmented LCD with analogue dial
• Functions: Apparent wind speed, apparent wind angle, true wind, Beaufort scale, maximum wind, high-wind alarms
• Networking: SeaTalk, SeaTalkng, NMEA 2000, two SeaTalkng ports
• Voltage: 12V DC
• Power draw: 45-65mA display only
• Water rating: IPX6
• Dimensions: 110 x 115 x 44mm
• Warranty: 2 years standard; 3 years with registration

Warranty & Support

Raymarine provides a 2-year standard warranty, or 3 years with registration as listed in the supplied specifications. Warranty exclusions and service procedures were not provided.

The i60 Wind System is the ready-to-install choice compared with the i60 display-only unit because the masthead sensor is included. Its trade-off is that the system remains centered on Raymarine SeaTalk and SeaTalkng equipment. Choose it when the boat needs a dedicated wind display and compatible Raymarine network, not a general-purpose chartplotter.
