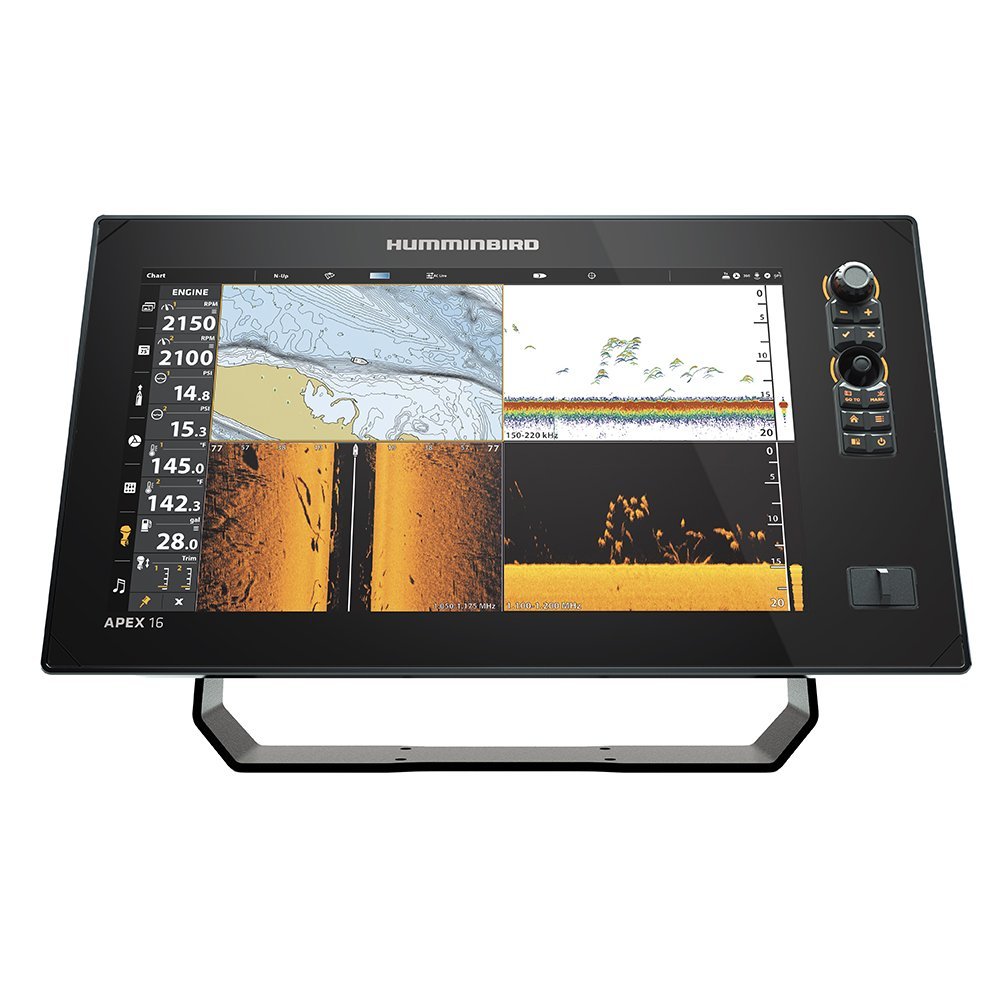

Humminbird APEX 16 MSI+ Chartplotter MFD Display Only

Description

The Humminbird APEX 16 MSI+ Chartplotter MFD Display Only provides crystal-clear target separation and responsive map panning to eliminate muddy display clutter on premium saltwater center consoles, twin-helm sportfishers, and large tournament bass boats. Operating efficiently on a 10.8 to 20 Volts DC range, this control head display unit interfaces with existing multi-transducer networks to deliver extreme 1000 Watts RMS sonar power. Professional tournament anglers can navigate treacherous reef margins or deep offshore shelves confidently, letting the high-output sonar processor map dynamic target returns perfectly.

Equipped with a crisp 15.6-inch diagonal window displaying 1920 x 1080 Full HD resolution, the advanced Cross Touch IPS display glass delivers flawless visibility across blinding open helm dashboards. The built-in MEGA Side Imaging+ and Down Imaging+ processing tracks performance bands up to 1.2 MHz, mapping fish holding structures with photo-like clarity down to 250 feet. Integrating this standalone USA-built display upgrade into your vessel backbone establishes flexible data paths, and it comes protected under a factory-backed 2-Year limited pleasure marine warranty to eliminate unexpected repair downtime.

Key Features of Humminbird APEX 16 MSI+

• Control Head Display Only MFD Architecture provides an ideal high-resolution display terminal to pair with existing transducers and multi-display network rigs.
• Full HD 1920 x 1080 Cross Touch IPS Touchscreen combines responsive multi-touch control logic with physical button safety for operation in wet weather.
• MEGA Performance Scanning Sonar Frequencies utilizes 455 kHz, 800 kHz, and 1.2 MHz bands to deliver the highest level of target separation available.
• Traditional CHIRP Spectrum Range 150 to 220 kHz tracks deep game fish signatures down to 3500 feet while maintaining clean tracking paths.
• MEGA Live Imaging Network Interface capability links directly to premium high-speed live action sonar sweeps to monitor immediate lure tracking loops.
• Dual Ethernet Ports and NMEA 2000 Micro-C Integration shares critical navigation waypoints and radar telemetry across separate helm stations simultaneously.
• HDMI In and Out Data Connection Terminals allows mirroring of full 1080p display views onto secondary flybridge monitors or cabin television screens.
• Maximum Current Draw 3.6 Amps at 12V DC preserves precious deep-cycle battery reserves during long days of tournament trolling operations.
• IPX7 Open Helm Dashboard Waterproof Sealing resists direct high-pressure saltwater spray to permit exposed flush mounting on open center consoles.
• Integrated Wireless Bluetooth and Wi-Fi Smart Technology pairs with smartphones or remote controllers to enable effortless wireless map downloads and software updates.

In the Box

• 1x Humminbird APEX 16 MSI+ CHO Control Head Display
• 1x Heavy Duty Gimbal Mounting Bracket Assembly
• 1x Unit Protection Sun Cover Cap
• 1x Waterproof Power and Network Data Harness Pack
• 1x In-Dash Flush Mounting Gasket Template and Installation Manual

Flagship Screen Real Estate Optimizes Tournament Fishing

Designed for premium saltwater center consoles and tournament bass boats ranging from 24 to 45 feet, this 15.6-inch display instrument delivers elite monitoring accuracy that protects ground tackle safety in moving currents. The weather-sealed IPS fascia combined with an ironclad 2-Year limited warranty program shields owners from unexpected component breakdowns and expensive helm replacement bills. Rinsing salt crust off the display face with fresh water after every trip maintains pristine structural finishes, protecting your pleasure marine investment for years of outdoor use.
