Aquaglide Spire 6’8″ Structure

Description

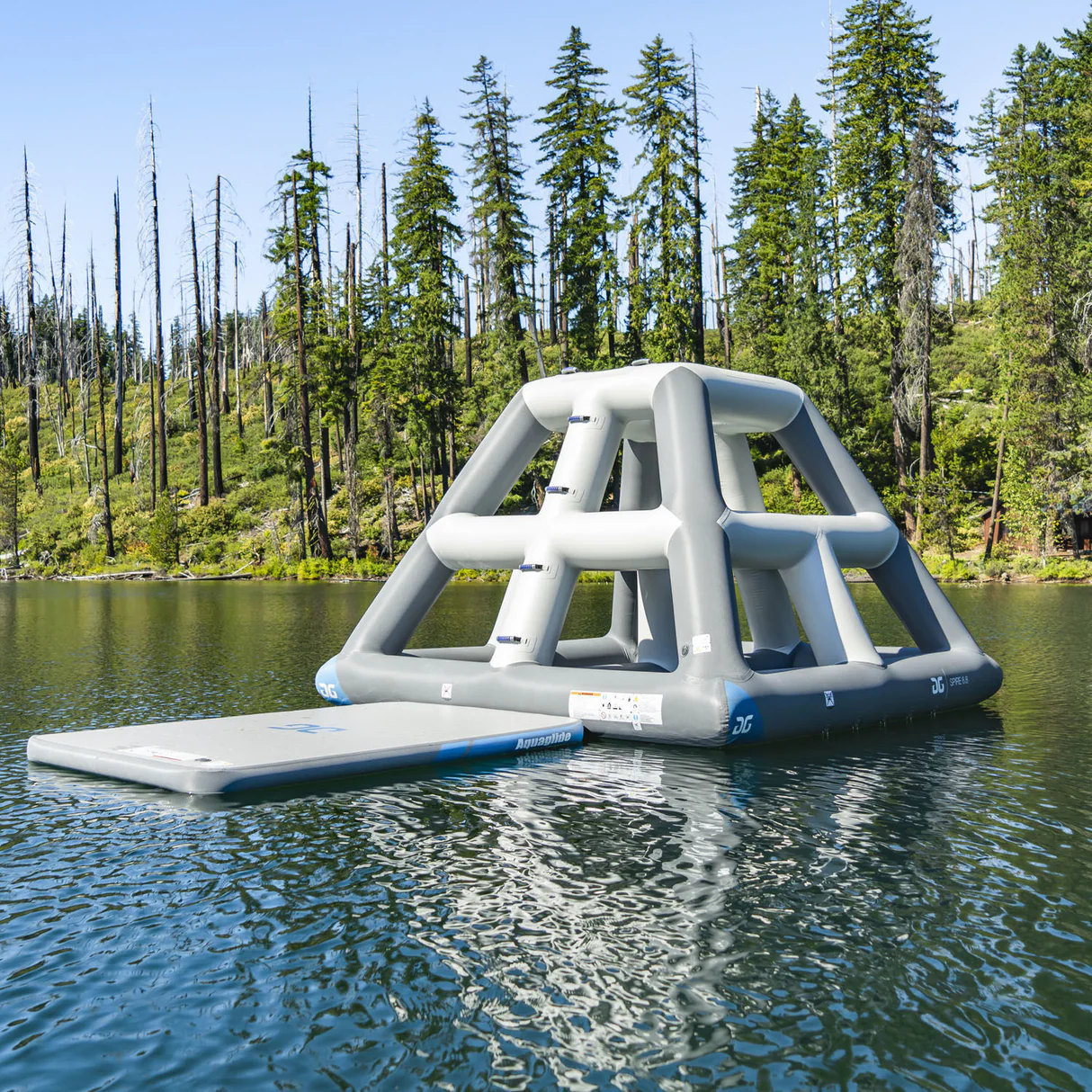

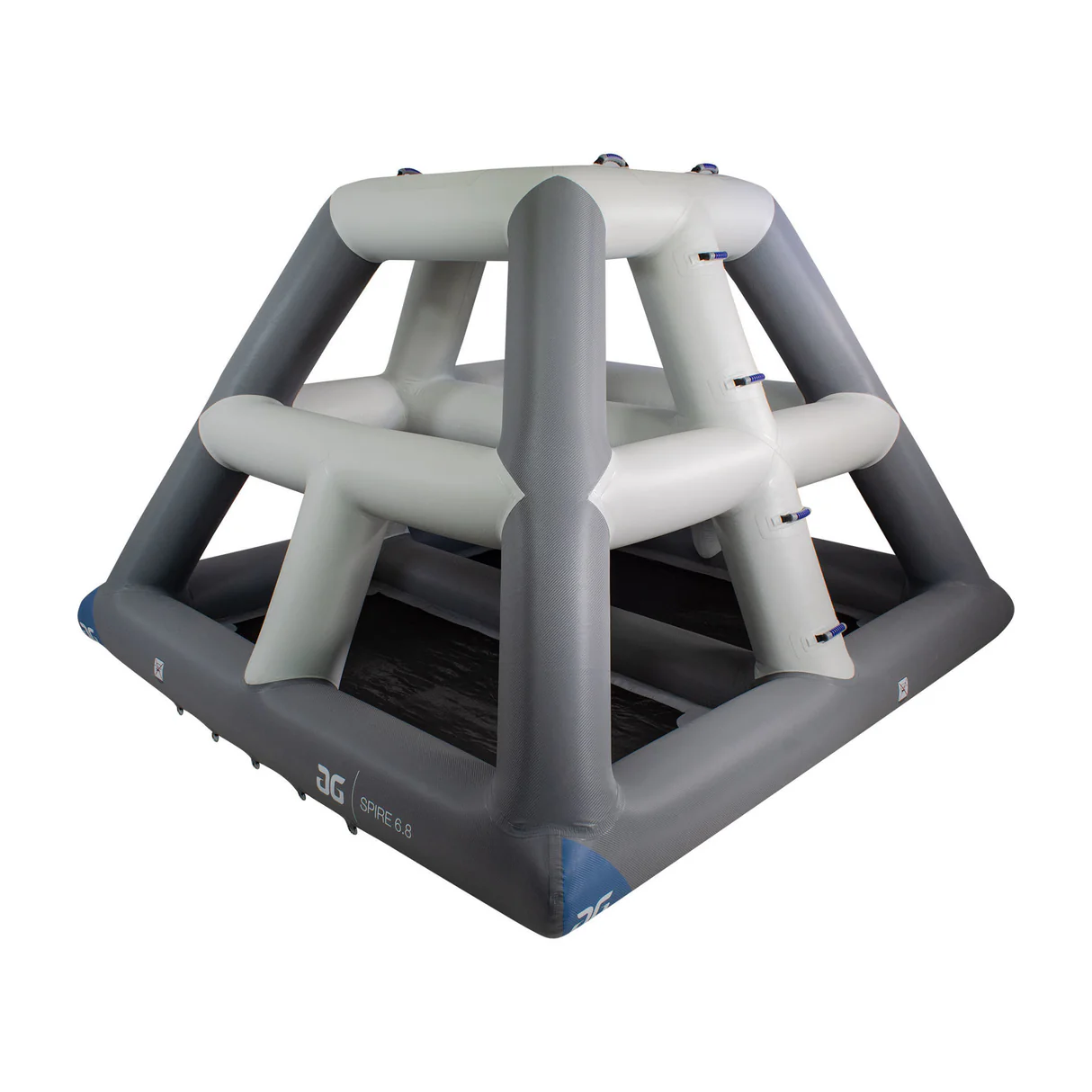

Built as a vertical climbing obstacle and multi-path hub, theAquaglide Spireprovides four-sided Vario-Lock 10 integration for Aquapark circuit layouts. The Duratex 0.90 mm reinforced PVC structure inflates to 10 ft by 10 ft by 6 ft 8 in. It supports up to four active users and weighs 84 lbs when dry.

The main chamber operates at the listed 2.0 PSI pressure. Four heavy-duty 316 stainless steel D-rings provide the mooring points. The module requires a 6 ft water-depth clearance zone around the climbing structure.

Key Features of the Spire Climbing Obstacle

• Duratex 0.90 mm reinforced PVC forms the listed vertical climbing-obstacle construction.
• Inflated dimensions measure 10 ft by 10 ft by 6 ft 8 in.
• Up to four users can occupy the climbing module at the same time.
• A 6 ft minimum water depth provides the listed safety-clearance zone.
• The main chamber operates at the listed 2.0 PSI pressure.
• Vario-Lock 10 provides the listed four-sided multi-hub connection system.
• Four heavy-duty 316 stainless steel D-rings provide the listed mooring points.
• The 84 lbs dry weight supports handling and water-based deployment planning.

Use and Capacity

The Spire is classified as a vertical climbing obstacle and four-way multi-path hub element. It supports up to four concurrent active users. The required 6 ft water depth provides the listed clearance zone beneath the 6 ft 8 in-high inflatable structure.

Operators should maintain the listed 2.0 PSI main-chamber pressure and use Vario-Lock 10 compatible connections for multi-hub layouts. The available product details do not list a pump, anchor system, mooring lines, repair kit, safety equipment, or specific linked modules as included.

Materials and Construction

Duratex 0.90 mm, 1000-denier reinforced PVC forms the listed commercial climbing structure. Vario-Lock 10 straps provide the listed four-sided multi-hub connection system. Four heavy-duty 316 stainless steel D-rings form the listed mooring points.

Water, salt, sand, sunscreen residue, and debris can still collect around PVC panels, climbing surfaces, D-rings, straps, seams, and valves. Rinse and inspect the product regularly. Follow manufacturer guidance for inflation, interconnection, mooring, cleaning, and storage.

Installation and Setup

The Aquaglide climbing obstacle inflates to 10 ft by 10 ft by 6 ft 8 in and weighs 84 lbs when dry. Installers should choose a location with at least 6 ft of water depth, allow room for the full footprint and clearance zone, plan the Vario-Lock 10 layout, and identify four mooring positions before deployment.

Inflate the main chamber to the listed 2.0 PSI operating pressure. The provided product data does not confirm a pump, anchors, mooring lines, repair kit, safety equipment, or connection modules as included.

Care and Operating Notes

Rinse the PVC structure, climbing surfaces, D-rings, Vario-Lock straps, seams, and inflation valves with fresh water after use. Remove salt, sand, sunscreen residue, and debris before storage or reinflation. Inspect seams, valves, climbing surfaces, straps, D-rings, and visible PVC panels before operation. Follow manufacturer instructions for inflation, repairs, cleaning products, storage, and approved replacement parts.

Warranty and Support

The Spire carries a 3-year limited commercial fleet protection warranty. Coverage follows the manufacturer’s stated warranty terms and may be subject to exclusions, conditions, and registration requirements.

Before Ordering

Confirm that the intended water location provides at least 6 ft of depth and space for the 10 ft by 10 ft by 6 ft 8 in climbing obstacle. Plan for no more than four active users, maintain 2.0 PSI main-chamber pressure, use Vario-Lock 10 compatible connections, account for the 84 lbs dry weight, and arrange four mooring points.
