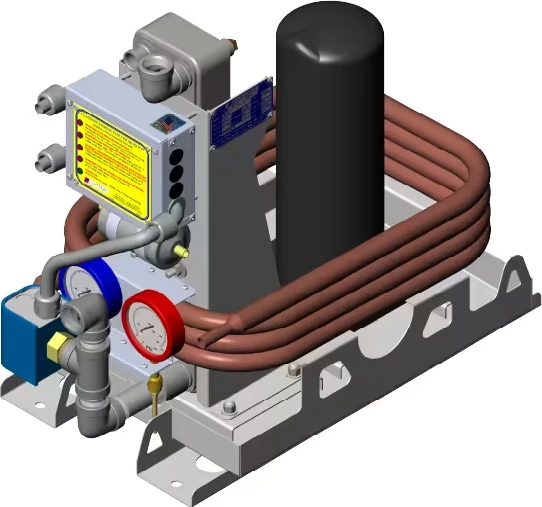

Flagship FM36CW 36000 BTU 230V Marine Water Chiller

Description

Boats wanting central chiller cooling without stepping into six-figure BTU territory find a solid match in the Flagship FM36CW, delivering 36,000 BTU from a compact 25″ x 15.5″ x 23″ chassis. This compact yacht chiller two zone system is sized for boats with just two or three independent cooling areas that still want the maintenance simplicity of one central plant.

At 121 lbs and built on the same copper-nickel condenser platform as Flagship’s larger chillers, this unit brings the corrosion resistance and serviceability of the full lineup down to a size and price point that works for mid-sized cruising boats, not just superyachts.

Key Features of the Flagship FM36CW Chiller

This flagship copper nickel chiller shares its construction quality with every other model in the range — nothing about the smaller capacity means cutting corners on the materials that matter most in a marine environment.

• Copper-nickel alloy (90/10 CuNi) condenser tube resists corrosion even in high-salinity waters like the Red Sea
• Dry, sloped aluminum drain pan prevents mold and mildew growth from standing condensate
• Low voltage diagnostic control module with labeled LEDs identifies high/low refrigerant pressure, freeze protection, and low water flow faults
• Laser-cut sheet metal components built to aircraft/military tolerances for a rigid, corrosion-resistant structure
• All 316 marine-grade stainless steel components throughout the unit

Flagship FM36CW Technical Specifications

These figures come directly from Flagship’s published spec sheet for this listing, and unlike several other chillers in the lineup, there’s no voltage/phase contradiction on this particular product page — the amperage figure is presented cleanly without a confusing dual-voltage notation.

• Cooling Capacity: 36,000 BTU
• Dimensions (L x W x H): 25″ x 15.5″ x 23″
• Amps (Cool): 16.4 A
• Phase: 1
• Cycle: 60 Hz
• Net Weight: 121 lbs

Why Choose the Flagship FM36CW

Flagship’s published warranty terms cover the condenser, chassis, compressor, and evaporator for five years parts and one year labor, with controls, pump, and blower covered for one year parts and labor. Unlike some other listings in this lineup, this product page’s specifications are internally consistent, which is worth noting given the discrepancies found elsewhere in Flagship’s chiller range.

What to Know Before Installing

• This chiller requires separately specified air handlers distributed to each independent zone — it is not a complete system on its own
• Ships via freight given the 121 lb weight; commercial delivery address required
• Professional installation and electrical planning is strongly recommended
