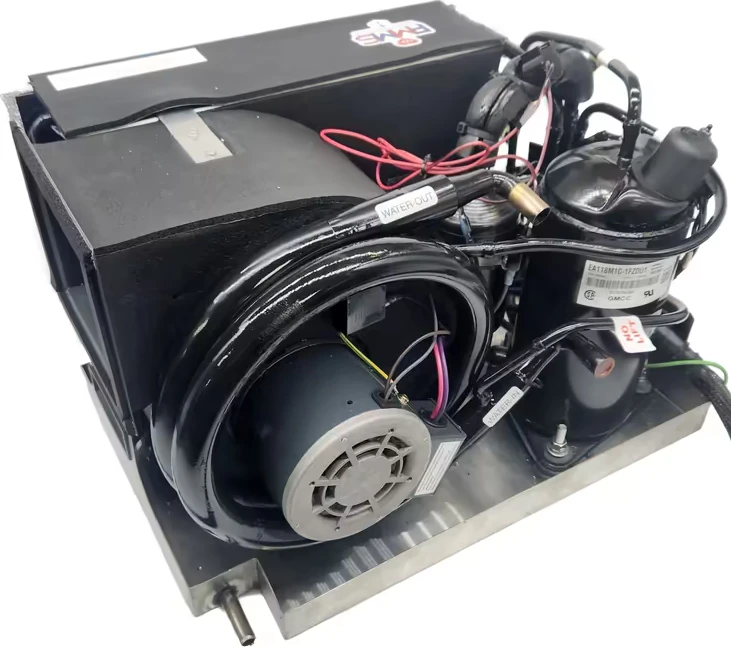

Mermaid M16 16500 BTU 220V Reverse Cycle Heat Pump

Mermaid M16 16500 BTU 220V Reverse Cycle Heat Pump

The Mermaid M16 heat pump provides 16,500 BTU reverse-cycle capacity with 220V power for marine cooling and heating applications.

16,500 BTU output handles medium cabins.
220V input guides electrical compatibility.
Reverse cycle supports heating operation.
Heat pump delivers dual-mode conditioning.
Marine installation requires matching power.

$2,457.00

Products are almost sold out

This product is about to run out

available only:

In Stock

Wholesale Price

Request for Quotation

Add to wishlist

Compare

SKU: M16RC220R Category: Marine Air Conditioners Brand: Mermaid Marine Air

SKU:

M16RC220R

Description

Not every boat runs 230V, and the 220V version of the Mermaid M16 Cool and Reverse Cycle brings the same 16,500 BTU cooling and heating platform to vessels wired to that slightly different voltage standard — same construction, same capacity, same installation requirements as its 230V counterpart.

Key Features of the Mermaid M16 (220V, Reverse Cycle)

Reverse cycle heating handles both cooling and heating from a single unit
304-18 gauge stainless steel construction, a heavier-duty spec than Mermaid’s compact M6/M9 models
Soft start and variable speed blower reduce startup strain and improve comfort precision
Mechanical freeze protection built into the redesigned control system
Available in right, left, or top air discharge configurations

Mermaid M16 Technical Specifications (220V, Reverse Cycle)

Model: M16 (Cool & Reverse Cycle)
Cooling Capacity: 16,500 BTU
Voltage: 220V
Running Amperage: 13.5 A
Cooling Capacity (Volume): 1,400 cubic feet
Recommended Boat Size: up to 40′ cruiser or 45′ sailboat
Unit Dimensions (L x W x H): 19.75″ x 13.5″ x 13.75″
Ducting: minimum three discharges recommended — one 8″x6″ grill within 6 feet of the unit, plus two 4″ round supply vents
Warranty: 5 years against material defects and workmanship

Why Choose the Mermaid M16 (220V)

Electrically, this performs identically to the 230V version at the same 13.5A running amperage — the voltage input is the real distinction, relevant mainly for boats built to or imported from markets using the 220V standard rather than the more common US 230V.

Confirm your vessel is genuinely wired for 220V rather than 230V before ordering, since the two aren’t always interchangeable depending on regional electrical conventions and what’s already installed onboard.

What to Know Before Installing

Plan for three discharge points: one 8″x6″ grill within 6 feet of the unit, plus two 4″ round vents
Pump is not included and must be sourced separately
Verify your vessel’s actual voltage standard (220V vs 230V) before ordering
All three air discharge positions are available on this model

Brand	Mermaid Marine Air Conditioning
Full Model SKU/Code	M-16-H / M16-220V-CHP (Reverse Cycle Variant)
Country of Origin	USA
AC System Type	Self-Contained Direct-Expansion (DX) Marine AC
Cooling Capacity	16,500 BTU/h (4.8 kW)
Heating Capacity	16,500 BTU/h (Reverse Cycle Heat Pump Mode)
Refrigerant Type	R-410A Pre-Charged Environmentally Graded Gas
Compressor Technology	High-Efficiency Hermetic Rotary Compressor
Operating Voltage / Frequency	220-240 Volts AC / 50 or 60 Hz Single Phase Platform
Full Load Amps / Running Current	Cooling Duty: 5.2 Amps / Heating Duty: 5.8 Amps at 230V Input Cycle
Locked Rotor Amps / Starting Current	26.0 Amps LRA Base Threshold
Recommended Circuit Breaker Rating	15 Amps Heavy-Duty Marine Breaker
Required Sea Water Flow Rate	250 GPH / 15.8 Liters per minute minimum loop
Sea Water Inlet/Outlet Size	5/8" (16mm) Outer Diameter Hose Barb Connections
Duct Display / Air Discharge Size	6.0" (152mm) High-Velocity Air Discharge Collar
Condenser Coil Material	Corrosion-Resistant Cupronickel (CuNi 90/10) Coaxial Heat Exchanger Tube
Control Interface Connectivity	Digital Programmable Thermostat Board (RJ12 Connected Sync Controller Panel)
Dimensions (L x W x H)	53.3 cm x 33.0 cm x 33.0 cm / 21.0" x 13.0" x 13.0"
Dry Weight	29.5 kg / 65.0 lbs (Includes high-strength marine composite condensation base pan)
Application	Primary climate control for mid-size vessel main salons, large master staterooms, express cruisers, and enclosed bridge configurations (30-42 ft boat lengths)
