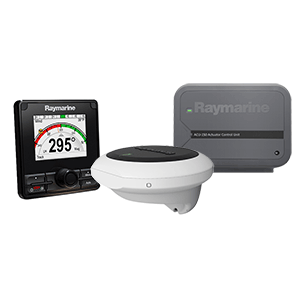

Raymarine EV-150 Evolution Core Pack – No Drive
The Raymarine EV-150 Evolution Core Pack delivers a high-performance steering foundation for US powerboats, featuring a 9-axis sensor without an included hydraulic or mechanical drive.
- Processor Type: ACU-150 Autopilot Control Unit
- Sensor Hub: EV-1 Evolution 9-Axis Sensor
- Control Head: p70Rs Color Display Unit
- Drive Note: Actuator Pump Required Separately
- Network Protocol: SeaTalkng NMEA 2000 Certified
Products are almost sold out
available only:
11In Stock
Description
Solid State AHRS and Sensor Core Analysis
Standard autopilot installations are frequently compromised by magnetic interference and sensor lag in heavy sea states. The Raymarine EV-150 Evolution Core Pack utilizes an EV-1 9-axis sensor to monitor vessel motion across all planes. This core pack provides the central processing logic without an included drive unit.
Connectivity is managed via the SeaTalkng protocol to synchronize the ACU-150 actuator control unit with the p70Rs display. The Evolution AI algorithm automatically adapts to vessel handling characteristics and sea conditions without manual calibration. The solid-state design ensures high-precision heading data with an IPX6 environmental rating for protection against water ingress.
Strategic Vessel Application
Designed for 12V hydraulic systems requiring an Evolution 9-axis sensor core and ACU-150 processor to power an existing drive.
Technical Key Features
- 9-axis EV-1 sensor provides aerospace grade heading
- Evolution AI algorithm eliminates manual calibration requirements
- SeaTalkng protocol ensures high speed data telemetry
- IPX6 rated housing resists heavy water spray
- ACU-150 supports 12V DC hydraulic drive units
- Solid state technology maintains stability without a compass
- Included p70Rs controller features sunlight readable color LCD
RAYMARINE EV-150 Evolution Core Pack - No Drive Specifications
| Drive Type | System Course Computer Core |
| Pump/Ram Capacity | Optimized for Type 1 Hydraulic Drives |
| Flow Rate / Speed | Ultra-Fast Evolution AI Response |
| Max Pressure | Electronic Logic Control |
| Cylinder Compatibility | 4.9 cu in - 14 cu in Pump Support |
| Operating Voltage | 12V DC System |
| Peak Current Draw | Drive Dependent (Max 15A) |
| Average Power Draw | 30mA (EV-1) / 132mW (p70Rs) |
| Motor Type | Digital Actuator Control Unit |
| Computer Compatibility | ACU-150 Included |
| Port Size / Thread | SeaTalkng / NMEA 2000 Link |
| Drive Connection | Hard-Wired to ACU Terminal |
| Rotation/Stroke Direction | Dynamic 9-Axis Monitoring |
| Mounting Type | Bulkhead (ACU) / Flush (Control) |
| Housing Material | UV-Stabilized Marine Polymer |
| Waterproof Rating | IPX6 / IPX7 Performance Grade |
| Operating Temperature | -25°C to +55°C Industrial Grade |
| Length (Overall) | 110 mm (p70Rs Head) |
| Width/Diameter | 115 mm (p70Rs Head) |
| Weight | 1.2 kg (Core Components) |
| Included Accessories | p70Rs, EV-1 Sensor, ACU-150, Cabling |
| Key Mechanical Feature | 9-Axis precision without compass calibration |
