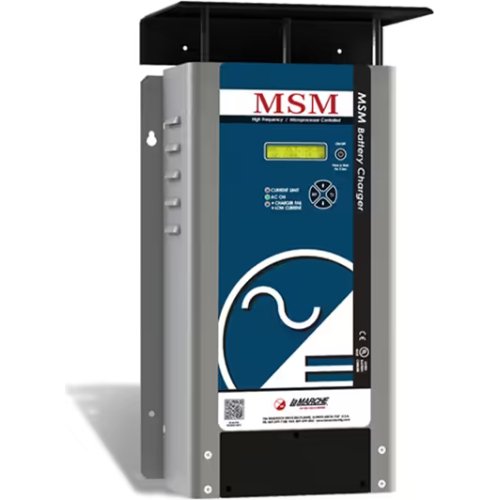

LA MARCHE – MSM Smart High Frequency Switchmode Charger – 24v – 50A

Description

TheLa Marche MSM 24V/50A Smart High Frequency Switchmode Chargerdelivers up to 50 amps of DC charging output for one 24V battery bank. It accepts 102V to 264V AC input and is specified for coastal vessels and engine-starting applications using lead-acid, AGM, or gel batteries.

This AC-powered charger uses a high-frequency switchmode charging design listed at over 85% efficiency. An LCD status interface provides local information, while supported temperature compensation, full AC/DC protection, and forced-air cooling support normal charging operation. The charger is NEMA 1 rated, intended for dry or indoor-style mounting, and is not ignition protected.

Key Specifications of the La Marche MSM 24V/50A Charger

• 50-amp charging output supports listed coastal-vessel and engine-starting applications.
• One charging bank is designed for one connected 24V battery bank.
• 24V DC output matches the listed destination battery-system voltage.
• 102V to 264V AC input supports compatible AC power sources.
• Lead-acid, AGM, and gel batteries are the listed compatible battery types.
• High-frequency switchmode charging provides the listed charging method.
• Over 85% efficiency identifies the listed conversion efficiency.
• An LCD status interface provides the listed local charger information.
• Temperature compensation supports the listed charging function.
• Forced-air cooling manages operating heat during charging.

Battery and Charging Compatibility

The La Marche MSM 24V/50A charger is listed for one 24V battery bank using lead-acid, AGM, or gel batteries. It converts compatible 102V to 264V AC input power into 24V DC output for battery charging.

In simple terms, connect the charger to an appropriate AC supply and it charges the 24V battery bank. It is not designed to draw charging power from another DC battery system, and lithium compatibility is not listed.

Installation and System Considerations

The charger accepts 102V to 264V AC input and provides up to 50 amps at 24V DC. It has NEMA 1 protection for dry or indoor-type mounting, supported temperature compensation, full AC/DC protection, and forced-air cooling. The unit is not ignition protected, measures 12.2 in. by 8.7 in. by 5.5 in., and weighs 12 lbs. Installation should follow the charger manual and the electrical requirements applicable to the vessel or facility.

Warranty and Support

Warranty information is not included in the listed product data. Review the manufacturer documentation for product details, setup, and warranty coverage.

Before Ordering the La Marche MSM 24V/50A Charger

Before ordering, confirm that your battery bank is 24V DC, uses lead-acid, AGM, or gel batteries, and requires a single-bank charger. Confirm that your available AC source is within the listed 102V to 264V range. Review the 50-amp output, NEMA 1 dry-location requirement, non-ignition-protected status, temperature-compensation support, dimensions, and installation space before purchase.
