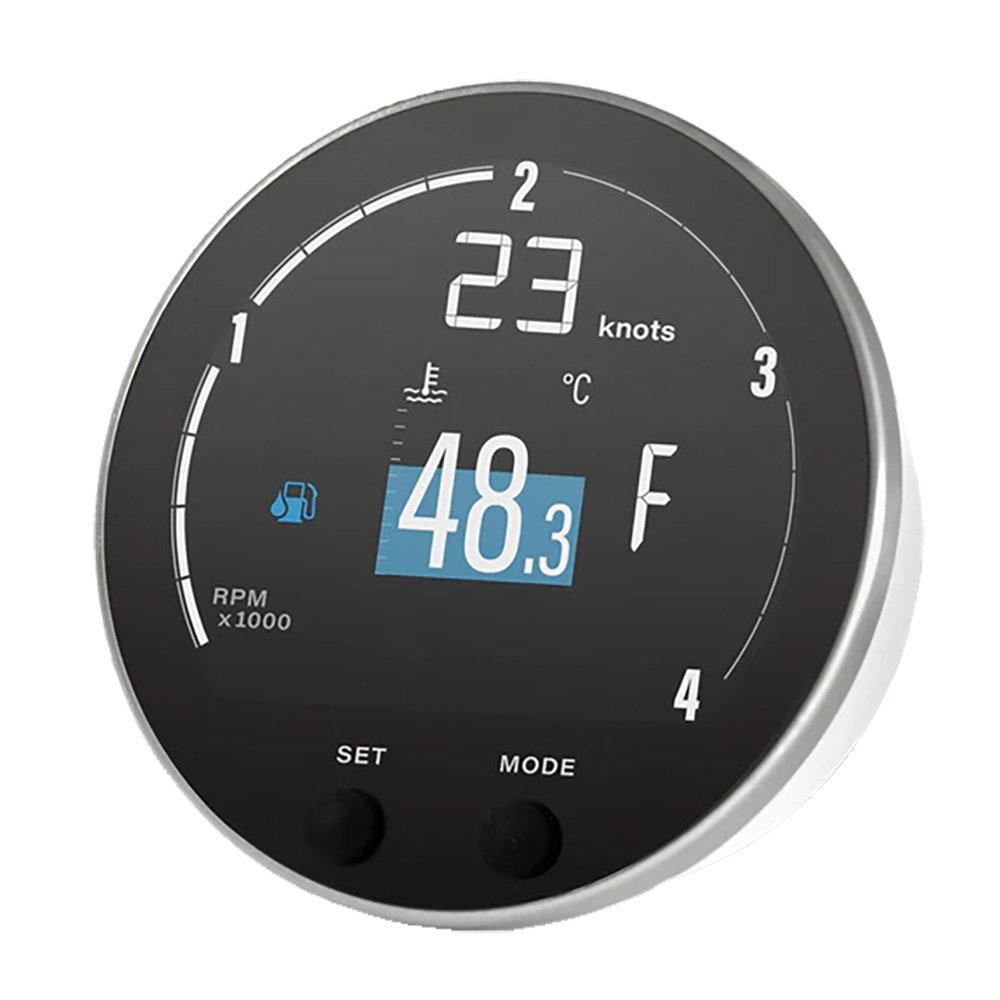

Veratron 85mm (3-3/8) VMH-35D Diesel Multifunction Gauge

Description

Diesel monitoring functions are combined in the Veratron VMH-35D Multifunction Gauge through an 85mm sunlight-readable color LCD. The integrated gateway converts analog information to NMEA 2000 data, while J1939 and NMEA 2000 support the listed Master and Slave configuration. RPM, temperature, fuel, pressure, engine load, and operating hours are the confirmed monitoring categories.

The VMH-35D is optimized for diesel applications and is Made in Switzerland with a 2-Year Limited Warranty. Verify the engine data source, analog sensors, network configuration, gauge cutout, and satellite arrangement before installation.

Key Specifications of the Veratron VMH-35D Diesel Multifunction Gauge

• 85mm gauge uses a sunlight-readable color LCD.
• Diesel engine operation is the listed application.
• J1939 supports the engine data connection.
• NMEA 2000 supports the networked gauge system.
• Integrated gateway converts analog data to NMEA 2000.
• RPM monitoring is supported.
• Temperature, fuel, and pressure monitoring are supported.
• Engine load and operating hours are listed.
• Master and Slave operation is specified.
• 2-Year Limited Warranty is specified.

Gauge Face, Readouts, and Controls

The VMH-35D uses an 85mm color LCD to present configured diesel engine information. RPM, temperature, fuel, pressure, engine load, and operating hours are listed monitoring functions. The supplied data does not confirm screen resolution, brightness value, alarm thresholds, touch operation, backlight colors, or displayed units.

Inputs, Sensors, Power, and Compatibility Considerations

Verify the J1939 source, NMEA 2000 network, analog sensors, Master or Slave configuration, engine data parameters, power, grounding, dashboard cutout, and rear clearance before installation. Compatibility with a named engine, sender, gateway, or PGN is not confirmed in the available product data.

Mounting and Fitment Considerations

Confirm the 85mm mounting hole, panel thickness, rear clearance, analog wiring, J1939 and NMEA 2000 connections, satellite gauge arrangement, and mounting hardware before installation.

Warranty and Support

The Veratron VMH-35D Diesel Multifunction Gauge includes a verified 2-Year Limited Warranty. These terms reflect currently available manufacturer information, and buyers should verify active warranty policies directly with the seller or manufacturer before purchase.

Before Ordering the Veratron VMH-35D Diesel Multifunction Gauge

Verify the 85mm size, diesel application, J1939 source, NMEA 2000 network, analog gateway, monitored parameters, Master or Slave function, mounting cutout, and package contents before ordering.
