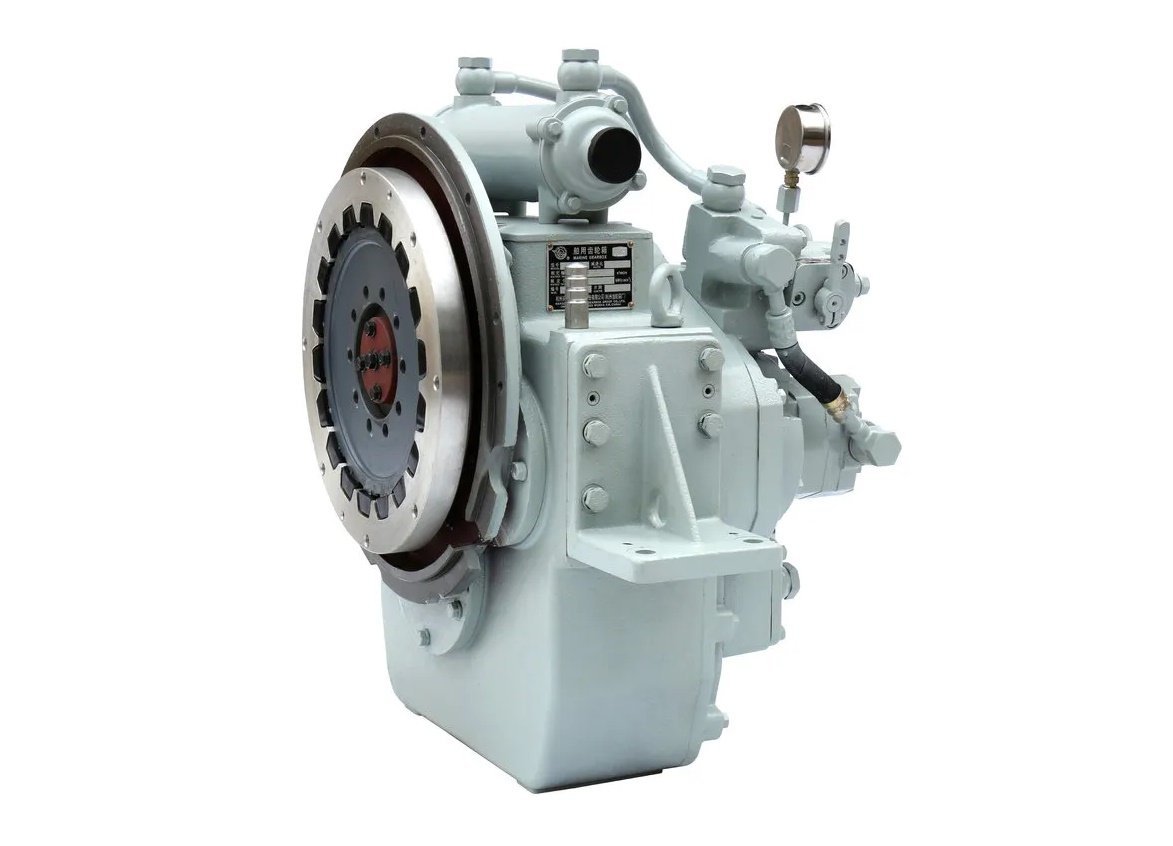

Advance 120C Heavy Duty Marine Gearbox 1.94:1 Reduction

Description

Select a 1.94:1 drivetrain reduction with the Advance 120C Heavy Duty Marine Gearbox 1.94:1 Reduction. This heavy-duty marine transmission is specified for medium-speed commercial craft, with a maximum input power rating of 295 HP (220 kW) at 2,500 RPM and a 2,500 RPM maximum input-speed limit.

Model 120C-194 uses a hydraulic multi-disc clutch and has a listed transmission capacity of 0.12 HP/RPM (0.088 kW/RPM). the listed data also identifies SAE 1, SAE 2, and SAE 3 bell housing standards, 4,496 lbf (20,000 N) maximum propeller thrust, and an 8.03-inch (204 mm) center distance.

Key Features of Advance 120C

• 1.94:1 reduction ratio provides the listed speed-reduction option for propulsion-system matching.
• 295 HP (220 kW) maximum input power at 2,500 RPM identifies the listed engine-input rating.
• 2,500 RPM maximum input speed defines the listed operating-speed limit.
• 0.12 HP/RPM (0.088 kW/RPM) transmission capacity provides the listed capacity specification.
• Hydraulic multi-disc clutch identifies the listed clutch design.
• SAE 1, SAE 2, and SAE 3 bell housing standards provide the listed engine-interface options.
• 4,496 lbf (20,000 N) maximum propeller thrust defines the listed thrust limit.
• 8.03-inch (204 mm) center distance identifies the listed drivetrain geometry dimension.
• 2.64-gallon (10-liter) oil capacity provides the listed service-fill quantity.
• CCS/ZC (ABS equivalent) classification is listed for this transmission.

Fitment and Propulsion Use

The Advance 120C-194 is specified for medium-speed commercial craft. It is intended for propulsion installations requiring a 1.94:1 reduction ratio and must be matched to the engine’s rated torque, operating RPM, bell housing interface, propeller-thrust requirement, and full drivetrain geometry. Confirm fitment using the engine model, serial number, rated torque, operating RPM, reduction ratio, and manufacturer drivetrain documentation before ordering.

Installation and Service Considerations

Confirm the required SAE 1, SAE 2, or SAE 3 bell housing and verify alignment between the engine, transmission, and propeller-shaft system. the listed data lists a 2.64-gallon oil capacity; follow the gearbox manufacturer’s documentation for the correct service lubricant and cooling arrangement. Follow the engine and gearbox manufacturer’s installation manuals and product instructions for alignment, lubrication, controls, cooling connections, and service procedures.

Before Ordering the Advance 120C

Verify that Advance model 120C-194 matches your medium-speed commercial-craft propulsion system. Confirm the 1.94:1 reduction ratio, 0.12 HP/RPM (0.088 kW/RPM) transmission capacity, 295 HP (220 kW) maximum input power at 2,500 RPM, 2,500 RPM maximum input speed, hydraulic multi-disc clutch, SAE 1/SAE 2/SAE 3 bell housing options, 4,496 lbf (20,000 N) maximum propeller thrust, 8.03-inch center distance, 2.64-gallon oil capacity, 23.0 x 21.2 x 26.0 inch dimensions, 485 lb dry weight, CCS/ZC (ABS equivalent) classification, and 1-year limited warranty. Confirm compatibility with your engine manufacturer’s documentation before purchase.
