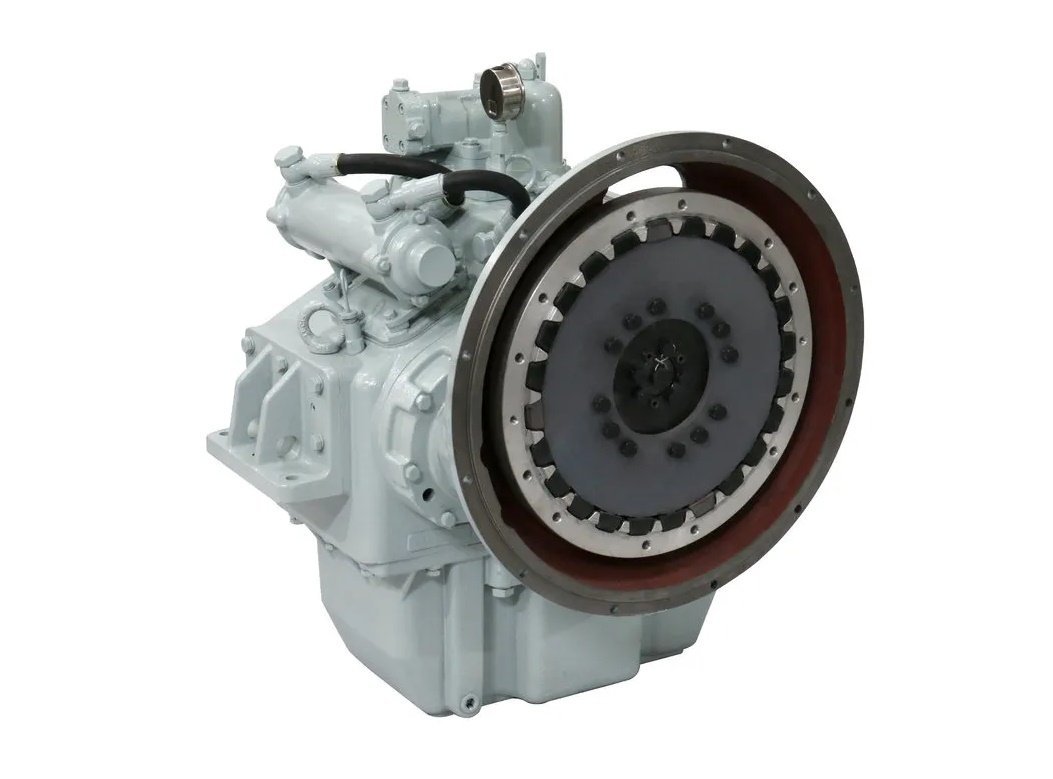

Advance 300 Heavy Duty Marine Gearbox 3.00:1 Reduction
Delivering a 3.00:1 reduction ratio with 737 HP capacity at 2400 RPM, the 650 kg Advance ADV300-300 heavy duty marine gearbox drives high-torque commercial propulsion systems on harbor tugboats effortlessly.
- 3.00:1 reduction steps down engine speed.
- Hydraulic multi-disc clutch cushions heavy shifts.
- Thrust bearing takes 50000 N loads.
- Center distance measures 270 mm precisely.
- Heavy cast iron body weighs 650kg.
Products are almost sold out
available only:
17In Stock
Description
Match high-torque propulsion with the Advance 300 Heavy Duty Marine Gearbox 3.00:1 Reduction. This heavy-duty marine transmission is specified for tugboats and high-torque propulsion, with a 3.00:1 reduction ratio, maximum input power of 737 HP (550 kW) at 2,400 RPM, and a maximum input speed of 2,400 RPM.
Model ADV300-300 uses a hydraulic multi-disc clutch and provides a listed transmission capacity of 0.31 HP/RPM (0.23 kW/RPM). Its supplied drivetrain specifications include SAE 0 and SAE 1 bell housing standards, 11,240 lbf (50,000 N) maximum propeller thrust, a 10.63-inch (270 mm) center distance, and a 4.22-gallon (16-liter) oil capacity.
Key Features of Advance 300
- 3.00:1 reduction ratio identifies the listed speed-reduction configuration for drivetrain matching.
- 737 HP (550 kW) maximum input power at 2,400 RPM defines the listed engine-input rating.
- 2,400 RPM maximum input speed identifies the listed operating-speed limit.
- 0.31 HP/RPM (0.23 kW/RPM) transmission capacity provides the listed capacity specification.
- Hydraulic multi-disc clutch identifies the listed clutch configuration.
- SAE 0 and SAE 1 bell housing standards define the listed engine-interface options.
- 11,240 lbf (50,000 N) maximum propeller thrust provides the listed thrust rating.
- 10.63-inch (270 mm) center distance supports drivetrain-geometry verification.
- 4.22-gallon (16-liter) oil capacity identifies the listed lubricant fill quantity.
- 31.5 x 28.5 x 38.0 inch dimensions and 1,433 lb dry weight support installation-space planning.
Fitment and Propulsion Use
The Advance ADV300-300 is specified for tugboats and high-torque propulsion. It supports propulsion systems requiring a 3.00:1 reduction ratio, subject to matching the engine’s rated torque, operating RPM, SAE 0 or SAE 1 bell housing interface, propeller-thrust requirement, and complete shaft arrangement. Confirm fitment using the engine model, serial number, rated torque, operating RPM, reduction ratio, and manufacturer drivetrain documentation before ordering.
Installation and Service Considerations
Verify the SAE 0 or SAE 1 bell housing interface and confirm that the vessel structure, engine alignment, and propeller-shaft geometry accommodate the 10.63-inch center distance, 31.5 x 28.5 x 38.0 inch housing, and 1,433 lb dry weight. the listed data lists a 4.22-gallon oil capacity. Follow the engine and gearbox manufacturer’s installation manuals and product instructions for alignment, lubrication, controls, cooling connections, and service procedures.
Before Ordering the Advance 300
Verify that Advance model ADV300-300 is correct for your tugboat or high-torque propulsion system. Confirm the 3.00:1 reduction ratio, 0.31 HP/RPM (0.23 kW/RPM) transmission capacity, 737 HP (550 kW) maximum input power at 2,400 RPM, 2,400 RPM maximum input speed, hydraulic multi-disc clutch, SAE 0/SAE 1 bell housing options, 11,240 lbf (50,000 N) maximum propeller thrust, 10.63-inch center distance, 4.22-gallon oil capacity, 31.5 x 28.5 x 38.0 inch dimensions, 1,433 lb dry weight, CCS/ZC approval, and 1-year limited warranty. Confirm compatibility with your engine manufacturer’s documentation before purchase.
Advance 300 Heavy Duty Marine Transmission - 3.00:1 Ratio
| Brand | Advance |
| Model / SKU | ADV300-300 |
| Country of Origin | China |
| US Support / Warranty | 1-Year Limited Warranty |
| Reduction Ratio | 3.00:1 |
| Transmission Capacity | 0.31 HP / RPM (0.23 kW / RPM) |
| Max Input Power | 737 HP (550 kW) @ 2400 RPM |
| Max Input Speed | 2400 RPM |
| Bell Housing Standard | SAE 0 / SAE 1 |
| Clutch Type | Hydraulic Multi-disc |
| Max Propeller Thrust | 11,240 LBF (50,000 N) |
| Center Distance | 10.63" (270 mm) |
| Oil Capacity | 4.22 Gallons (16 Liters) |
| Dry Weight | 1,433 lbs (650 kg) |
| Dimensions (LxWxH) | 31.5" x 28.5" x 38.0" |
| Classification / Certs | CCS / ZC Approved |
| Primary Application | Tugboats & High-Torque Propulsion |
