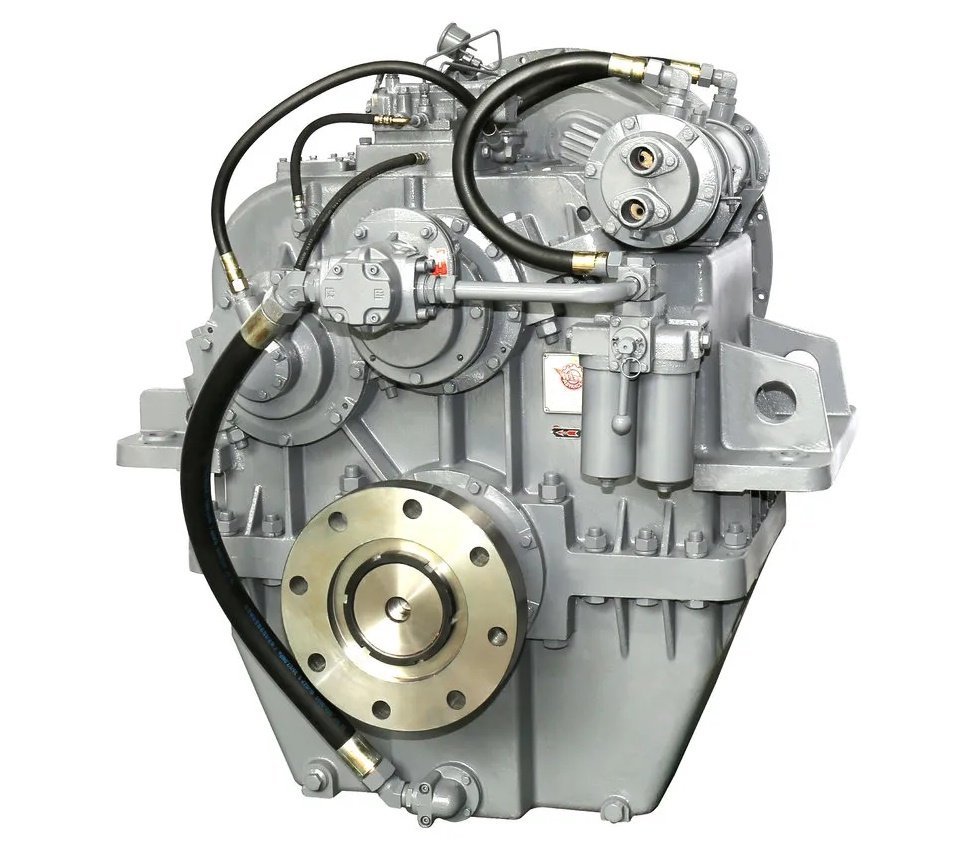

Advance HCD1000 Heavy Duty Marine Gearbox 4.39:1 Reduction
Advance HCD1000 Heavy Duty Marine Gearbox HCD1000-439 serves as a 4.39:1 deep-reduction system and marine propulsion transmission system for coastal freight field integration.
- Range Data: Absolute 4.39:1 Reduction Ratio.
- High 1080HP Precision Span: 800kW Power Capacity.
- Compliance: CCS ABS Grade Standards.
- Capacity: Heavy Load Hydraulic Records.
- Connection: SAE 00 Housing Position.
Products are almost sold out
available only:
13In Stock
Description
Advance HCD1000 4.39:1 Gearbox
Delivering exceptional power transfer for mid-to-high displacement vessels, the Advance HCD1000 serves as the definitive mechanical solution for a direct physical bridge to propulsion safety. As a premier Advance marine gearbox, this unit utilizes a 4.39:1 reduction to provide superior hydrodynamic engine response during critical maneuvering. The hardware architecture focuses on technical responsiveness, ensuring this Advance power system provides instantaneous clutch engagement for heavy-duty operations in restricted maritime waterways.
Technology-driven mechanical performance provides total protection through a heavy-duty cooling jacket that prevents thermal breakdown of transmission fluid. This Advance marine transmission features a simplified mechanical interface to facilitate rapid maintenance and inspection protocols. Reliability is reinforced by the high-torque internal framework and vibration-resistant mounting points. This unit is the premier choice for mariners prioritizing professional maritime power and maximum engine-to-propeller responsiveness.
Key Technical Specifications
- 4.39:1 rapid response reduction ratio.
- HCD1000 heavy duty transmission frame.
- Instantaneous hydraulic clutch engagement system.
- Integrated high capacity oil cooler.
- Simplified mechanical maintenance access points.
- High efficiency power transfer rating.
- Corrosion resistant external casing finish.
Advance HCD1000 Deep Case Marine Gearbox - 4.39:1 Ratio
| Brand | Advance |
| Model / SKU | HCD1000-439 |
| Country of Origin | China |
| US Support / Warranty | 1-Year Limited Warranty |
| Reduction Ratio | 4.39:1 |
| Transmission Capacity | 0.45 HP / RPM (0.33 kW / RPM) |
| Max Input Power | 1080 HP (800 kW) @ 2400 RPM |
| Max Input Speed | 2400 RPM |
| Bell Housing Standard | SAE 00 / SAE 0 |
| Clutch Type | Hydraulic Multi-disc (Heavy Load) |
| Max Propeller Thrust | 33,721 LBF (150,000 N) |
| Center Distance | 18.9" (480 mm) |
| Oil Capacity | 14.5 Gallons (55 Liters) |
| Dry Weight | 3,527 lbs (1600 kg) |
| Dimensions (LxWxH) | 48.5" x 42.0" x 55.0" |
| Classification / Certs | CCS / ABS Grade Materials |
| Primary Application | Heavy Duty Towing & Coastal Freight |
