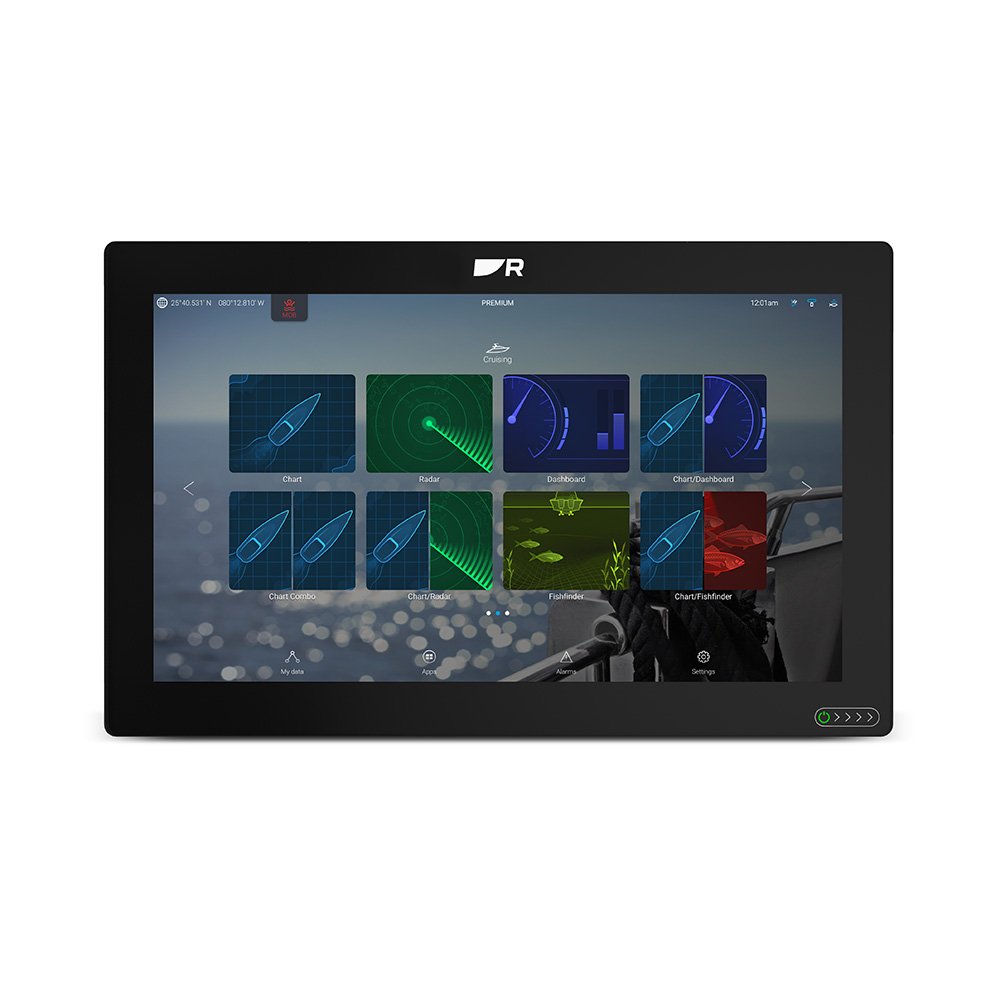

Raymarine Axiom 2 XL 16 – 15.6 Multifunction Display

Description

The Raymarine Axiom 2 XL 16 is the display-only option for a larger Raymarine helm where the owner already has a card reader, alarm, and accessory plan. Its 15.6-inch Full HD screen gives charts, radar, video, and vessel data room to stay visible together. This model fits premium cruisers, sportfishers, and larger center consoles that need more than a standard 12-inch display.

The HydroTough IPS touchscreen is rated at 1200 nits, so it is built for daylight helm use rather than a sheltered cabin only. LightHouse 4 is the operating platform, and chart support includes LightHouse, Navionics, and C-MAP. Two RayNet ports, HDMI input/output, USB, NMEA 2000, WiFi, and Bluetooth cover the key network connections. Fishfinding still requires CP Series network sonar and a separately selected transducer.

Key Features

• 15.6-inch HydroTough IPS touchscreen – Gives a larger helm plenty of room for chart and system pages.
• 1920 x 1080 Full HD resolution – Keeps detailed pages sharp during split-screen use.
• 1200-nit brightness – Helps with daylight readability.
• LightHouse, Navionics, and C-MAP support – Lets the owner choose compatible chart coverage.
• Two RayNet ports, HDMI, USB, NMEA 2000, WiFi, and Bluetooth – Supports a connected Raymarine installation.

Who Is This For?

This display-only glass bridge MFD suits offshore boats and large cruisers with an existing Raymarine system. It is not ideal for buyers who need included accessory hardware, a sounder, or a transducer.

Compatibility

Confirmed compatibility includes LightHouse 4, LightHouse, Navionics, C-MAP, CP Series network sonar, NMEA 2000 through DeviceNet, two RayNet ports, HDMI input/output, USB, WiFi, and Bluetooth. No specific radar, autopilot, or transducer model is named. No named incompatible system was provided.

Technical Specifications

• Brand: Raymarine
• Model: Axiom 2 XL 16, E70598
• Display: 15.6-inch HydroTough IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Processor: Six-core high-performance processor
• Sonar: CP Series network sonar support
• Networking: Two RayNet, HDMI input/output, USB, NMEA 2000, WiFi, Bluetooth
• Power: 45W maximum
• Water rating: IPX6 and IPX7

Warranty & Support

Raymarine provides a 3-year warranty with registration. The supplied specifications do not state exclusions or service procedures.

The base Axiom 2 XL 16 is the right choice when the boat already has or does not need the RCR-SD reader, alarm, and cable included with the bundle. The screen and core network platform are the same. The trade-off is fewer included accessories, so it works best in a custom Raymarine bridge installation.
