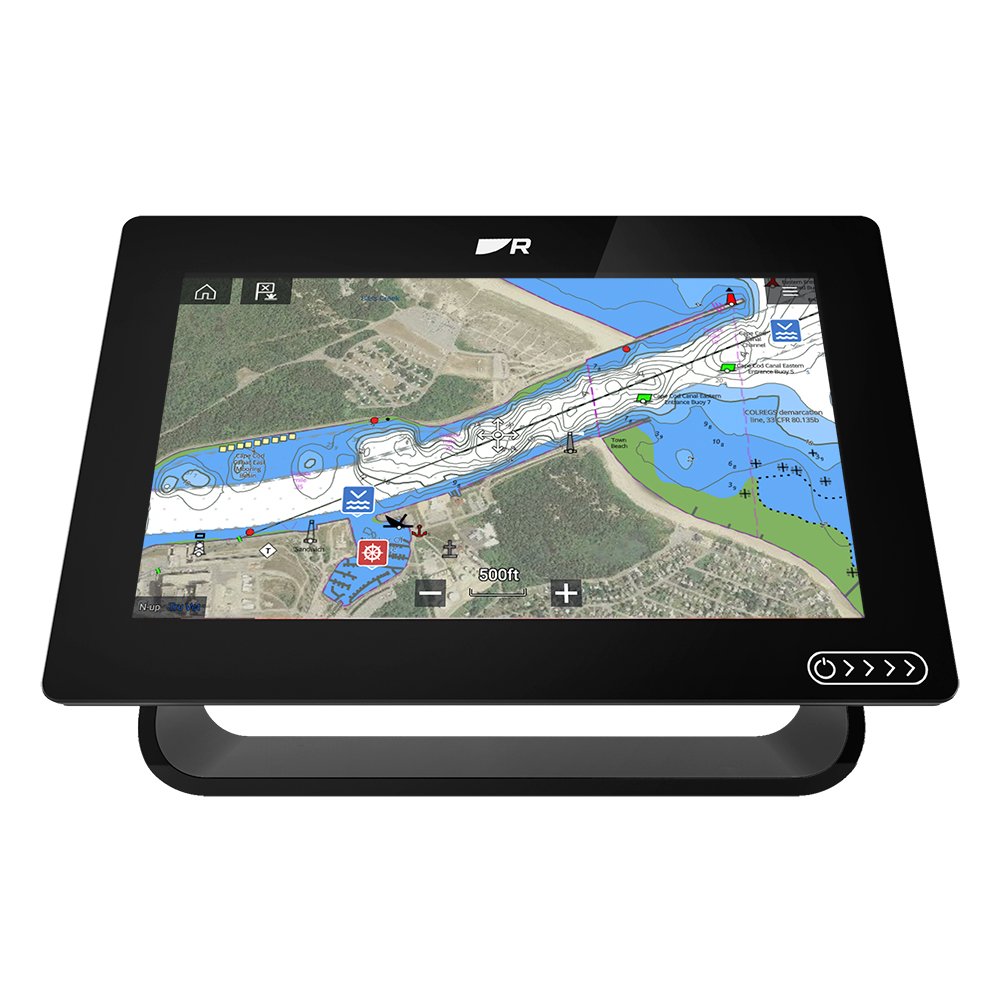

Raymarine Axiom+ 9 – 9 MFD Chartplotter

Description

The Raymarine Axiom+ 9 is a 9-inch HydroTough nano-coated IPS touchscreen with 1280 x 720 resolution, 1500-nit brightness, LightHouse 3/4 operating systems, and network sonar support through CP Series or external modules. LightHouse, Navionics, and C-MAP compatibility provide chart flexibility, while NMEA 2000, RayNet Ethernet, WiFi, and Bluetooth support a compact marine electronics network.

Key Features

• 9-inch HydroTough nano-coated IPS touchscreen – Provides a bright, durable display for charts and marine system data.
• 1280 x 720 WXGA resolution – Shows useful chart detail in a compact MFD.
• 1500-nit brightness – Provides the stated high brightness for exposed daylight helms.
• Network sonar through CP Series and external modules – Allows sonar expansion without relying on the display alone.
• LightHouse, Navionics, and C-MAP compatibility – Provides chart-source flexibility for different operating areas.

Who Is This For?

This unit suits coastal fishing boats, cruisers, center consoles, and owners who need a bright 9-inch Raymarine MFD with flexible chart support. Its compact footprint is easier to fit than the large Garmin glass helm displays.

It is not ideal for buyers seeking a complete fishfinder bundle because external sonar hardware is required. The single RayNet port also provides less network capacity than premium multi-port glass helm systems.

Compatibility

Confirmed interfaces include network sonar through CP Series or external modules, LightHouse, Navionics, C-MAP, NMEA 2000 through DeviceNet, one RayNet Ethernet port, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or specific transducer compatibility. No named incompatible system was provided; verify Raymarine sonar and network requirements before installation.

Technical Specifications

• Brand: Raymarine
• Model: Axiom+ 9, E70636
• Display: 9-inch HydroTough nano-coated IPS touchscreen
• Resolution: 1280 x 720 WXGA
• Brightness: 1500 nits
• Processor: Quad-core processor
• Sonar: Network sonar through CP Series or external modules
• Mapping: LightHouse, Navionics, C-MAP compatible
• Networking: One RayNet Ethernet, NMEA 2000, WiFi, Bluetooth
• Warranty: 3 years with registration

Warranty & Support

Raymarine provides a 3-year warranty with registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom+ 9 is the compact marine MFD choice here, offering a 1500-nit display and chart-source flexibility in a much smaller package than the Garmin and Simrad glass helm systems. Its trade-off is network and sonar scale: external sonar hardware is required, and there is only one RayNet port. Choose it for a compact Raymarine installation rather than a large integrated bridge.
