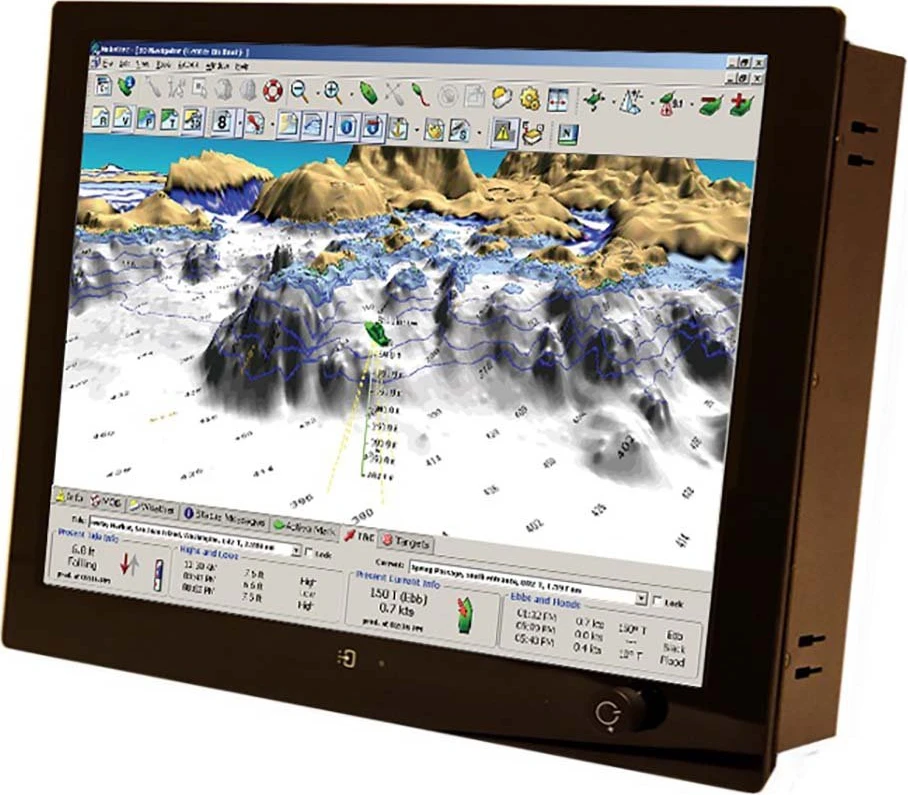

Seatronx 24 Wide Screen Sunlight Readable Touch Screen Display

Description

The Seatronx SRT-24W is a 24-inch sunlight-readable marine monitor for a flybridge, glass bridge, or exposed helm where a standard office screen quickly becomes difficult to see. It displays output from a separate chartplotter, radar, camera, or computer rather than providing navigation software itself. The wide Full HD format suits modern marine source systems.

At 1000 nits, the panel is built for daylight viewing, and the optically bonded construction helps keep the image readable in changing light. HDMI, DVI-D, VGA, and composite video provide useful source flexibility, while USB carries touch data. The isolated 9-34V DC input works on 12V and 24V boats. The front panel is IP68 protected, but this remains a monitor only, with no GPS, sonar, charting, or NMEA interface built in.

Key Features

• 24-inch widescreen display – Provides a broad glass bridge workspace for charts, radar, cameras, and computers.
• 1920 x 1080 Full HD resolution – Matches modern widescreen marine source systems.
• 1000-nit sunlight-readable brightness – Helps the image remain visible in direct daylight.
• Optically bonded PCAP touchscreen – Combines touch control with reduced reflection at the panel.
• HDMI, DVI-D, VGA, composite video, and USB touch – Accepts varied source and control connections.

Who Is This For?

This sunlight-readable marine monitor suits exposed flybridges, glass bridge consoles, and outdoor helm stations on larger boats. It is not ideal for a small pilothouse or a buyer wanting an all-in-one chartplotter, because navigation and sonar come from a separate source system.

Compatibility

Confirmed connections include HDMI, DVI-D, VGA, composite video, and USB for touch. The supplied information does not identify a specific chartplotter, radar, sonar, NMEA 2000, or NMEA 0183 system. No named incompatible system was provided; verify source resolution, touch-driver, power, and mounting requirements before installation.

Technical Specifications

• Brand: Seatronx
• Model: SRT-24W, SRT-24W-1080
• Display: 24-inch widescreen LED with PCAP touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1000 nits
• Video inputs: HDMI, DVI-D, VGA, composite video
• Touch interface: USB
• Power: 9-34V isolated DC; 3.5A at 24VDC
• Water rating: IP68 front panel
• Weight: 9.98kg

Warranty & Support

Seatronx provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The SRT-24W is the larger sunlight-readable marine display for a helm that needs a wide Full HD picture. It offers better outdoor visibility than the PHT-19, but requires more console space and still depends on an external source for all navigation functions. Choose it for a glass bridge or flybridge monitor, not a standalone MFD.
