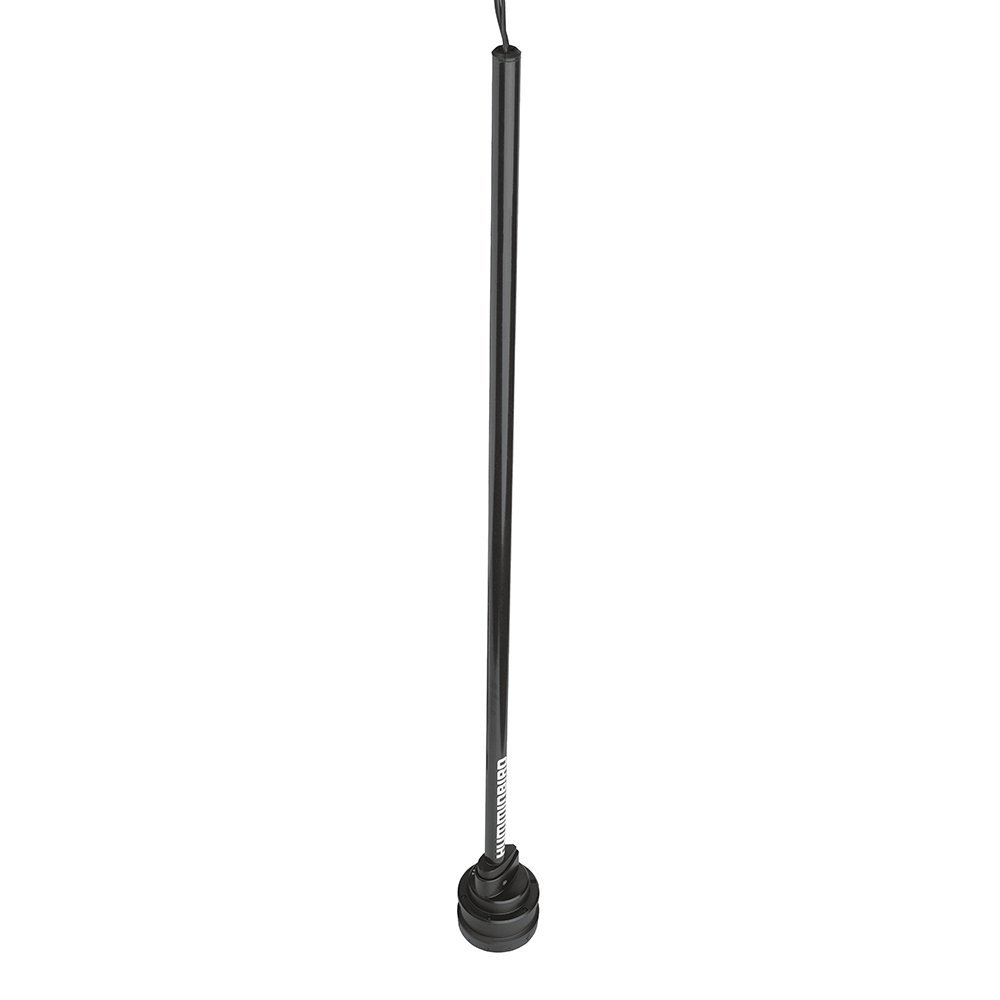

Humminbird MEGA 360 Imaging 50 NM – No Mount

Humminbird MEGA 360 | 50-Inch No-Mount Flexibility

Humminbird MEGA 360 Imaging 50 NM addresses the requirement for custom-engineered mounting solutions by providing the 50-inch shaft and 1.2 MHz transducer head without a pre-defined bracket. By utilizing MEGA Imaging+ frequencies, the system mitigates the situational “blindness” of traditional sonar by providing a 360-degree sweep with a 125-foot radius of structural detail. This architectural flexibility ensures that boaters with non-standard bows or specialized mounting needs can integrate high-resolution scanning without being restricted by factory bracket geometry.

During the custom installation of the 50 NM unit, it is vital to ensure the shaft remains perfectly vertical and rigid to prevent image distortion caused by underwater drag or vibration. In demanding offshore environments, the system demands a high-speed Ethernet connection to a compatible APEX, SOLIX, or HELIX unit to process the massive data flow of 1050-1175 kHz sonar beams. System performance depends on precise depth adjustment; don’t mount the transducer head too deep, as excessive drag at high speeds can stress the custom mounting hardware and shaft integrity.

Technical Specifications

• Coverage: Full 360-degree rotation; 125ft radius.
• Frequency: MEGA Imaging+ (1.2 MHz range).
• Shaft: 50-inch specialized composite material.
• Configuration: No mount included for custom installs.
• Networking: Ethernet connection to One-Boat Network.
• Imaging: Photo-like clarity of fish and structure.
• Compatibility: SOLIX, HELIX G3N/G4N, and APEX.
