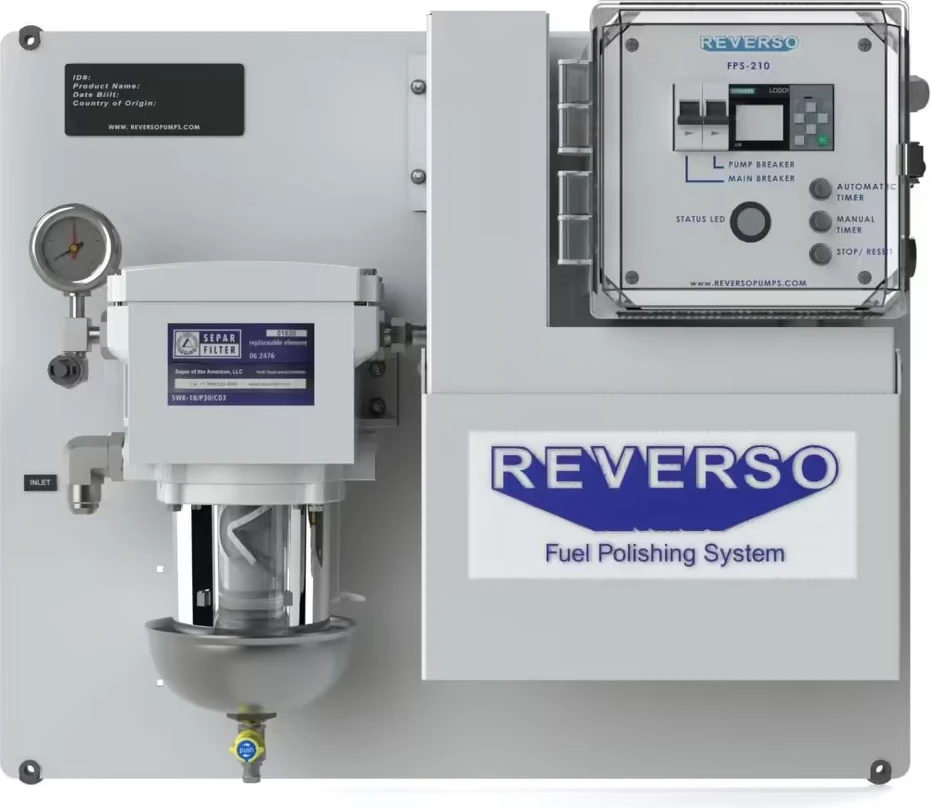

Reverso FPS 210 Fuel Polishing System – 220V – 210 GPH – Mechanical Controller

Description

Run high-flow fuel polishing manually with the Reverso FPS 210 Fuel Polishing System – 220V – 210 GPH – Mechanical Controller. This manual-operation high-flow fuel polishing and transfer system is specified for industrial diesel generator arrays, basic marine fuel tanks, and fuel polishing docks, with continuous processing rated at 210 GPH (795 LPH/3.5 GPM).

The FPS-210-220V-M operates on 220V AC, 50/60Hz single-phase power and uses a Racor 1000 Series compatible turbine separation chamber. A heavy-duty manual on/off switch provides continuous constant-flow operation, while the integrated liquid-filled differential vacuum and pressure gauge gives the listed monitoring instrumentation.

Key Features of Reverso FPS 210

• Manual-operation high-flow fuel polishing and transfer system supports the listed diesel fuel-service applications.
• 210 GPH (795 LPH/3.5 GPM) continuous processing capacity identifies the listed fuel-processing rate.
• 220V AC, 50/60Hz single-phase power defines the required electrical supply.
• Racor 1000 Series compatible turbine separation chamber identifies the listed primary filtration-core compatibility.
• Heavy-duty manual on/off switch provides the listed controller interface.
• Continuous constant-flow mode defines the listed operating mode.
• Liquid-filled differential vacuum and pressure gauge provides the specified monitoring instrumentation.
• Heavy-duty self-priming internal gear pump provides the listed pump technology.
• 1/2-inch male flare SAE 45-degree inlet and outlet ports identify the plumbing connection style.
• Measures 20.5 x 14.5 x 8.5 inches (521 x 368 x 216 mm) and has a dry weight of 40.0 lb (18.1 kg).

Fitment and Maintenance Use

The Reverso FPS-210-220V-M is specified for industrial diesel generator arrays, basic marine fuel tanks, and fuel polishing docks. It supports manual fuel polishing and transfer using 220V AC, 50/60Hz single-phase power and a Racor 1000 Series compatible turbine separation chamber. Confirm fitment using the engine model, serial number, and manufacturer service documentation before ordering.

Installation and Service Considerations

Verify that the site has compatible 220V AC, 50/60Hz single-phase power and plumbing that matches the 1/2-inch male flare SAE 45-degree inlet and outlet ports. Confirm that the mounting location accommodates the 20.5 x 14.5 x 8.5 inch enclosure. Use the manual on/off switch and monitor the integrated gauge according to the product instructions. Follow the engine manufacturer’s service manual and the product instructions for installation and service procedures. Verify the engine model and serial number before service.

Before Ordering the Reverso FPS 210

Confirm that Reverso Pumps part number FPS-210-220V-M is suitable for your industrial diesel generator array, marine fuel tank, or fuel polishing dock. Verify the 220V AC, 50/60Hz single-phase power requirement, 210 GPH (795 LPH/3.5 GPM) continuous processing capacity, manual constant-flow operation, Racor 1000 Series compatible turbine separation chamber, liquid-filled differential vacuum and pressure gauge, self-priming internal gear pump, 1/2-inch male flare SAE 45-degree ports, IP55 splashproof aluminum enclosure, and 20.5 x 14.5 x 8.5 inch installation size. Confirm compatibility with your engine manufacturer’s documentation before purchase.
