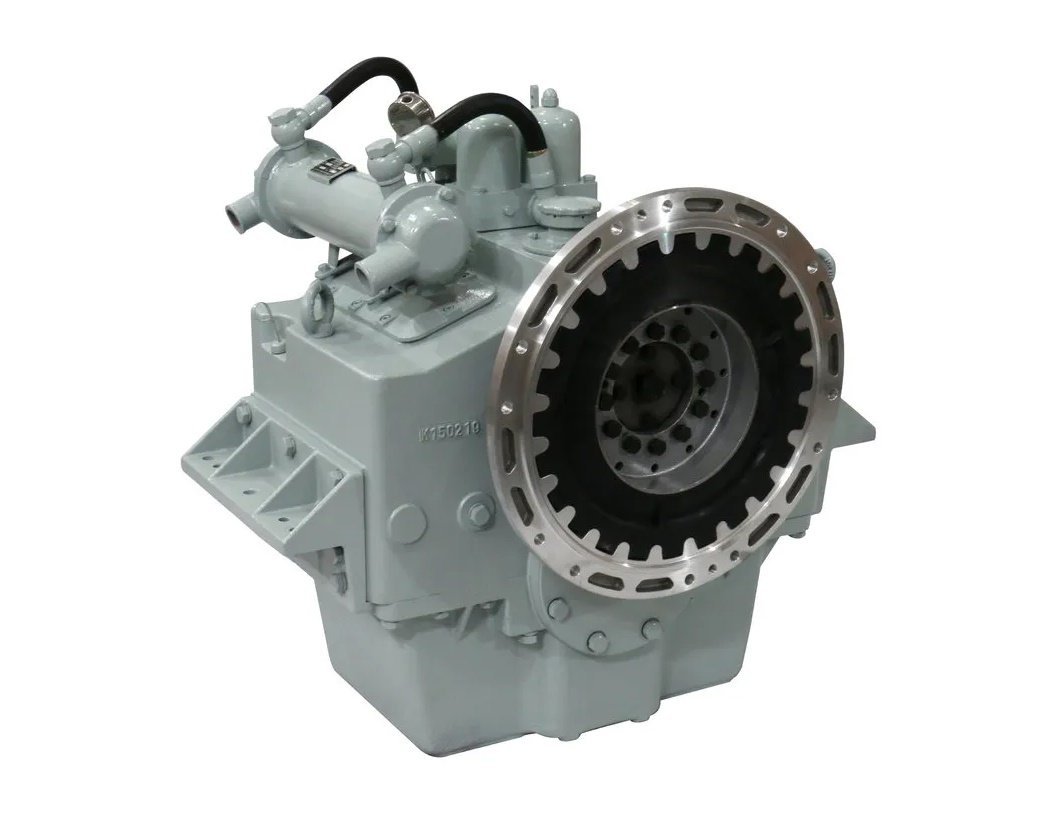

Advance HC400 Heavy Duty Marine Gearbox 3.42:1 Reduction
Engineered for vessel repower projects, the 820 kg Advance HC400-342 inboard boat transmission gearbox steps down 810 HP at 1800 RPM with a 3.42:1 ratio to drive commercial propeller shafts.
- 3.42:1 ratio matches commercial propeller setups.
- 810 HP rating supports high-output diesels.
- Hydraulic clutch locks smoothly under throttle.
- Thrust bearing handles 82000 N loads.
- Compact transmission case weighs 820 kg.
Products are almost sold out
available only:
8In Stock
Description
Plan a marine repower with the Advance HC400 Heavy Duty Marine Gearbox 3.42:1 Reduction. This heavy-duty marine transmission is specified for marine propulsion and repower projects, with a 3.42:1 reduction ratio, maximum input power of 810 HP (604 kW) at 1,800 RPM, and a maximum input speed of 1,800 RPM.
Model HC400-342 combines a hydraulic multi-disc clutch with a listed transmission capacity of 0.45 HP/RPM (0.33 kW/RPM). the listed specifications include SAE 0 and SAE 1 bell housing standards, 18,434 lbf (82,000 N) maximum propeller thrust, a 10.39-inch (264 mm) center distance, and a 6.07-gallon (23-liter) oil capacity.
Key Features of Advance HC400
- 3.42:1 reduction ratio provides the listed speed-reduction configuration for matching the drivetrain design.
- 810 HP (604 kW) maximum input power at 1,800 RPM identifies the listed engine-input rating.
- 1,800 RPM maximum input speed defines the listed operating-speed limit.
- 0.45 HP/RPM (0.33 kW/RPM) transmission capacity provides the listed capacity specification.
- Hydraulic multi-disc clutch is specified for the transmission clutch arrangement.
- SAE 0 and SAE 1 bell housing standards identify the listed engine-interface options.
- 18,434 lbf (82,000 N) maximum propeller thrust defines the listed thrust capacity.
- 10.39-inch (264 mm) center distance identifies the listed drivetrain geometry measurement.
- 6.07-gallon (23-liter) oil capacity provides the listed lubricant quantity.
- CCS approval is listed for this marine transmission.
Fitment and Propulsion Use
The Advance HC400-342 is specified for marine propulsion and repower projects. It supports a drivetrain layout requiring a 3.42:1 reduction ratio, with engine input limited to the listed 810 HP at 1,800 RPM rating and 1,800 RPM maximum input speed. Confirm fitment using the engine model, serial number, rated torque, operating RPM, reduction ratio, and manufacturer drivetrain documentation before ordering.
Installation and Service Considerations
For a repower installation, verify the required SAE 0 or SAE 1 bell housing connection, engine alignment, shaft geometry, mounting structure, and propeller-thrust requirement before installation. Plan for the 25.2 x 39.8 x 35.0 inch housing, 1,807 lb dry weight, and 10.39-inch center distance. The listed oil capacity is 6.07 gallons. Follow the engine and gearbox manufacturer’s installation manuals and product instructions for alignment, lubrication, controls, cooling connections, and service procedures.
Before Ordering the Advance HC400
Verify that Advance model HC400-342 matches your marine propulsion or repower project. Confirm the 3.42:1 reduction ratio, 0.45 HP/RPM (0.33 kW/RPM) transmission capacity, 810 HP (604 kW) maximum input power at 1,800 RPM, 1,800 RPM maximum input speed, hydraulic multi-disc clutch, SAE 0/SAE 1 bell housing options, 18,434 lbf (82,000 N) maximum propeller thrust, 10.39-inch center distance, 6.07-gallon oil capacity, 25.2 x 39.8 x 35.0 inch dimensions, 1,807 lb dry weight, CCS approval, and 1-year limited warranty. Confirm compatibility with your engine manufacturer’s documentation before purchase.
Advance HC400 Heavy Duty Marine Transmission - 3.42:1 Ratio
| Brand | Advance |
| Model / SKU | HC400-342 |
| Country of Origin | China |
| US Support / Warranty | 1-Year Limited Warranty |
| Reduction Ratio | 3.42:1 |
| Transmission Capacity | 0.45 HP / RPM (0.33 kW / RPM) |
| Max Input Power | 810 HP (604 kW) @ 1800 RPM |
| Max Input Speed | 1800 RPM |
| Bell Housing Standard | SAE 0 / SAE 1 |
| Clutch Type | Hydraulic Multi-disc |
| Max Propeller Thrust | 18,434 LBF (82,000 N) |
| Center Distance | 10.39" (264 mm) |
| Oil Capacity | 6.07 Gallons (23 Liters) |
| Dry Weight | 1,807 lbs (820 kg) |
| Dimensions (LxWxH) | 25.2" x 39.8" x 35.0" |
| Classification / Certs | CCS Approved |
| Primary Application | Marine Propulsion & Repower Projects |
