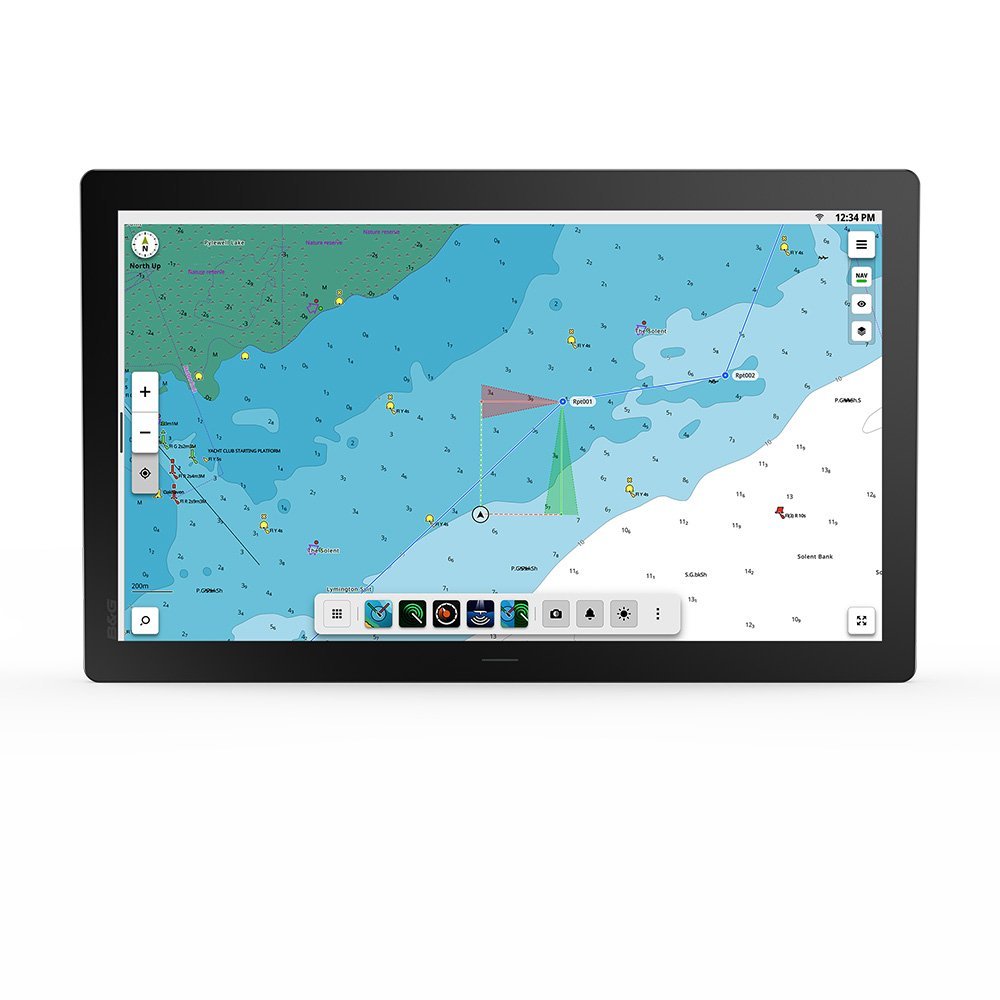

B&G Zeus SRX 22 MFD w/Worldwide Basemap

Description

The B&G Zeus SRX 22 is a 22-inch integrated glass helm sailing MFD with a 1920 x 1080 SolarMAX HD IPS touchscreen, Zeus S OS, Worldwide Reference Basemap, and support for S5100 and SonarHub network sonar modules. Its three Ethernet ports, HDMI output, video inputs, NMEA 2000, and J1939 connections suit large offshore sailing yachts, luxury cruisers, and commercial vessels with a full glass bridge.

Key Features

• 22-inch SolarMAX HD IPS touchscreen – Provides a very large workspace for sailing charts, instruments, radar, video, and vessel data.
• 1920 x 1080 Full HD resolution – Shows detailed navigation and system information across the large display.
• Zeus S OS – Provides the stated sailing-focused software platform for the SRX MFD.
• S5100 and SonarHub network sonar support – Allows sonar expansion through compatible external modules.
• Three Ethernet, HDMI output, two video inputs, NMEA 2000, and J1939 – Supports an integrated offshore glass helm system.

Who Is This For?

This model suits large offshore sailing yachts, luxury cruisers, commercial vessels, and 35- to 80-foot boats with a dedicated glass bridge. The 22-inch screen is useful when charts, radar, cameras, engine data, and sailing information must remain visible together.

It is not ideal for a small sailboat or buyers seeking a simple standalone chartplotter. Sonar requires external S5100 or SonarHub modules, and the large display needs careful cutout and power planning.

Compatibility

Confirmed features include Zeus S OS, Worldwide Reference Basemap, S5100, SonarHub, NMEA 2000, J1939, three Ethernet ports, HDMI output, two video inputs, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar models, autopilot, or specific transducer compatibility. No named incompatible system was provided; verify B&G sailing, sonar, radar, and video requirements before installation.

Technical Specifications

• Brand: B&G Navico
• Model: Zeus SRX 22 S-Series, 000-16105-001
• Display: 22-inch SolarMAX HD IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Operating system: B&G Zeus S OS
• Charts: Worldwide Reference Basemap, C-MAP optimized
• Sonar compatibility: S5100 and SonarHub network modules
• Networking: Three Ethernet, HDMI output, two video inputs, NMEA 2000, J1939
• Waterproof rating: IPX6 and IPX7
• Warranty: 2-year standard warranty

Warranty & Support

B&G provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The Zeus SRX 22 is the large-format sailing glass helm choice here, providing more screen area than the 16-inch Zeus SRX and Zeus 3S displays. Its main trade-off is the system scale: it needs a large vessel, external sonar modules, and a carefully designed network. Choose it for a luxury yacht or commercial sailing bridge, not a compact cruising helm.
