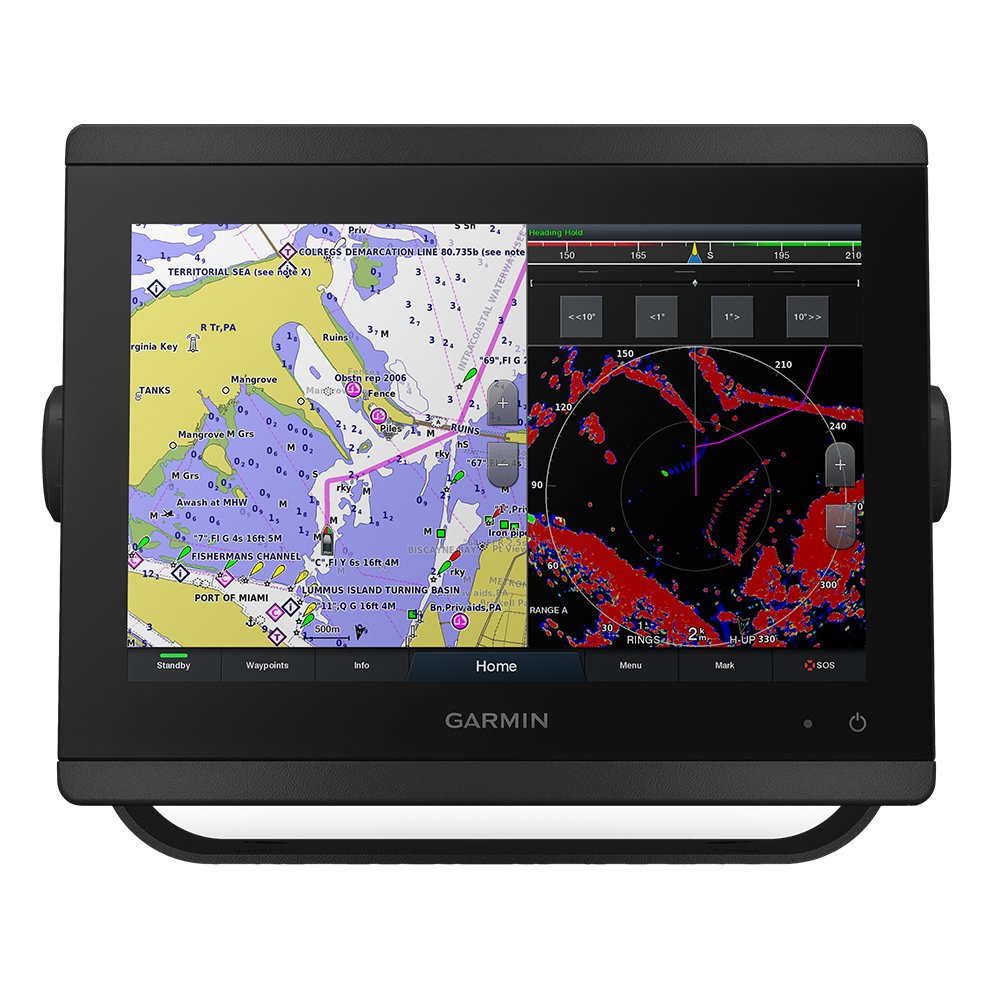

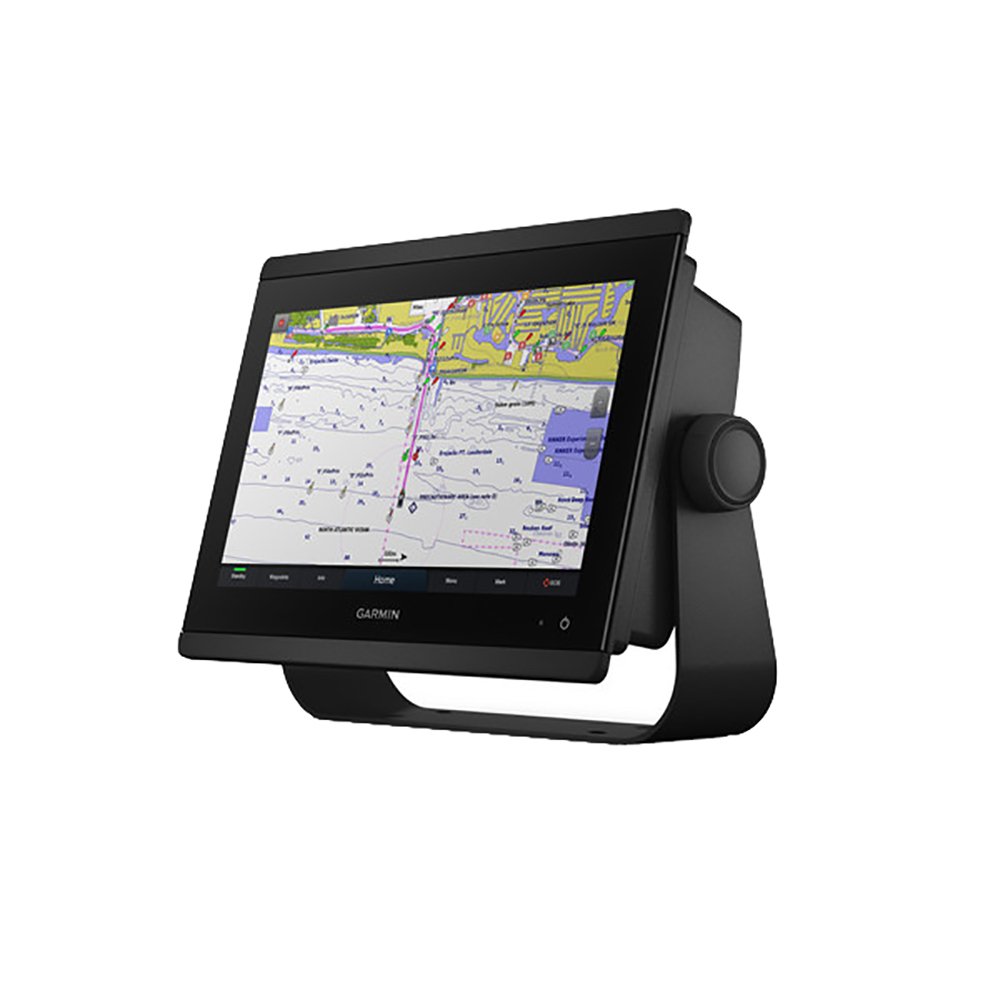

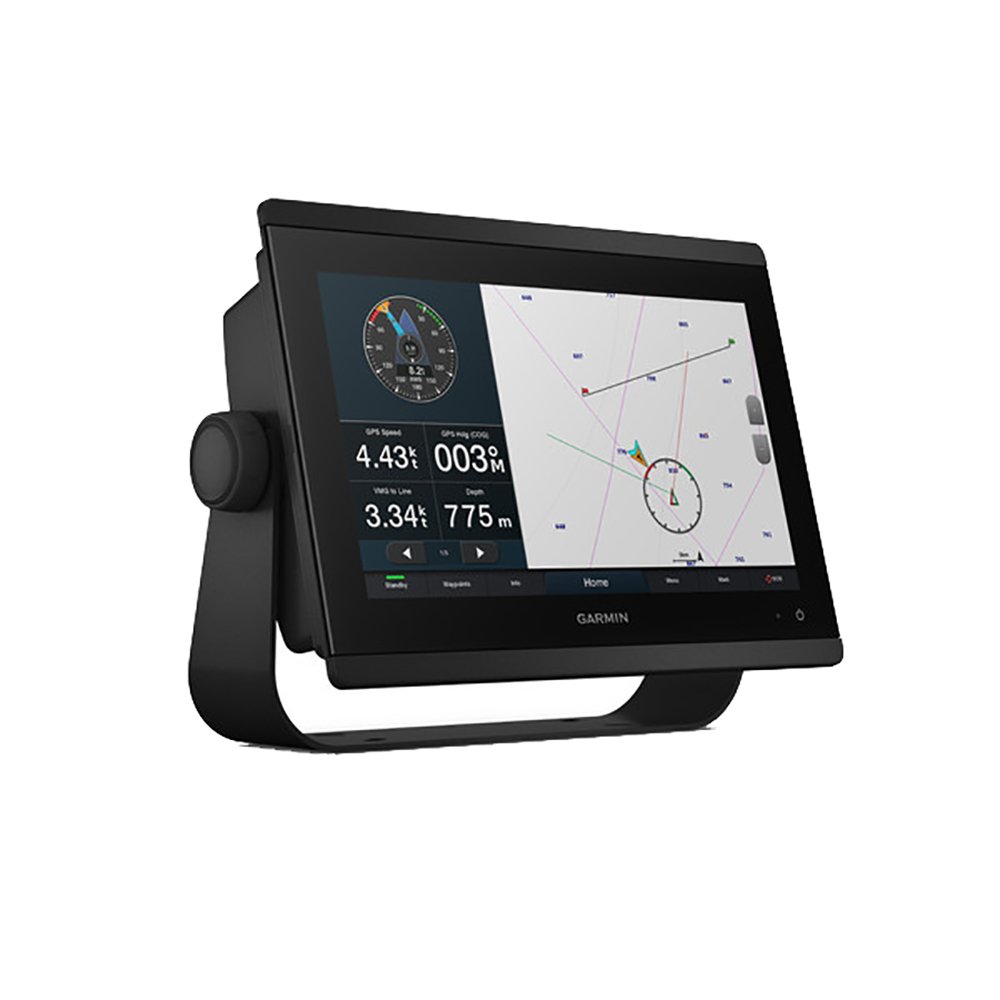

Garmin GPSMAP 8412 12 Chartplotter w/Worldwide Basemap

Description

The Garmin GPSMAP 8412 is a 12.1-inch premium chartplotter for a boat that needs a sharp, bright main display but uses separate network sonar. Its 1920 x 1200 IPS screen offers more vertical chart space than a typical Full HD display, which is helpful when radar, engine data, or video are sharing the helm. It includes a Worldwide Basemap.

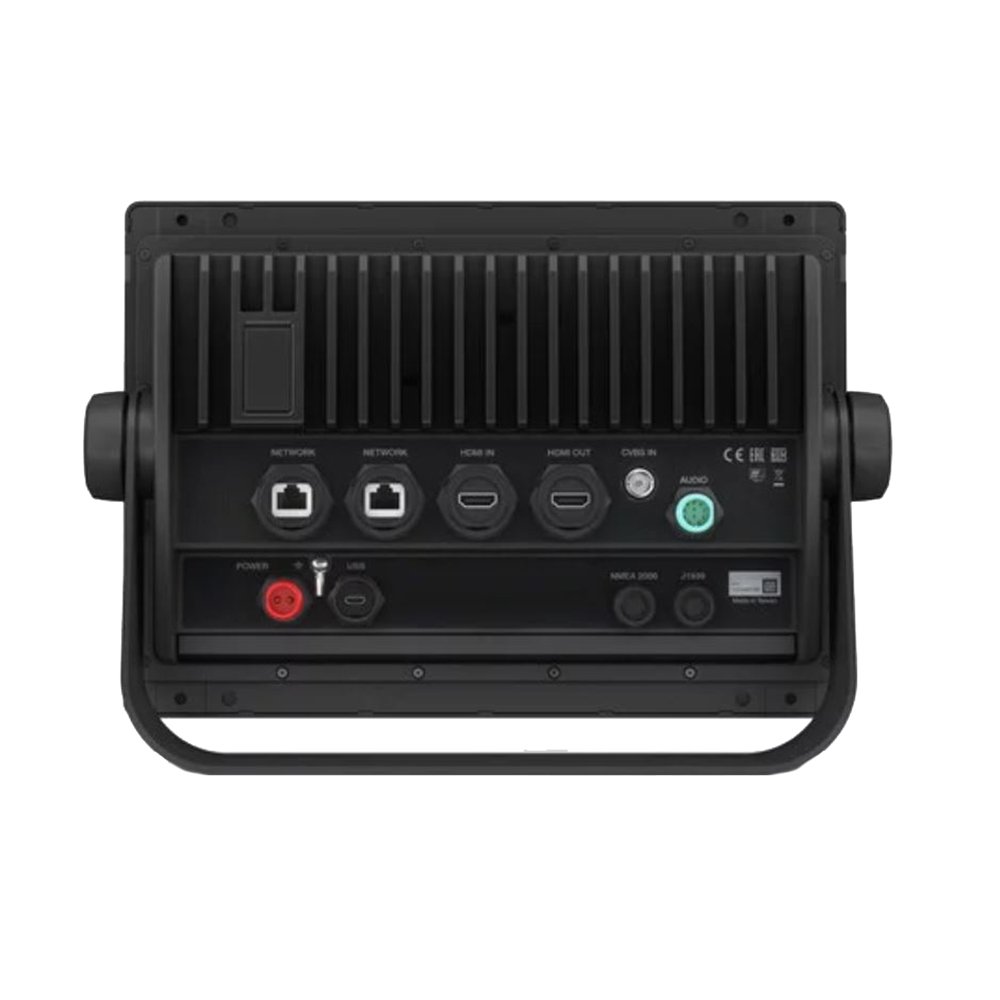

At 1100 nits, the display is intended for bright daylight helm use. Two Garmin Marine Network ports, HDMI input and output, USB-C, NMEA 2000, NMEA 0183, J1939, WiFi, Bluetooth, and ANT+ give it the connections expected on a premium Garmin installation. Sonar is handled through external GSD or GCV modules, not the display itself. That makes it a good fit when the boat already has selected sounder hardware or needs a tailored network sonar setup.

Key Features

• 12.1-inch IPS touchscreen – Gives charts and vessel data a comfortable main-helm workspace.
• 1920 x 1200 resolution – Adds useful vertical room for chart and data layouts.
• 1100-nit brightness – Helps with daylight viewing.
• Worldwide Basemap – Provides basic global reference coverage before regional charts are added.
• Two Marine Network ports, HDMI, USB-C, NMEA, and J1939 – Supports a connected Garmin electronics system.

Who Is This For?

This premium marine chartplotter suits offshore fishing boats, cruisers, and multi-display helms that need a bright 12-inch main screen. It is not ideal for a buyer wanting bundled sonar or detailed regional charts from the box.

Compatibility

Confirmed compatibility includes GSD/GCV network sonar modules, Worldwide Basemap, NMEA 2000, NMEA 0183, J1939, two Garmin Marine Network ports, HDMI input/output, USB-C, WiFi, Bluetooth, and ANT+. No specific radar, autopilot, or transducer model is identified. No named incompatible system was provided.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 8412, 010-02092-00
• Display: 12.1-inch IPS touchscreen
• Resolution: 1920 x 1200 pixels
• Brightness: 1100 nits
• Charts: Worldwide Basemap
• Sonar: External GSD/GCV network sonar support
• Networking: Two Marine Network, HDMI input/output, USB-C, NMEA 2000, NMEA 0183, J1939
• Power draw: 2.4A at 12V
• Water rating: IPX7

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state exclusions or service procedures.

The GPSMAP 8412 is a premium main-helm display for a Garmin system that already has a sonar plan. It offers more display detail than the 10-inch 8410 and more vertical room than standard Full HD models. The trade-off is external sonar and Worldwide Basemap coverage, so it is best for a custom installation rather than a complete fishfinder package.
