Garmin GPSMAP 9019 19 Premium Chartplotter w/Worldwide Basemap

Description

The Garmin GPSMAP 9019 is a 19-inch premium glass helm chartplotter with a Full HD anti-glare IPS touchscreen, 1200-nit brightness, Garmin BlueNet networking, and Worldwide Basemap. Network sonar requires compatible BlueNet or GSD modules, while HDMI input/output, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+ support a large offshore vessel system.

Key Features

• 19-inch anti-glare IPS touchscreen – Provides a large navigation workspace while reducing glare at an exposed helm.
• 1920 x 1080 Full HD resolution – Shows detailed charts, radar, and vessel data across the display.
• 1200-nit brightness – Provides the stated brightness for daylight glass bridge viewing.
• Network sonar via BlueNet and GSD modules – Allows external sonar expansion for a custom Garmin system.
• Multiple BlueNet, HDMI, USB-C, NMEA, WiFi, Bluetooth, and ANT+ connections – Supports broad vessel-system integration.

Who Is This For?

This unit suits large offshore fishing vessels, luxury cruisers, commercial boats, and flybridge helms that need a 19-inch Garmin glass helm display. It provides more screen area than a 16-inch MFD without the mounting demand of a 22- or 24-inch unit.

It is not ideal for a compact boat or buyers seeking an all-in-one fishfinder. Sonar requires external modules, and the Worldwide Basemap does not provide detailed regional chart coverage.

Compatibility

Confirmed features include Garmin BlueNet, network sonar via BlueNet/GSD modules, Worldwide Basemap, NMEA 2000, NMEA 0183, HDMI input/output, USB-C, WiFi, Bluetooth, and ANT+. The supplied information does not identify radar models, autopilot, or third-party sonar compatibility. No named incompatible system was provided; verify Garmin glass bridge, network, and module requirements before installation.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 9019, 010-02642-00
• Display: 19-inch anti-glare IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Processor: Garmin BlueNet ultra-high-speed processor

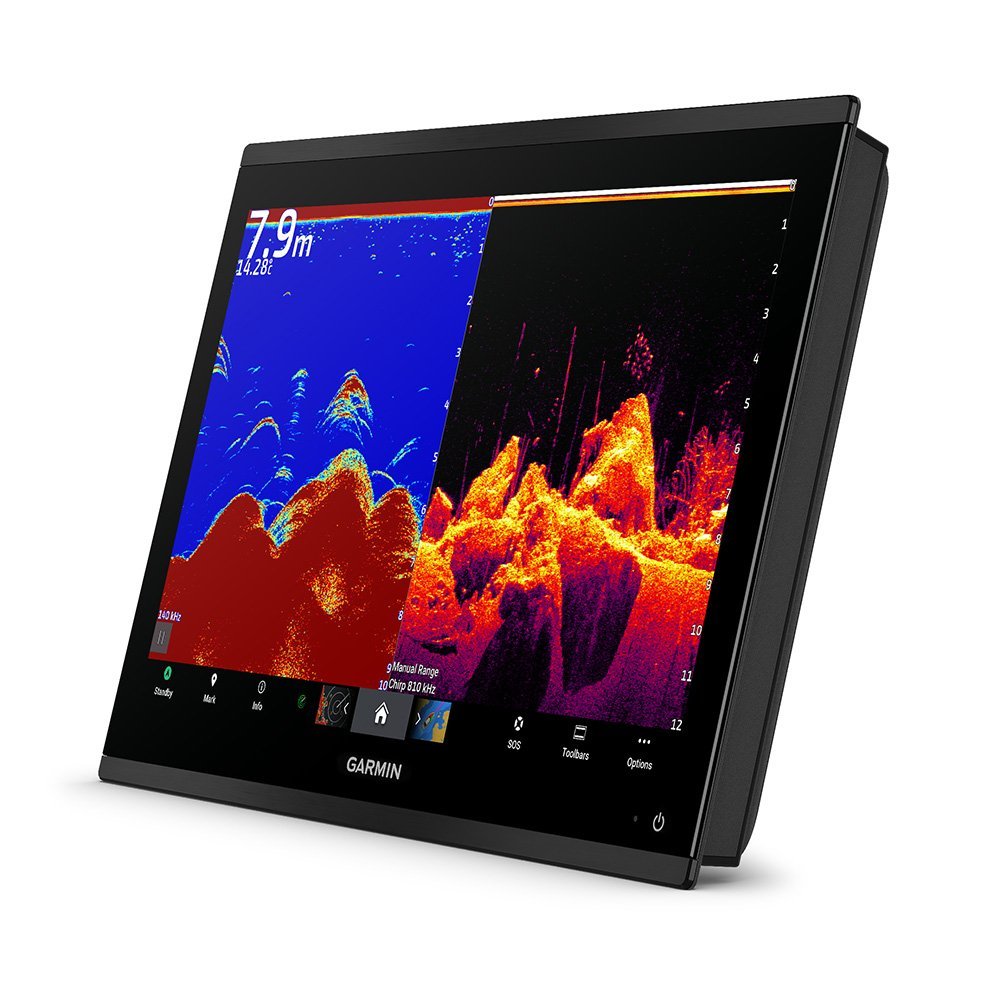

• Sonar: Network sonar via BlueNet/GSD module

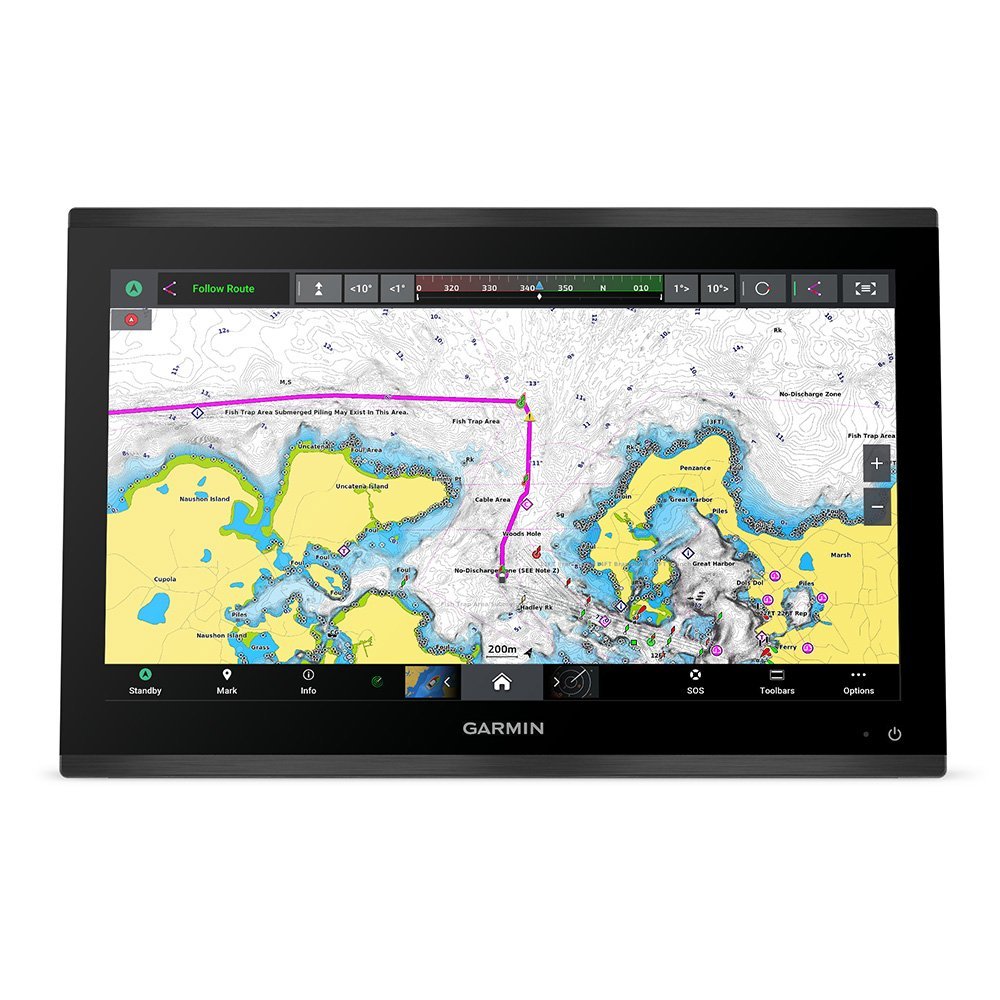

• Mapping: Worldwide Basemap

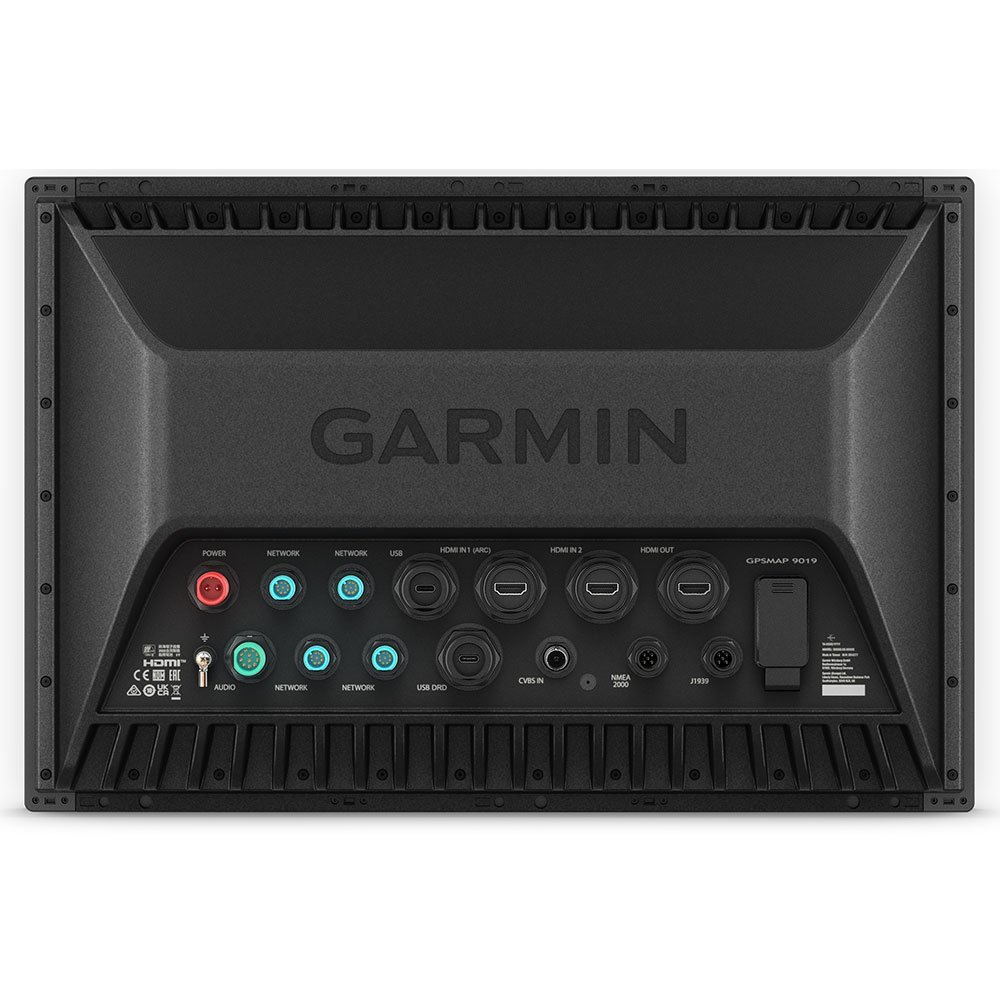

• Networking: Multiple BlueNet, HDMI input/output, USB-C, NMEA 2000, NMEA 0183
• Warranty: 2-year standard warranty

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied information does not state warranty exclusions or service procedures.

The GPSMAP 9019 is the Garmin Worldwide Basemap alternative to the Raymarine Axiom 2 XL 19, offering BlueNet networking and a large anti-glare display. Its trade-off is the lack of detailed regional charts and the need for external GSD sonar modules. Choose it for a custom Garmin glass bridge where chart media and sonar hardware will be selected as part of the vessel system.
