Garmin GPSMAP 9213xsv Premium Chartplotter/Sonar Combo w/Garmin Navionics+

Description

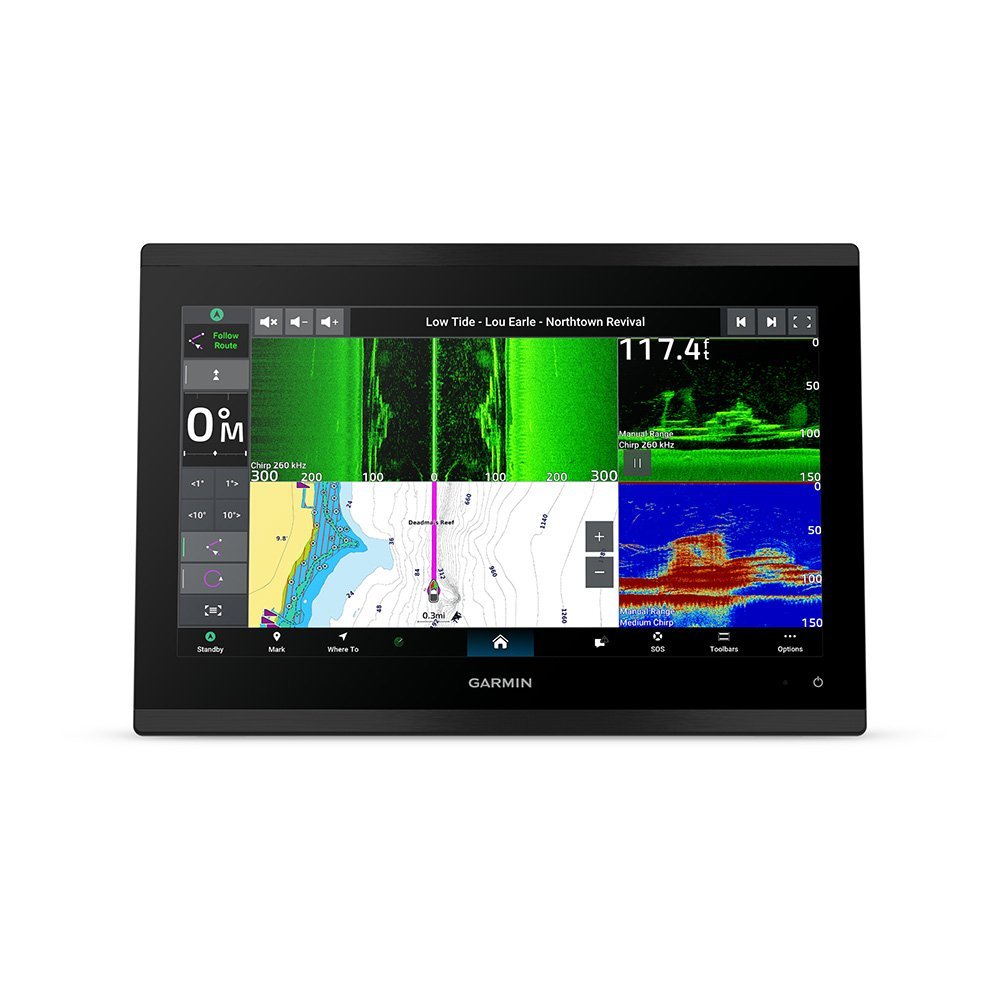

The Garmin GPSMAP 9213xsv is a 13-inch premium glass helm MFD with a 1200-nit Full HD IPS touchscreen, Garmin Navionics+ charts for the US, Canada, and Mexico, built-in 1kW CHIRP, UHD ClearVü, UHD SideVü, and Panoptix support. Garmin BlueNet, HDMI, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+ provide a broad network platform in a more manageable display size.

Key Features

• 13-inch Full HD IPS touchscreen – Provides a large chart and sonar workspace without the mounting demand of a 17-inch display.
• 1920 x 1080 resolution – Shows detailed navigation and fishfinding information across the screen.
• 1200-nit brightness – Provides the stated brightness for exposed helm viewing.
• 1kW CHIRP, UHD ClearVü, SideVü, and Panoptix support – Supports conventional, scanning, and live-sonar expansion.
• Garmin BlueNet, HDMI, USB-C, NMEA 2000, and NMEA 0183 – Provides network, video, and marine-data connections.

Who Is This For?

This model suits offshore fishing boats, coastal cruisers, center consoles, and multi-display helms that need premium Garmin glass helm features in a 13-inch unit. Its chart coverage for the US, Canada, and Mexico suits vessels operating across North American waters.

It is not ideal for compact boats where a 13-inch screen is excessive or for buyers seeking a complete transducer-included package. The display is smaller than the GPSMAP 9217xsv but still requires careful installation.

Compatibility

Confirmed features include Garmin Navionics+ charts for the US, Canada, and Mexico, Garmin BlueNet, NMEA 2000, NMEA 0183, HDMI output, USB-C, WiFi, Bluetooth, ANT+, 1kW CHIRP, UHD ClearVü, UHD SideVü, and Panoptix support. The supplied information does not identify specific transducer models, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network and sonar requirements before installation.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 9213xsv, 010-02640-02
• Display: 13-inch IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Processor: Garmin ultra-high-speed processor
• Sonar compatibility: Built-in 1kW CHIRP, UHD ClearVü/SideVü, Panoptix
• Mapping: Garmin Navionics+ preloaded for US, Canada, and Mexico
• Networking: Garmin BlueNet, HDMI output, USB-C, NMEA 2000, NMEA 0183
• Warranty: 2-year standard warranty

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 9213xsv is the mid-size premium Garmin glass helm choice, offering the same Full HD resolution and 1200-nit brightness as the 17-inch models in a smaller 13-inch display. Its preloaded US, Canada, and Mexico charts are more useful than a Worldwide Basemap for North American operators. The trade-off is less screen area, but installation is easier on mid-size boats.
