Garmin GPSMAP 9217xsv Premium Chartplotter/Sonar Combo w/Garmin Navionics+

Description

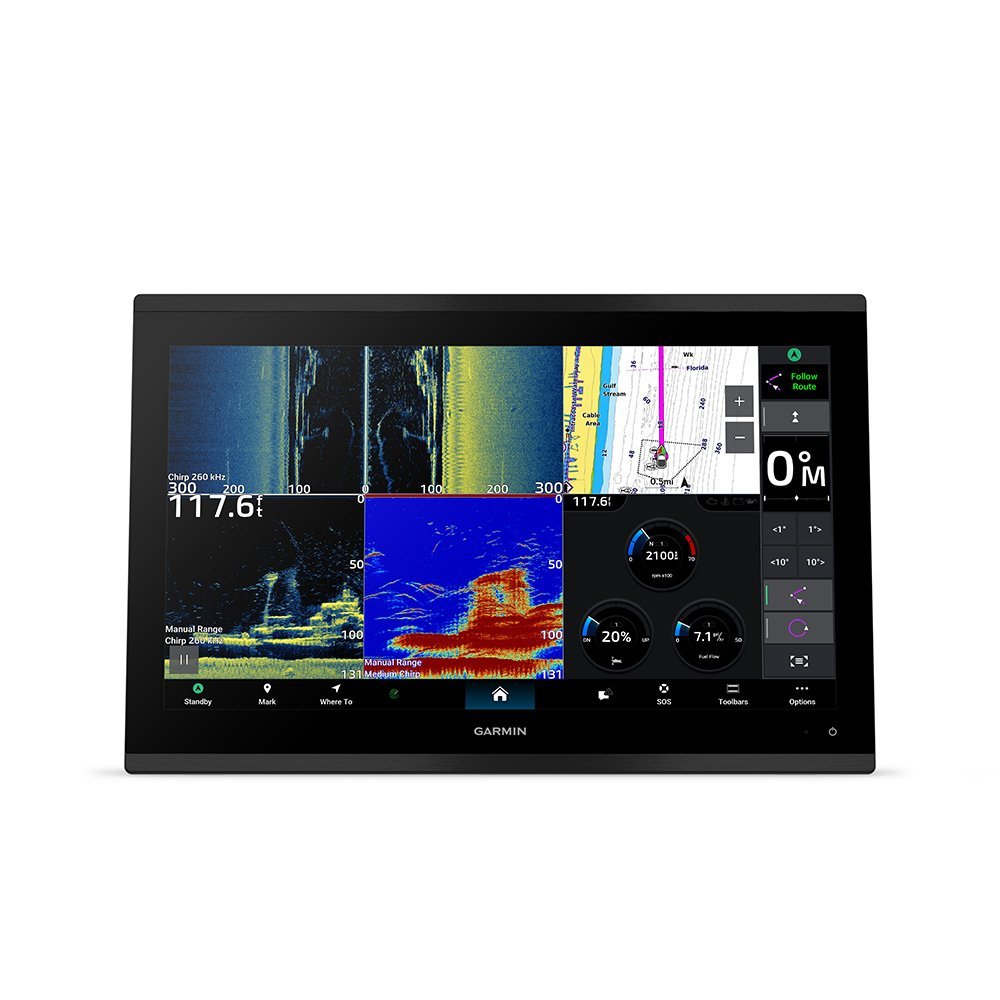

The Garmin GPSMAP 9217xsv is a 17-inch premium glass helm MFD with Garmin Navionics+ charts, Full HD resolution, built-in 1kW CHIRP, UHD ClearVü, UHD SideVü, and Panoptix support. Its 1200-nit SolarMAX IPS touchscreen provides a bright navigation workspace, while four Marine Network ports, HDMI, USB, NMEA 2000, and NMEA 0183 suit a large connected offshore vessel.

Key Features

• 17-inch SolarMAX IPS touchscreen – Provides a large workspace for charts, sonar, radar, and vessel data.
• 1920 x 1080 Full HD resolution – Shows detailed navigation and fishfinding information across the display.
• 1200-nit brightness – Provides the stated brightness for exposed helm viewing.
• 1kW CHIRP, ClearVü, SideVü, and Panoptix support – Supports conventional, scanning, and live-sonar expansion with suitable hardware.

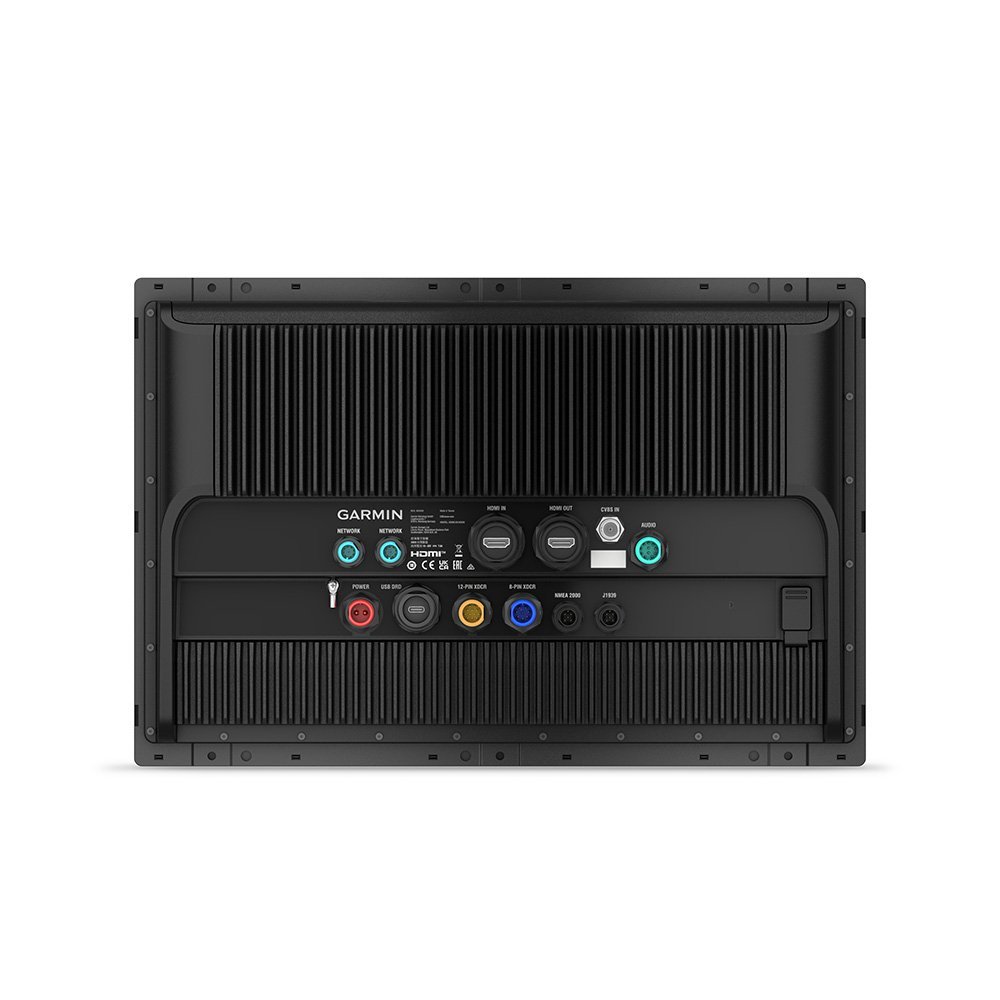

• Four Marine Network ports, HDMI, USB, NMEA 2000, and NMEA 0183 – Provides broad connections for an integrated glass helm.

Who Is This For?

This model suits large offshore fishing boats, commercial sportfishers, luxury cruisers, and premium multi-display helms where a 17-inch screen can remain visible from the helm. The high-bright Full HD display is useful when charts, sonar, radar, and engine information share the screen.

It is not ideal for a compact console or buyers seeking a complete fishfinder bundle because no transducer is listed. The large display also requires careful cutout, power, and network planning.

Compatibility

Confirmed features include Garmin Navionics+ charts, 1kW CHIRP, ClearVü, SideVü, Panoptix, four Marine Network ports, HDMI input/output, USB, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+. The supplied information does not identify specific transducer models, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network and sonar requirements before installation.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 9217xsv Premium Combo, 010-02641-02
• Display: 17-inch SolarMAX IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Processor: Garmin ultra-fast processor
• Sonar compatibility: Built-in 1kW CHIRP, ClearVü/SideVü, Panoptix
• Mapping: Garmin Navionics+ preloaded
• Networking: Four Marine Network, HDMI input/output, USB, NMEA 2000, NMEA 0183
• Warranty: 2-year standard warranty

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 9217xsv is the charted 17-inch Garmin glass helm choice, offering a larger display and Garmin Navionics+ mapping than the Worldwide Basemap 9017xsv. Its trade-off is size and installation complexity, while no transducer is listed. Choose it for a premium offshore helm that needs detailed charting and broad Garmin network connections.
