GPSMAP 9217 Premium Chartplotter w/Garmin Navionics+

Description

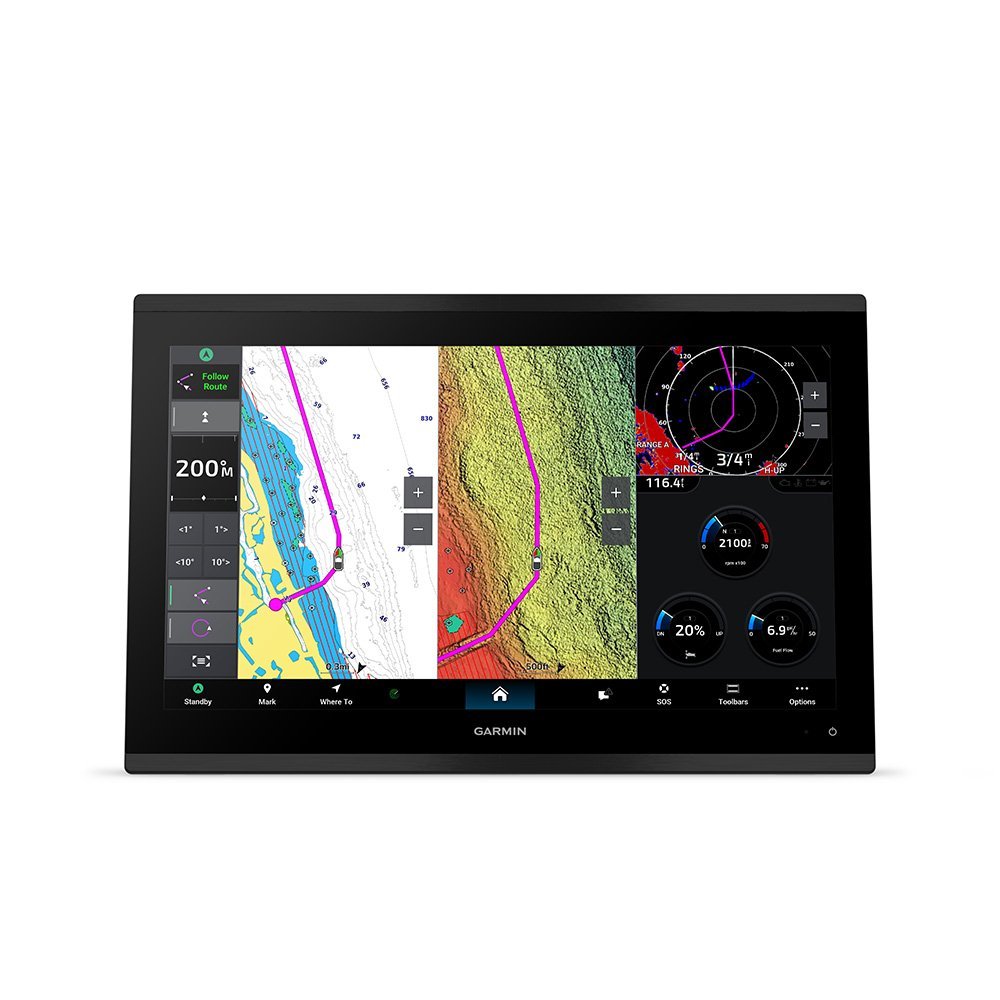

The Garmin GPSMAP 9217 is a 17-inch premium chartplotter built for a glass helm where chart coverage, radar, cameras, and vessel data need to work together. Garmin Navionics+ is preloaded, so supported regional charting is ready from the start. It is aimed at serious offshore boats and large cruisers that need a bright, full-size navigation display.

The Full HD IPS screen runs at 1200 nits, which gives it extra daylight headroom at an open or bright helm. Garmin BlueNet networking provides a faster foundation for a larger system, while HDMI, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+ handle key connections. Sonar remains external through compatible BlueNet or GSD modules, so this is a premium chartplotter MFD, not a transducer-included fishfinder.

Key Features

• 17-inch IPS touchscreen – Gives charts, radar, and system data a large working area.
• 1920 x 1080 Full HD resolution – Keeps dense navigation information easy to scan.
• 1200-nit brightness – Helps maintain readability in strong daylight.
• Garmin Navionics+ preloaded – Adds compatible regional chart coverage from the start.
• BlueNet, HDMI, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+ – Supports a premium connected helm.

Who Is This For?

This 17-inch Garmin glass helm chartplotter suits offshore fishing boats, luxury cruisers, and larger multi-display systems. It is not for compact consoles or buyers seeking an all-in-one fishfinder, because sonar needs external BlueNet or GSD hardware.

Compatibility

Confirmed compatibility includes Garmin Navionics+, BlueNet/GSD network sonar modules, NMEA 2000, NMEA 0183, HDMI input/output, USB-C, WiFi, Bluetooth, and ANT+. No specific radar, autopilot, or transducer model is named. No named incompatible system was provided.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 9217, 010-02641-02
• Display: 17-inch IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Charts: Garmin Navionics+ preloaded
• Sonar: External BlueNet/GSD network sonar support
• Networking: BlueNet, HDMI input/output, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, ANT+
• Power draw: 4.0A at 12V
• Water rating: IPX7

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state exclusions or service procedures.

The GPSMAP 9217 is the chart-ready alternative to the Worldwide-Basemap GPSMAP 9017. The display size and core system role are the same, but Navionics+ is included here. The trade-off is still external sonar, so choose it for a premium Garmin bridge where chart coverage is needed immediately.
