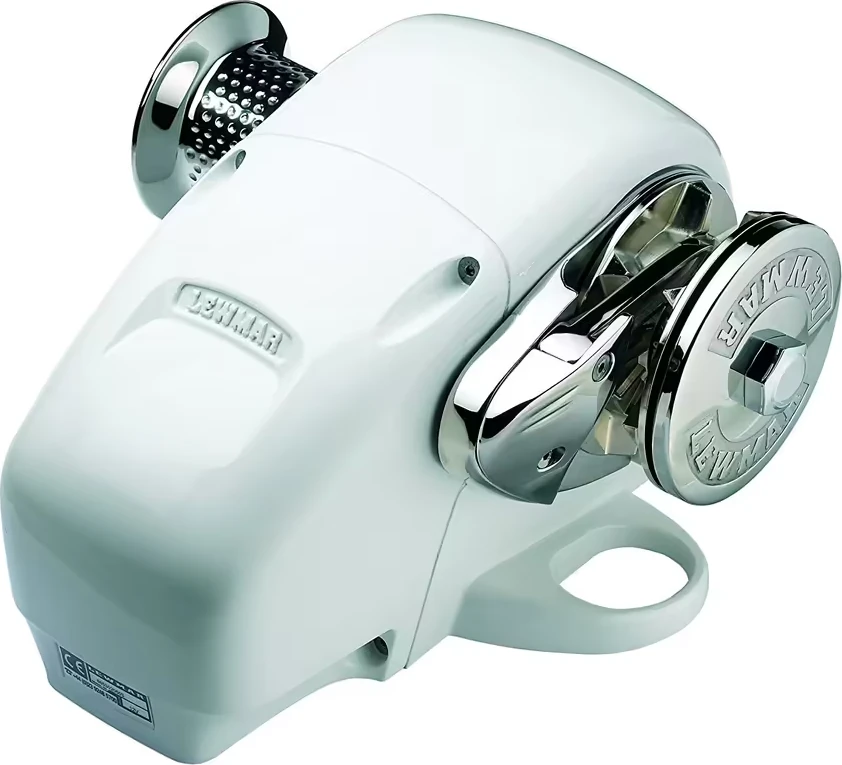

Lewmar H2GD Windlass (Gypsy / Drum) 8mm 12v – For Boats Up to 48 Ft., Max Pull: 1433 lbs.

Description

TheLewmar H2GDcombines a 700W 12V DC motor with a horizontal gypsy and warping drum arrangement. The windlass has a stated maximum pull of 1,433 lbs and a 360 lbs continuous working-load rating. Its cast 316 stainless steel body and high-tensile stainless shaft support the listed deck and drive assembly.

The gypsy accepts 8 mm DIN 766 or ISO 4565 chain with 12 to 14 mm three-strand rope. A free-fall cone clutch controls the listed release function, while the manual override provides a separate control feature. The provided product data does not confirm an anchor, rode, switch, contactor, or circuit breaker as included.

Key Features of the H2GD Gypsy and Drum Windlass

• The 700W 12V DC motor powers the horizontal gypsy and warping drum.
• The gypsy accepts 8 mm DIN 766 or ISO 4565 chain.
• The rope section handles 12 to 14 mm three-strand rope.
• The warping drum provides separate line handling beside the anchor rode gypsy.
• The cone clutch controls the listed free-fall release function.
• The manual override provides a separate stated manual-control feature.
• The 360 lbs working-load rating identifies the continuous hauling load.
• The 1,433 lbs maximum pull figure states the product’s peak pull rating.
• The rated no-load speed reaches 69 ft/min without a working load.
• A 90A slow-blow breaker is required for circuit protection.

Which Boats This Windlass Fits

The H2GD gypsy and drum windlass is recommended for power and sailboats up to 48 ft. Its gypsy requires 8 mm DIN 766 or ISO 4565 chain with 12 to 14 mm three-strand rope. The named chain standard and rope diameter must both match the confirmed gypsy configuration before selecting anchor rode components.

the listed maximum pull is 1,433 lbs. The 360 lbs working-load rating provides the separate continuous hauling figure. Boat owners should evaluate normal retrieval needs against the continuous rating rather than the peak pull rating.

Materials, Technology and Use

Cast 316 stainless steel forms the housing, and the high-tensile stainless shaft supports the drive assembly. The IP67 rating applies to the listed watertight enclosure. The free-fall cone clutch manages the listed release function, while the warping drum provides a separate surface for line handling.

Salt, sand, and debris can still accumulate around the stainless steel body, gypsy, drum, and deck hardware. Regular cleaning and inspection remain necessary. The drum and gypsy handle different line functions within the listed configuration.

Compatibility and Installation

The Lewmar horizontal windlass fits deck thicknesses from 1.0 to 2.0 in. It measures 218 mm high by 281 mm long and weighs 46 lbs. Installers should verify the mounting area, cable route, below-deck space, clutch access, and drum clearance before installation.

The 12V DC system draws an average of 80A and requires a 90A slow-blow breaker. the listed requirements can be considered with battery charging capacity before finalizing the electrical layout. The provided product data does not confirm a switch, contactor, or circuit breaker as included.

Care and Operating Notes

Rinse the housing, gypsy, warping drum, chain, and rope with fresh water after saltwater exposure. Clear salt, sand, mud, and debris from the rope-to-chain transition and cone-clutch area before operation. Inspect chain links, rope condition, clutch movement, manual override access, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for lubricant selection, service intervals, disassembly, and approved replacement parts.

Warranty and Support

The H2GD carries a 3-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode uses 8 mm DIN 766 or ISO 4565 chain with 12 to 14 mm three-strand rope. You should compare your boat with the up-to-48-ft application guide, measure deck thickness against the 1.0 to 2.0 in range, and allow for the 218 mm height, 281 mm base length, and 46 lbs dry weight. Verify that the 12V electrical system supports the listed 80A average draw and required 90A slow-blow breaker. Confirm controls, circuit-protection hardware, anchor, chain, and rope with the seller because the provided product data does not confirm them as included.
