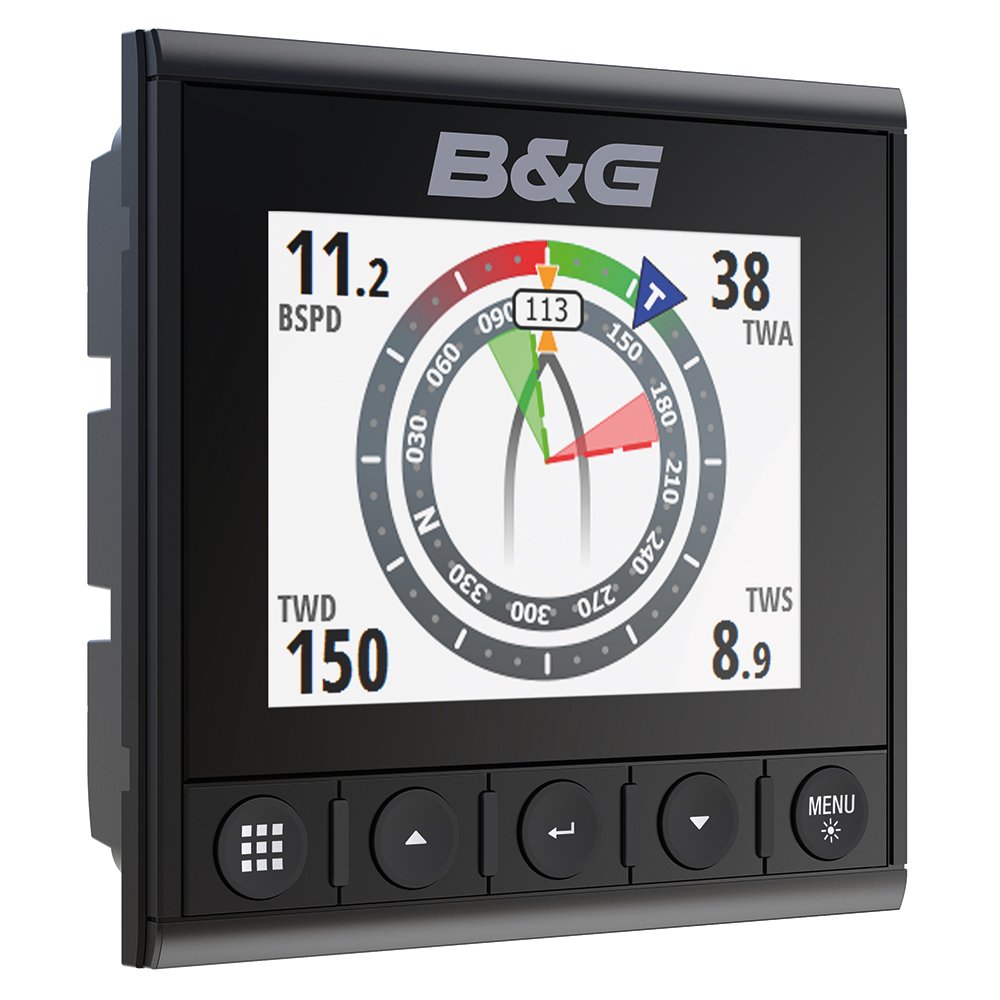

B&G Triton Digital Display

Description

The B&G Triton Digital Display presents sailing instrument data through a 4.1-inch optically bonded color LCD with 320 by 240 pixel resolution. Its NMEA 2000 Micro-C connection links the display to the instrument network, while the 600-nit screen provides the listed brightness specification. The unit accepts 12V DC input from 9 to 16V DC, draws up to 2.2 watts, and uses a housing measuring 4.6 by 4.5 by 1.4 inches.

This B&G multi-function instrument display carries an IPX7 rating and uses one NMEA 2000 port. Package contents, mounting hardware, bezel components, and additional network accessories are not confirmed in the available product data.

Key Specifications of the B&G Triton Digital Display

• 4.1-inch color LCD presents connected sailing instrument data.
• Optically bonded construction forms the listed display technology.
• 320 by 240 pixels define the screen resolution.
• 600 nits identifies the specified display brightness.
• NMEA 2000 Micro-C provides networked instrument connectivity.
• One NMEA 2000 port carries the listed system connection.
• 9 to 16V DC defines the stated input range.
• Maximum power draw is 2.2 watts.
• IPX7 rating identifies the specified display protection level.

Screen, Controls, and Display Functions

The Triton Digital Display uses a 4.1-inch optically bonded color LCD with 320 by 240 pixel resolution and 600 nits brightness. The available product data does not confirm touchscreen operation, physical keys, rotary controls, viewing angle, screen orientation, or display customization.

Mounting, Power, and Compatibility Considerations

Verify the 4.6 by 4.5 by 1.4 inch housing dimensions and connector access before installation. Confirm the 9 to 16V DC supply, maximum 2.2-watt draw, NMEA 2000 Micro-C network, and receiving instrument compatibility before connecting the display.

Warranty and Support

The B&G Triton Digital Display includes a verified 2-Year Standard warranty. These terms reflect currently available manufacturer information, and buyers should verify active warranty policies directly with the seller or manufacturer before purchase.

Before Ordering the B&G Triton Digital Display

Verify the 4.1-inch screen size, housing dimensions, 9 to 16V DC supply, NMEA 2000 connection, available mounting space, connector clearance, and package contents before ordering.
