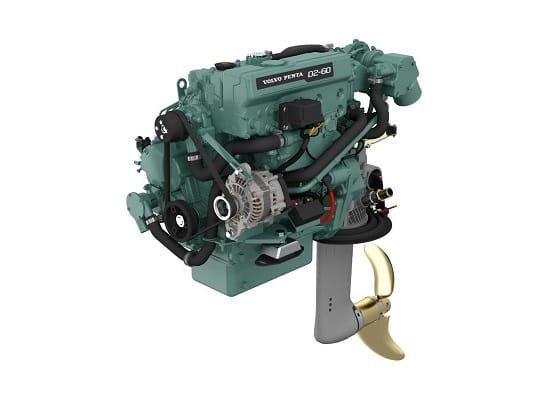

Volvo Penta D2-60 – Inboard Diesel Engine 60 HP

Description

Maintain a documented 115-amp charging configuration and 9.5L cooling capacity within an installation using the Volvo Penta D2-60. This naturally aspirated 2.2L inline four-cylinder engine produces 60 hp at 3,000 rpm through an in-line injection pump and a stated 23.3:1 compression ratio. Its SAE 5 flywheel housing, HS25A, MS25, or S-Drive compatibility, and mechanical or hydraulic marine gear options define the supplied propulsion interfaces.

The 569-pound dry engine uses EN 590 or ASTM D975 diesel and pressure-feed lubrication holding 10.5L oil. A water-cooled elbow forms the stated exhaust arrangement, and the supplied specification lists EPA Tier 3, BSO II, and RCD II emissions ratings. Mechanical or hydraulic steering compatibility should be evaluated with the selected control arrangement.

Key Specifications of the Volvo Penta D2-60 Marine Diesel Engine

• The 2.2L inline four-cylinder engine produces 60 hp at 3,000 rpm through naturally aspirated diesel operation using an in-line injection pump.
• An in-line injection pump and 23.3:1 compression ratio define the supplied fuel-system configuration using EN 590 or ASTM D975 diesel.
• HS25A, MS25, or S-Drive compatibility requires drivetrain confirmation alongside the stated mechanical or hydraulic marine gear arrangement.
• An SAE 5 flywheel housing defines the listed engine-to-transmission interface for compatible propulsion-package planning.
• The 115-amp alternator provides the stated charging output for vessels using this engine electrical-system configuration.
• Closed fresh-water cooling holds 9.5L coolant, while the water-cooled elbow defines the specified exhaust-water arrangement.
• Pressure-feed lubrication uses 10.5L oil capacity, requiring engine-room access for fluid maintenance and regular inspections.

Engine Configuration and Service Access

This Volvo Penta marine diesel engine uses 84 by 100 mm bore and stroke dimensions in an inline four-cylinder, four-stroke layout. The injection pump, heat-exchanger components, water-cooled elbow, alternator, lubrication-service points, and selected marine gear or S-Drive should remain accessible after installation.

The 569-pound dry weight, fuel system, cooling circuit, wet-exhaust configuration, and selected propulsion interface should be evaluated together. Provide clearance for servicing, fluid changes, cooling-system checks, and inspection of the complete propulsion arrangement.

Why Choose the Volvo Penta D2-60 Marine Diesel Engine

The D2-60 marine diesel engine combines 60 hp at 3,000 rpm with a naturally aspirated 2.2L four-cylinder platform and in-line injection pump. Buyers comparing inboard or saildrive propulsion can assess its HS25A, MS25, or S-Drive compatibility, marine gear choices, 115-amp alternator, and SAE 5 flywheel housing. The supplied 569-pound dry weight and listed coolant and oil capacities support installation planning.

Installation and Compatibility Considerations

Confirm that the vessel supports the 569-pound dry weight, SAE 5 flywheel housing, selected mechanical or hydraulic marine gear, and HS25A, MS25, or S-Drive configuration. Plan engine mounts, shaft or saildrive alignment, fuel supply, cooling-water intake, water-cooled elbow routing, control connections, alternator wiring, ventilation, and service access before installation.

Use fuel meeting EN 590 or ASTM D975 requirements. Confirm provisions for 9.5L coolant capacity, 10.5L oil capacity, mechanical or hydraulic steering compatibility, and access to the injection pump, cooling system, exhaust components, and lubrication service points.

Warranty and Support

Warranty coverage should be confirmed against the current Volvo Penta warranty policy applicable to the exact engine, purchase market, installation, and operating use. For product details and order support, Mulmarine.com offers assistance before your purchase is placed. Review the applicable warranty information on Mulmarine.com before completing your order.

Before Ordering the Volvo Penta D2-60 Marine Diesel Engine

Before ordering, verify engine-bed dimensions, mount locations, SAE 5 flywheel-housing compatibility, selected marine gear or S-Drive, fuel supply, cooling-water intake, water-cooled elbow routing, control connections, alternator wiring, ventilation, shaft or saildrive alignment, and professional propulsion installation planning.
