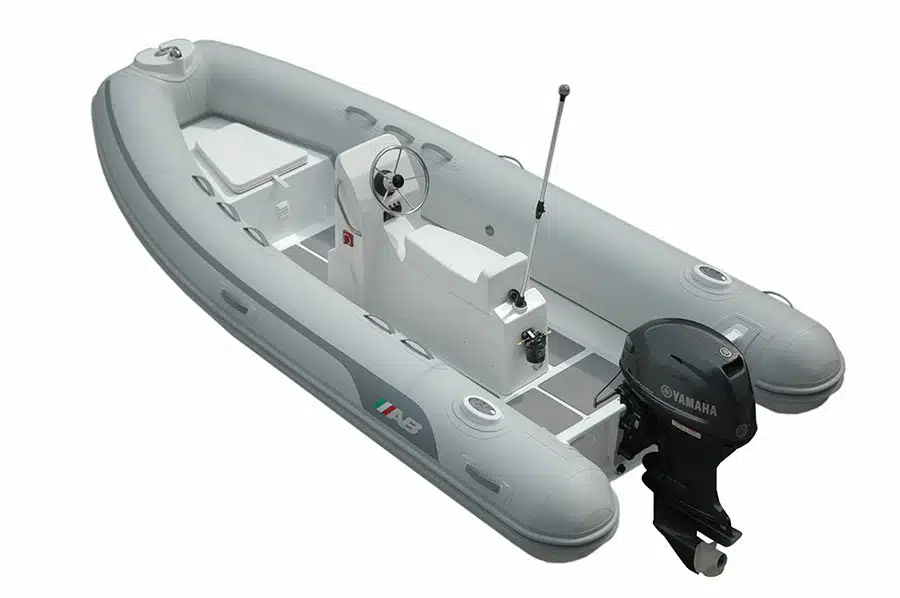

AB Alumina 14 ALX 14′ Aluminum Console Yacht Tender

Description

At 4.27 m, or 14 ft, the AB Inflatables Alumina 14 ALX combines a 3.18 mm, or 1/8 inch, powder-coated aluminum deep-V hull with a rubber-padded aluminum deck and full-length keel guard. Its four buoyancy chambers use ORCA CSM 1100 dtex fabric with cold-cured hand-laminated seams. The listed 260 kg, or 573 lb, net weight and 55 L, or 14 gal, integrated aluminum fuel tank should be checked against lifting, storage, trailer, and rigging requirements.

The boat has an ISO-rated capacity of seven persons and a maximum payload of 750 kg, or 1,653 lb. A 20-inch long-shaft outboard is required, with 40 HP recommended, 60 HP maximum, and 145 kg, or 320 lb, maximum engine weight. Leafield C7 Push-Push valves are specified, while CE Category C is listed for inshore and coastal conditions.

Key Specifications of the AB Inflatables Alumina 14 ALX Rigid Inflatable Boat

• The aluminum sport-console RIB measures 4.27 m, or 14 ft, overall and has a stated net weight of 260 kg.
• A powder-coated 3.18 mm aluminum deep-V hull includes a keel guard, defining the listed rigid-hull construction for this console tender.
• The powder-coated aluminum deck uses non-skid rubber pads, establishing the specified deck-surface configuration for the sport-console layout.
• Four buoyancy tubes use ORCA CSM 1100 dtex fabric with cold-cured hand-laminated seams for the stated tube construction.
• Maximum ISO passenger capacity is seven persons, while the stated maximum payload capacity is 750 kg, or 1,653 lb.
• A 55 L, or 14 gal, integrated aluminum fuel tank establishes the listed onboard fuel-storage configuration for this RIB.
• A 20-inch long-shaft outboard is required, with 40 HP recommended and 60 HP maximum power specified for propulsion selection.

Hull, Deck, and Capacity

This AB Inflatables rigid inflatable boat has an internal length of 3.20 m, or 10 ft 6 in, and an internal width of 0.99 m, or 3 ft 3 in. The specified tube diameter is 0.46 m, or 18 in. Its deep-V aluminum hull, rubber-padded deck, keel guard, and four buoyancy tubes establish the stated hull and deck configuration.

Included equipment consists of a sport console with integrated steering, bow locker with cushion, integrated fuel tank, helm seat with under-seat storage, LED navigation lights, automatic bilge pump, rubbing strake, and full-length aluminum keel guard. Keep passenger loading, payload, fuel planning, long-shaft outboard selection, and engine specification within the supplied product limits.

Why Choose the AB Inflatables Alumina 14 ALX Rigid Inflatable Boat

The Alumina 14 ALX rigid inflatable boat combines a 4.27 m aluminum deep-V hull, a 3.18 mm hull specification, rubber-padded deck, 55 L integrated fuel tank, sport console, and four ORCA CSM buoyancy chambers. Buyers can compare its 260 kg net weight, seven-person ISO capacity, 750 kg payload rating, 20-inch long-shaft outboard requirement, 40 HP recommended power, 60 HP maximum power, and 145 kg engine limit with other compact aluminum console RIBs.

Setup and Outboard Considerations

The supplied boat includes the sport console with integrated steering, bow locker and cushion, 55 L integrated fuel tank, helm seat with under-seat storage, LED navigation lights, automatic bilge pump, rubbing strake, and full-length keel guard. Confirm the 20-inch long-shaft outboard configuration before rigging, then match the engine to the stated 40 HP recommendation, 60 HP maximum, and 145 kg engine-weight limit. Inflate all four buoyancy chambers through the listed Leafield C7 Push-Push valves.

Warranty and Support

AB Inflatables provides a 10-Year Limited Warranty covering ORCA CSM fabric and aluminum hull structure. Mulmarine.com can help you compare the 4.27 m hull dimensions, 260 kg net weight, 55 L fuel-tank specification, 20-inch long-shaft outboard requirement, and stated passenger, payload, and engine limits with your tender, lift, trailer, dock, and propulsion plan before purchase. Review the stated warranty coverage and documented included components before ordering.

Before Ordering the AB Inflatables Alumina 14 ALX Rigid Inflatable Boat

Verify that your lift, trailer, dock, and storage arrangement supports the 4.27 m overall length and 260 kg net weight. You should use a 20-inch long-shaft outboard, select 40 HP as the recommended power level, avoid exceeding 60 HP or 145 kg engine weight, confirm the 55 L fuel-tank configuration, and remain within the seven-person and 750 kg maximum capacity limits.
