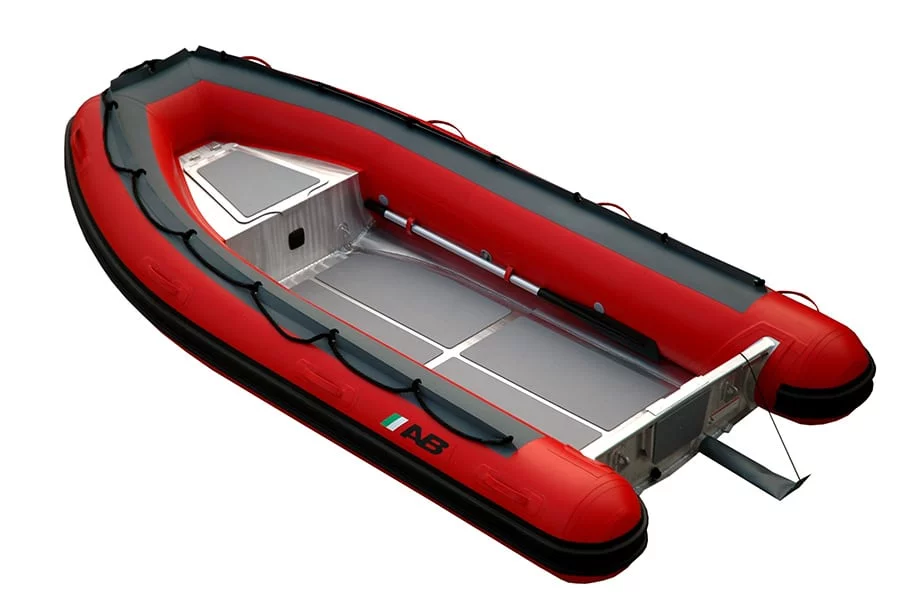

AB Profile A11 11′ Professional Aluminum RIB Boat

Description

Plan an aluminum RIB installation around the AB Inflatables Profile A11, a 3.35 m, or 11 ft, commercial model with a powder-coated 3.18 mm, or 1/8 inch, deep-V aluminum hull. The flat deck uses anti-slip pads, while three buoyancy tubes use ORCA CSM 1670 dtex commercial fabric with cold-cured hand-laminated seams. At 135 kg, or 297 lb, the hull weight should be included in lifting, trailer, storage, and dock planning.

ISO capacity is five persons, and the 520 kg, or 1,146 lb, maximum payload applies to combined passenger and cargo loading. A 20-inch long-shaft outboard matches the transom configuration, with 20 HP recommended, 30 HP maximum, and an 88 kg, or 194 lb, engine-weight limit. Leafield C7 Push-Push valves and relief valves serve the three buoyancy chambers, while CE Category C applies to the stated inshore and coastal classification.

Key Specifications of the AB Inflatables Profile A11 Rigid Inflatable Boat

• The professional aluminum RIB measures 3.35 m, or 11 ft, overall and has a 135 kg net weight for lift planning.
• A powder-coated 3.18 mm aluminum deep-V hull includes a keel guard, defining the documented rigid-hull construction for this professional RIB.
• Powder-coated aluminum forms the flat deck, while anti-slip pads establish the specified open-deck surface for onboard layout planning.
• Three buoyancy tubes use ORCA CSM 1670 dtex commercial fabric with cold-cured hand-laminated seams for the documented tube construction.
• ISO capacity is five persons, and the 520 kg maximum payload sets the stated passenger and cargo limit.
• A 20-inch long-shaft outboard is required, with 20 HP recommended and 30 HP maximum for propulsion selection.
• Outboard weight must not exceed 88 kg, while Leafield C7 and relief valves serve the documented tube system.

Hull, Deck, and Capacity

An internal length of 2.40 m, or 7 ft 10 in, and an internal width of 0.81 m, or 2 ft 8 in, define the stated usable hull space. A 0.43 m, or 17 in, tube diameter accompanies the aluminum deep-V hull, flat deck, keel guard, and three-chamber tube configuration.

Included equipment consists of a bow locker with cushion, heavy-duty double rubbing strake, full-length aluminum keel guard, bow lifting rings, stern lifting eyes, and towing rings. Use the Leafield C7 Push-Push valves for the documented tube system, then keep cargo, passenger, and outboard choices within the stated limits.

Why Choose the AB Inflatables Profile A11 Rigid Inflatable Boat

The Profile A11 rigid inflatable boat combines a 3.35 m aluminum deep-V hull with a flat deck, keel guard, three ORCA CSM buoyancy chambers, bow locker, lifting rings, towing rings, and relief valves. Its 135 kg net weight, five-person ISO capacity, 520 kg payload rating, 20-inch long-shaft requirement, 20 HP recommended power, 30 HP maximum power, and 88 kg engine limit provide defined comparison points for a compact commercial RIB.

Setup and Outboard Considerations

Included components cover a bow locker with cushion, double rubbing strake, full-length aluminum keel guard, bow lifting rings, stern lifting eyes, and towing rings. Select a 20-inch long-shaft outboard before rigging, then keep engine output at or below 30 HP and engine weight at or below 88 kg. Inflate the three buoyancy chambers through the Leafield C7 Push-Push valves and account for the relief-valve arrangement.

Warranty and Support

AB Inflatables provides a 10-Year Limited Warranty covering ORCA CSM fabric and aluminum hull structure. Mulmarine.com can help you review the 3.35 m hull dimensions, 135 kg net weight, 520 kg payload limit, long-shaft outboard requirement, and 88 kg engine-weight limit against your lifting, trailer, deck-layout, and propulsion plan before purchase. Review the stated warranty coverage and documented included components before ordering.

Before Ordering the AB Inflatables Profile A11 Rigid Inflatable Boat

Confirm that your lifting, trailer, dock, and storage plan supports the 3.35 m overall length and 135 kg net weight. You should use a 20-inch long-shaft outboard, select 20 HP as the recommended power level, avoid exceeding 30 HP or 88 kg engine weight, and remain within the five-person and 520 kg maximum capacity limits.
