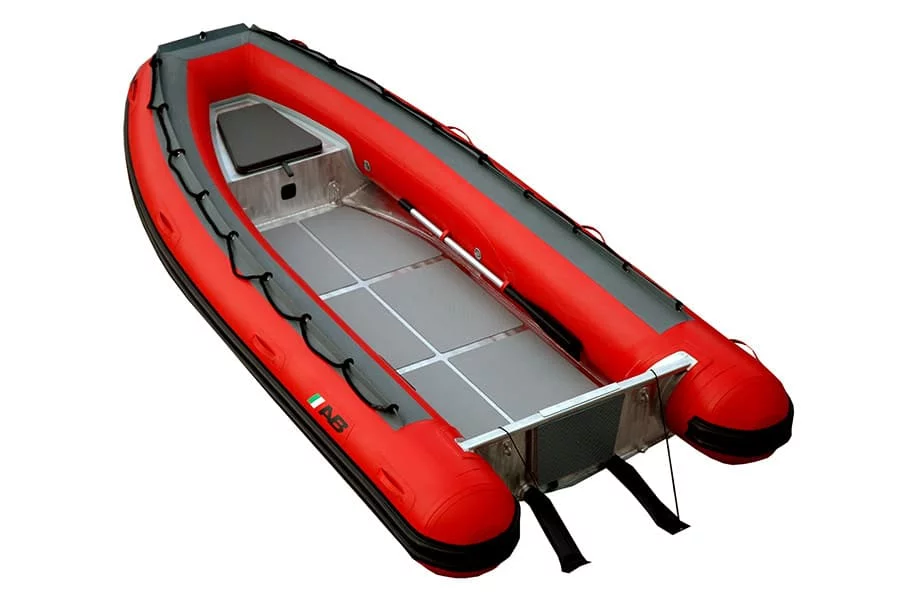

AB Profile A14 Standard – 14-Foot Aluminum Hull RIB Boat

Description

At 4.27 m, or 14 ft, the AB Inflatables Profile A14 Standard uses a powder-coated 3.18 mm, or 1/8 inch, aluminum deep-V hull with an integrated keel guard. Its flat aluminum deck uses anti-slip pads, while four buoyancy chambers use ORCA CSM 1670 dtex commercial fabric with cold-cured hand-laminated seams. The listed 190 kg, or 419 lb, net weight should be evaluated against lifting, trailer, storage, and onboard handling requirements.

The boat has an ISO-rated capacity of seven persons and a maximum payload of 800 kg, or 1,763 lb. A 20-inch long-shaft outboard is required, with 40 HP recommended, 60 HP maximum, and 145 kg, or 320 lb, maximum engine weight. Leafield C7 Push-Push valves are specified for the four buoyancy tubes, and CE Category C is listed for inshore and coastal conditions.

Key Specifications of the AB Inflatables Profile A14 Standard Rigid Inflatable Boat

• The commercial aluminum RIB measures 4.27 m, or 14 ft, overall and has a stated net weight of 190 kg.
• A powder-coated 3.18 mm deep-V aluminum hull includes an integrated keel guard, defining the listed rigid-hull construction for this utility model.
• The powder-coated aluminum flat deck uses anti-slip pads, establishing the stated open-deck surface configuration for onboard layout planning.
• Four buoyancy tubes use ORCA CSM 1670 dtex commercial fabric with cold-cured hand-laminated seams for the specified tube construction.
• Maximum ISO passenger capacity is seven persons, while the stated maximum payload capacity is 800 kg, or 1,763 lb.
• A 20-inch long-shaft outboard is required, with 40 HP recommended and 60 HP maximum power specified for propulsion selection.
• Maximum permitted engine weight is 145 kg, requiring outboard selection within the stated transom-loading limit before installation.

Hull, Deck, and Capacity

This AB Inflatables rigid inflatable boat has an internal length of 3.20 m, or 10 ft 6 in, and an internal width of 0.99 m, or 3 ft 3 in. The stated tube diameter is 0.46 m, or 18 in. Its deep-V aluminum hull, flat deck, integrated keel guard, and four buoyancy chambers define the supplied structural configuration.

Included equipment consists of a bow locker with cushion, heavy-duty double rubbing strake, aluminum keel guard, bow lifting rings, stern lifting eyes, towing rings, and non-skid deck panels. Plan passenger loading, payload, lifting points, cargo arrangement, and the selected long-shaft outboard within the stated product limits.

Why Choose the AB Inflatables Profile A14 Standard Rigid Inflatable Boat

The Profile A14 Standard rigid inflatable boat combines a 4.27 m aluminum deep-V hull with a flat deck, integrated keel guard, four ORCA CSM buoyancy chambers, bow locker, and lifting and towing points. Buyers can compare its 190 kg net weight, seven-person ISO capacity, 800 kg payload rating, 20-inch long-shaft outboard requirement, 40 HP recommended power, 60 HP maximum power, and 145 kg engine limit with the shallow-V Profile A14 variant.

Setup and Outboard Considerations

The supplied configuration includes a bow locker with cushion, double rubbing strake, aluminum keel guard, bow lifting rings, stern lifting eyes, towing rings, and non-skid deck panels. Confirm the 20-inch long-shaft outboard configuration before rigging, then match engine output to the stated 40 HP recommendation, 60 HP maximum, and 145 kg engine-weight limit. Inflate all four buoyancy chambers through the specified Leafield C7 Push-Push valves.

Warranty and Support

AB Inflatables provides a 10-Year Limited Warranty covering ORCA CSM fabric and aluminum hull structure. Before checkout, Mulmarine.com can help you compare the 4.27 m hull dimensions, deep-V configuration, 190 kg net weight, 800 kg payload limit, 20-inch long-shaft outboard requirement, and 145 kg engine-weight limit with your lifting, trailer, deck-layout, and propulsion plan. Review the stated warranty coverage and documented included components before ordering.

Before Ordering the AB Inflatables Profile A14 Standard Rigid Inflatable Boat

Verify that your lifting, trailer, dock, and storage arrangement supports the 4.27 m overall length and 190 kg net weight. You should use a 20-inch long-shaft outboard, select 40 HP as the recommended power level, avoid exceeding 60 HP or 145 kg engine weight, and remain within the seven-person and 800 kg maximum capacity limits.
