Mermaid M16 – Cool and Reverse Cycle Unit 16,500 BTU’s 110V

Description

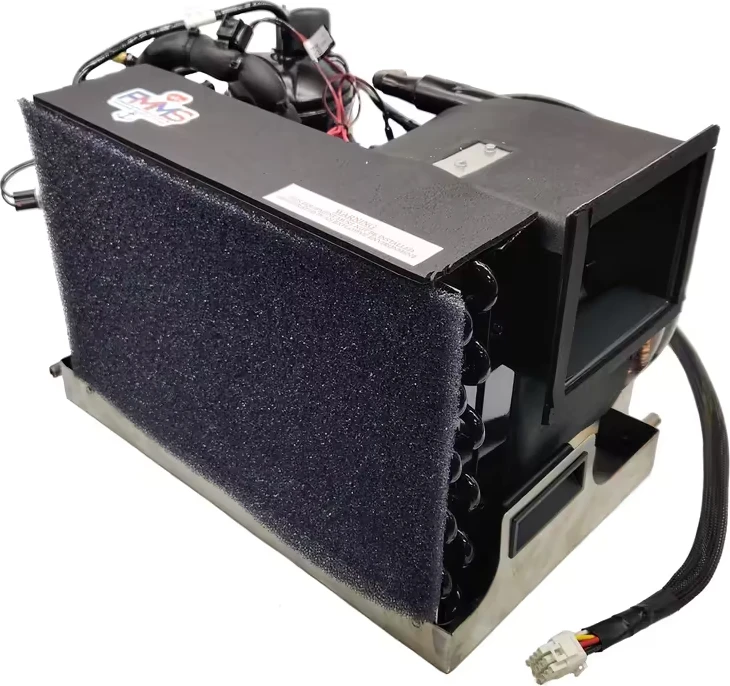

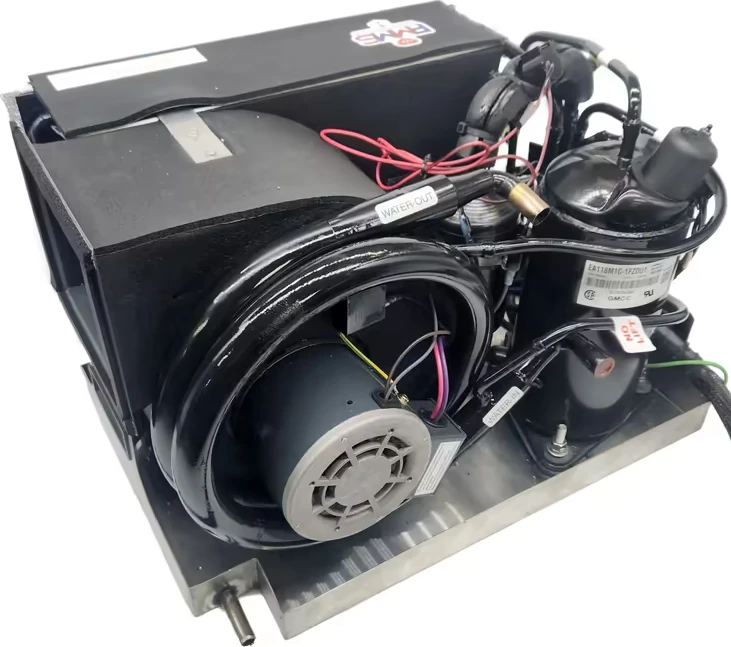

Mermaid Marine Air M16 (110V Variant) Self-Contained Marine Air Handler

The Mermaid Marine Air M16 (110V Variant) deploys a high-capacity 16,500 BTU/h cooling and 18,000 BTU/h reverse cycle heating framework engineered to supply total climate control directly to spacious main salons up to 800 cu.ft. The heavy-duty 13.0×20.0x13.5-inch structural chassis installs remotely within narrow bilge layouts, pumping conditioned air smoothly at 490 CFM through a 6-inch duct connection to prevent hot spots. This modern configuration delivers exceptional thermal regulation on complex vessels, providing the ultimate choice over a traditional 230v chilled water fan coil alternative layout.

Operational safety on a single-phase 110V 60Hz electrical infrastructure is secured by an integrated hermetic rotary compressor pulling a continuous 11.8A cooling draw and a 13.6A heating current draw. The 66 lbs indoor assembly utilizes a rugged stainless steel frame paired with premium cupronickel condenser loops, holding mechanical machinery vibration sound emissions down to an absolute minimum while managing a 54A locked rotor startup surge. External seawater plumbing lines link directly to a 5/8-inch port, finishing a build configured to run safely off a 4.0 kW minimum generator overhead as a smart choice for integrated NMEA 2000 marine HVAC networks.

Technical Capabilities and Attributes for Mermaid Marine Air M16 (110V Variant):

• High performance 16,500 BTU cooling and 18,000 BTU reverse heating
• Compact 13.0-inch height profile optimizes vertical clearance inside lockers
• Premium cupronickel condenser loops prevent severe saltwater oxidation damage
• Heavy duty stainless steel base pan captures condensation safely
• Nominal 11.8A cooling current draw optimizes electrical auxiliary load
• Hermetic rotary compressor mechanism minimizes localized cabin vibration sound
• Standard 5/8-inch seawater inlet and outlet plumbing connections size
• Universal 110V framework adapts to standard domestic vessel grids
• Rigid 66 lbs structural chassis ensures stable bilge mounting
• Pre charged eco conscious R-410A structural refrigerant loop

Alloy Thermodynamics and Heat Dissipation

Cupronickel condenser loops provide maximum thermal transfer across all high-temperature seawater circuits by optimizing heat absorption boundaries. The system loop interfaces directly with external staging modules, guaranteeing stable technical operations as a core element of a centralized distribution network. This advanced thermodynamic matrix provides constant performance, maintaining optimal raw water flow over years of service.

Comprehensive Manufacturer Coverage and Service Protocols

A comprehensive 5-year factory warranty protects all structural parts against defects under standard marine operating protocols. This coverage delivers direct component remediation through authorized dealer channels, ensuring original engineering tolerances are maintained without out-of-pocket material expenses. Vessel owners enjoy peace of mind knowing mechanical and electronic infrastructure elements are fully secured.

Dimensional Layout and Hull Configuration Sizing

Vessels measuring 30-38ft are perfectly sized for this compact high-output marine climate control configuration. It is uniquely engineered to serve expansive interior spaces like main salon decks and multi-berth configurations requiring a minimal 4.0 kW auxiliary generator overhead. Seamless hardware optimization balances continuous moisture extraction, letting operators maximize layout space while reducing internal equipment strain.
