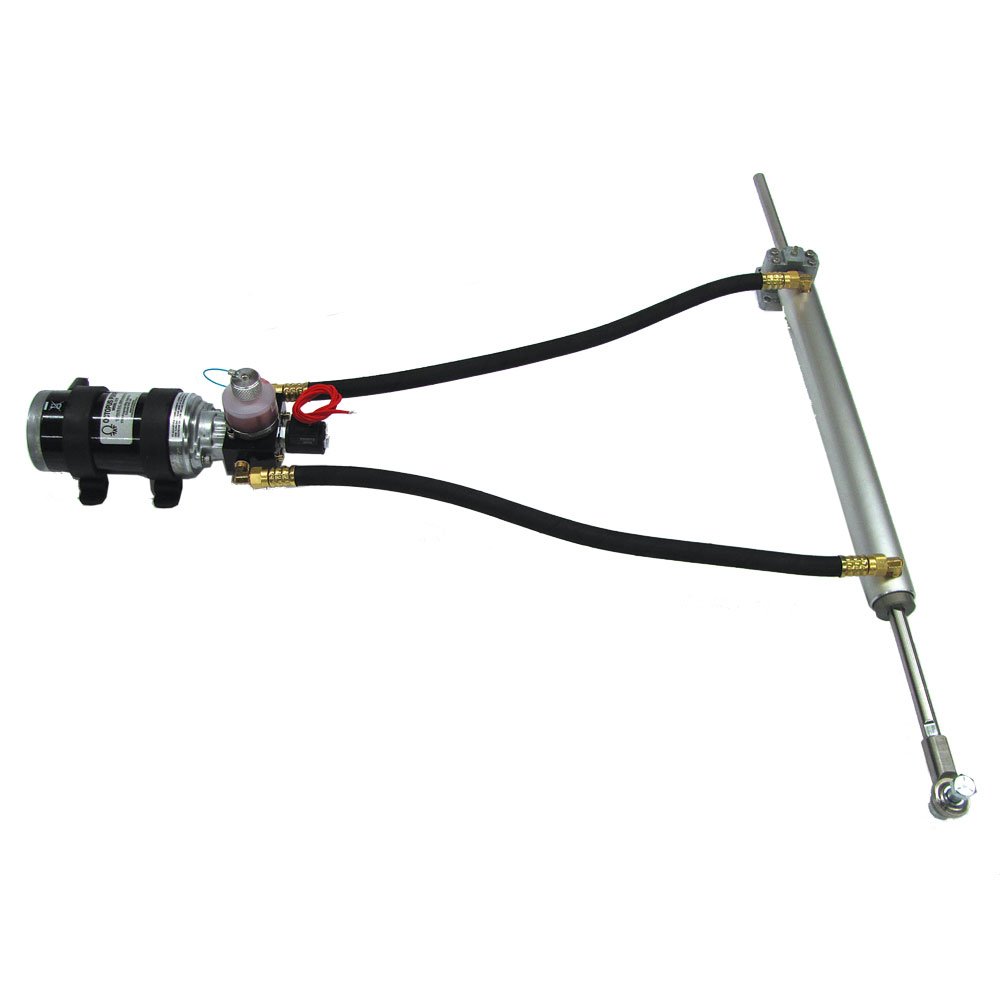

Octopus 12 Stroke Remote 38mm Linear Drive – 12V – Up To 60 or 33,000lbs
The Octopus 12 Stroke Remote Linear Drive delivers heavy-duty steering for US yachts, featuring a 38mm bore actuator for sailing vessels up to 33000 pounds displacement.
- Pump Type: Electromechanical Linear Drive
- Flow Capacity: 183.06 Cubic Inches
- Cylinder: 33,000lb Max Displacement
- Max Pressure: 1100lb Peak Thrust
- Power Draw: 12V DC Operation
Products are almost sold out
available only:
6In Stock
Description
Remote Mechanical Drive and Torque Analysis
Standard steering linkages on high-displacement yachts frequently experience cable stretch and manual helm slippage during autopilot engagement. The Octopus 12-Stroke Remote Linear Drive delivers 1000 pounds of thrust via a 38mm piston. This unit bypasses the primary helm for direct rudder control.
The drive integrates with 12V autopilot computers via a dedicated high-current clutch circuit for manual override. A 12-inch stroke length ensures full rudder travel for vessels up to 33000 pounds displacement. Heavy-duty internal gears provide long-term durability against mechanical fatigue in heavy following seas.
Strategic Vessel Application
Mandatory for sailing vessels and powerboats up to 33000 pounds requiring a remote-mounted linear drive.
Technical Key Features
- Linear drive delivers 1000 pounds of thrust
- 12 inch stroke supports full rudder travel
- Supports vessels up to 33000 pounds displacement
- Internal clutch enables immediate manual helm override
- 12V DC motor draws 4 amps average
- Precision piston travel maintains 0.1 degree accuracy
- Remote mounting simplifies installation in restricted bilges
OCTOPUS 12 Stroke Remote 38mm Linear Drive Specifications
| Drive Type | Remote Hydraulic Linear Drive |
| Pump/Ram Capacity | 38mm Bore Heavy-Duty Cylinder |
| Flow Rate / Speed | 12-Inch (300mm) Full Stroke |
| Max Pressure | 1000 lbs (450 kg) Peak Thrust |
| Cylinder Compatibility | Vessels up to 33,000 lbs (15 Tons) |
| Operating Voltage | 12V DC System |
| Peak Current Draw | 30A High-Load Capacity |
| Average Power Draw | 4A - 10A Under Sailing Conditions |
| Motor Type | Reversing Permanent Magnet DC |
| Computer Compatibility | Universal (NAC-3, ACU-400, Reactor) |
| Port Size / Thread | 1/4" NPT Hydraulic Fitting |
| Drive Connection | Remote Link via Flexible Hoses |
| Rotation/Stroke Direction | Linear Horizontal/Vertical Stroke |
| Mounting Type | Remote Bulkhead Mount |
| Housing Material | Hard Anodized Alloy / Steel Ram |
| Waterproof Rating | IP55 (Motor) / IP67 (Ram Unit) |
| Operating Temperature | -20°C to +55°C Robust Range |
| Length (Overall) | 950 mm Fully Extended |
| Width/Diameter | 125 mm Main Chassis |
| Weight | 9.5 kg (21 lbs) |
| Included Accessories | Remote Pump, Cylinder, Mounting Kit |
| Key Mechanical Feature | Separated pump and ram for tight spaces |
