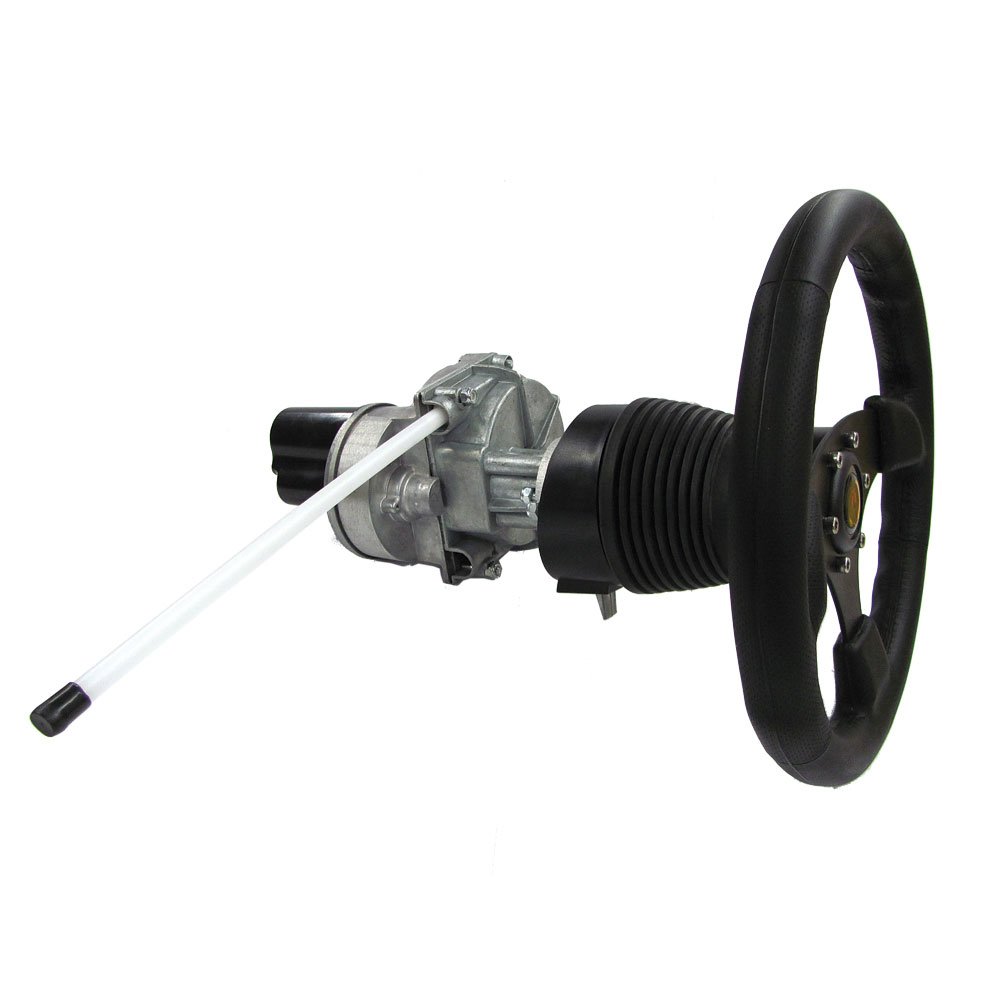

Octopus Type T Tilt Shaft f/Mounting Behind the Dash f/Mechanical Drive Systems

Description

The Octopus Type T Tilt Shaft Mechanical Drive is a behind-dash mechanical autopilot drive for compatible push-pull cable steering systems that require an adjustable tilt steering-wheel position. It combines a reversible gear motor, mechanical steering-cable drive, and tilt mechanism in one assembly. The unit is intended for a compatible autopilot processor and is not a complete autopilot system on its own.

The 12V drive produces up to 150 lb of cable thrust and typically draws 3A to 5A, with a maximum draw of 12A under load. It requires approximately 235 mm of behind-dash depth and weighs 4.2 kg, or 9.2 lb. The Type T configuration is intended for installations where the steering-wheel angle must be adjusted for ergonomic helm positioning.

Key Specifications

• Behind-dash mechanical rotary drive with an adjustable tilt steering-shaft arrangement.
• Designed for compatible standard push-pull mechanical steering cables.
• Provides up to 150 lb of maximum cable thrust.
• Uses a 12V integrated reversing gear motor for bidirectional cable movement.
• Typical operating draw is 3A to 5A, with 12A maximum current under load.
• Connects through a tilt-mechanism steering shaft and standard quick-connect cable arrangement.
• Requires approximately 235 mm behind-dash installation depth.
• Weighs approximately 4.2 kg and includes a tilt mechanism plus mounting hardware.

System Integration

This drive requires a compatible autopilot processor, heading source, control interface, power circuit, steering cable, and full installation hardware. The description of “universal” compatibility should not be treated as automatic plug-and-play compatibility with every Simrad, Garmin, or Raymarine course computer; verify drive voltage, current requirements, clutch control, feedback requirements, and manufacturer-approved interface hardware first.

Use a protected interior mounting location and ensure the dashboard structure can support the drive. Confirm adequate clearance for the 235 mm drive depth, steering-wheel tilt travel, cable routing, cable bend radius, manual steering operation, and service access before cutting the panel or ordering parts.

Before Ordering

Confirm a compatible push-pull cable-steering system, required tilt-wheel geometry, autopilot-computer compatibility, sufficient 235 mm behind-dash depth, 12V supply, 12A circuit capacity, dashboard support, cable routing, full steering travel, and all necessary control, sensor, and installation components before purchase.
