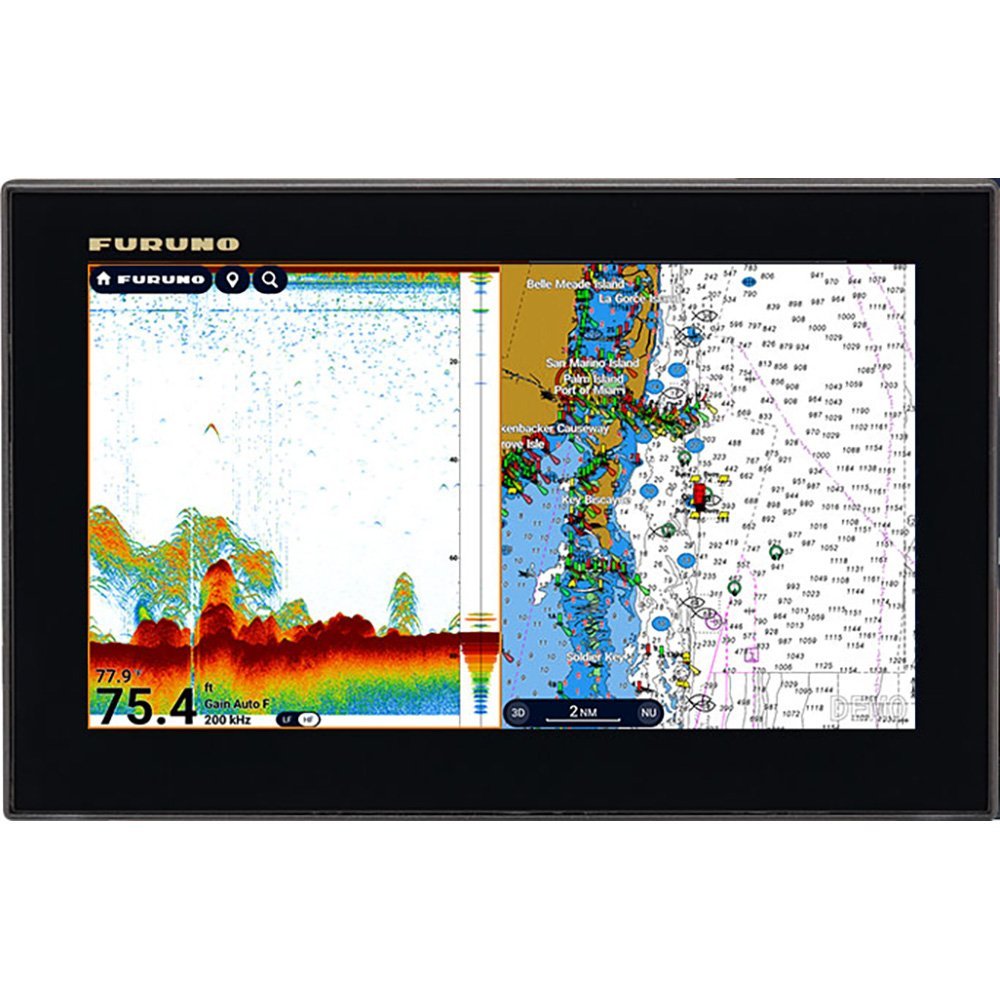

Furuno TZT9E Multi-Function Display Fishfinder/Chartplotter

Furuno TZT9E | High-Output Tactical Command Hub

Furuno TZT9E (TZtouch3) provides a surgical navigational solution for smaller vessels by integrating a 9-inch high-brightness display with a quad-core processing engine. By utilizing a built-in 1kW CHIRP sounder, the system mitigates the need for external sonar modules, delivering professional-grade target separation in a compact footprint. This architectural efficiency ensures that navigators maintain absolute control over their environment, leveraging the TZT9E’s intuitive Edge-Swipe interface to access critical telemetry without losing sight of the primary chart or radar view.

From an installation standpoint, the TZT9E is engineered for rapid integration into existing NavNet networks. In demanding marine conditions, it is vital to ensure the internal GPS antenna is not obstructed by overhead hardtops or metallic structures to maintain a consistent 10Hz signal lock. System performance relies on cooling; don’t install the unit in an airtight console without adequate ventilation, as the high-output quad-core processor generates significant heat when processing high-resolution radar and sonar data simultaneously during extended offshore transits.

Technical Specifications

• Display: 9-inch Sunlight-Readable Hybrid-Touch screen.
• Sonar: Integrated 1kW TruEcho CHIRP™ with Bottom Discrimination.
• Processor: Quad-Core engine for rapid data synchronization.
• Compatibility: NavNet TZtouch3 network ready (Radar/AIS/Sonar).
• Interface: Multi-touch with simplified Edge-Swipe menu system.
• Voltage: 12V-24V dual-voltage system compatibility.
• Protection: IP56 rated for durability in extreme saltwater environments.
