Garmin GPSMAP 8410 10 Chartplotter w/Worldwide Basemap

Description

The Garmin GPSMAP 8410 is a 10.1-inch premium chartplotter for a center console, cruiser, or secondary helm where a sharp navigation display matters more than built-in sonar. The 1920 x 1200 IPS touchscreen gives unusually good chart detail for this screen size, and its 1100-nit brightness helps when the sun is on the console. It comes with a Worldwide Basemap.

This model works best as part of a connected Garmin helm. It has two Marine Network ports for external GSD or GCV sonar modules, plus HDMI input and output, USB-C, NMEA 2000, NMEA 0183, J1939, WiFi, Bluetooth, and ANT+. In rough conditions, a small but sharp display can be easier to scan than a larger screen installed too far from the operator. Remember that this is chartplotter-only: sonar and detailed regional charts are separate purchases.

Key Features

• 10.1-inch IPS touchscreen – Fits more helm layouts than a 12-inch display.
• 1920 x 1200 resolution – Keeps chart and system data sharp in a compact screen.
• 1100-nit brightness – Helps maintain daylight visibility.
• Worldwide Basemap – Provides global reference mapping before detailed charts are added.
• Two Marine Network ports and full NMEA support – Makes room for sonar modules and connected electronics.

Who Is This For?

This 10-inch Garmin chartplotter suits center consoles, cruisers, and secondary stations that need premium display quality in a compact footprint. It is not ideal for buyers seeking built-in sonar or preloaded regional charts.

Compatibility

Confirmed compatibility includes GSD/GCV sonar modules, Worldwide Basemap, NMEA 2000, NMEA 0183, J1939, two Garmin Marine Network ports, HDMI input/output, USB-C, WiFi, Bluetooth, and ANT+. No specific radar, autopilot, or transducer model is identified. No named incompatible system was provided.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 8410, 010-02091-00
• Display: 10.1-inch IPS touchscreen
• Resolution: 1920 x 1200 pixels
• Brightness: 1100 nits
• Charts: Worldwide Basemap
• Sonar: External GSD/GCV network sonar support

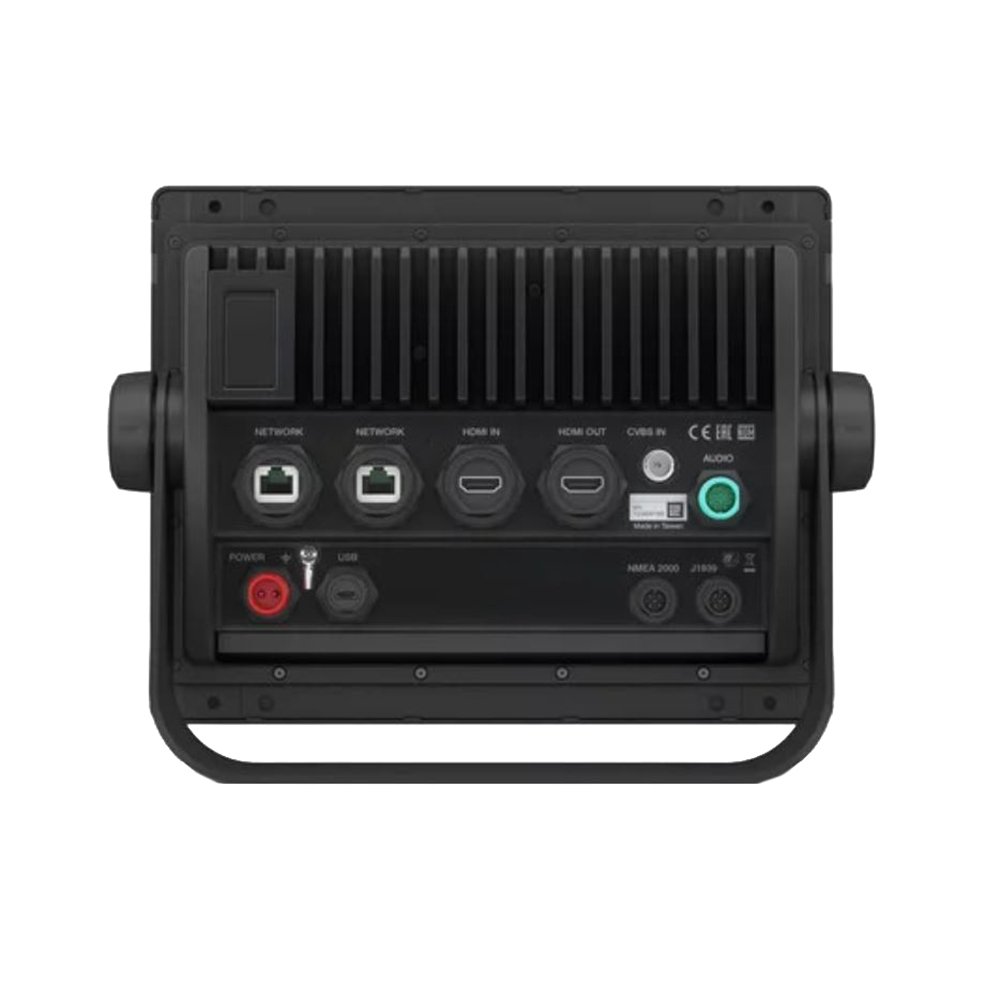

• Networking: Two Marine Network, HDMI input/output, USB-C, NMEA 2000, NMEA 0183, J1939
• Power draw: 1.5A at 12V
• Water rating: IPX7

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state exclusions or service procedures.

The GPSMAP 8410 is the compact premium alternative to the GPSMAP 8412. You keep the high-resolution screen and broad Garmin network connections while taking less dash space and drawing less power. The trade-off is less room for split-screen work, plus the need to add both detailed charts and external sonar hardware.
