Garmin GPSMAP 9017xsv Premium Chartplotter/Sonar Combo w/Worldwide Basemap

Description

The Garmin GPSMAP 9017xsv is a 17-inch premium glass helm MFD with a 1200-nit Full HD IPS touchscreen, built-in 1kW CHIRP, UHD ClearVü, UHD SideVü, Panoptix support, and a Worldwide Basemap. Garmin BlueNet provides high-speed network connectivity, while HDMI, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+ support a large integrated marine electronics system.

Key Features

• 17-inch anti-glare IPS touchscreen – Provides a large navigation and sonar workspace for offshore helms.
• 1920 x 1080 Full HD resolution – Shows detailed charts, sonar, and system information across the display.
• 1200-nit brightness – Provides the stated brightness for daylight viewing at an exposed helm.
• 1kW CHIRP, UHD ClearVü, SideVü, and Panoptix support – Supports multiple sonar technologies with compatible hardware.
• Garmin BlueNet, HDMI, USB-C, NMEA 2000, and NMEA 0183 – Provides high-speed network, video, and marine data connections.

Who Is This For?

This unit suits large offshore fishing boats, luxury cruisers, commercial vessels, and glass bridge helms that need a 17-inch premium display. The anti-glare Full HD screen is useful when navigation and system data must remain visible in daylight.

It is not ideal for small boats or buyers who need regional charts and a transducer included. The Worldwide Basemap provides basic reference mapping, and sonar hardware must be selected separately.

Compatibility

Confirmed features include Garmin BlueNet, NMEA 2000, NMEA 0183, HDMI input/output, USB-C, WiFi, Bluetooth, ANT+, 1kW CHIRP, UHD ClearVü, UHD SideVü, and Panoptix support. The supplied information does not identify specific transducer models, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network and sonar requirements before installation.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 9017xsv, 010-02641-00

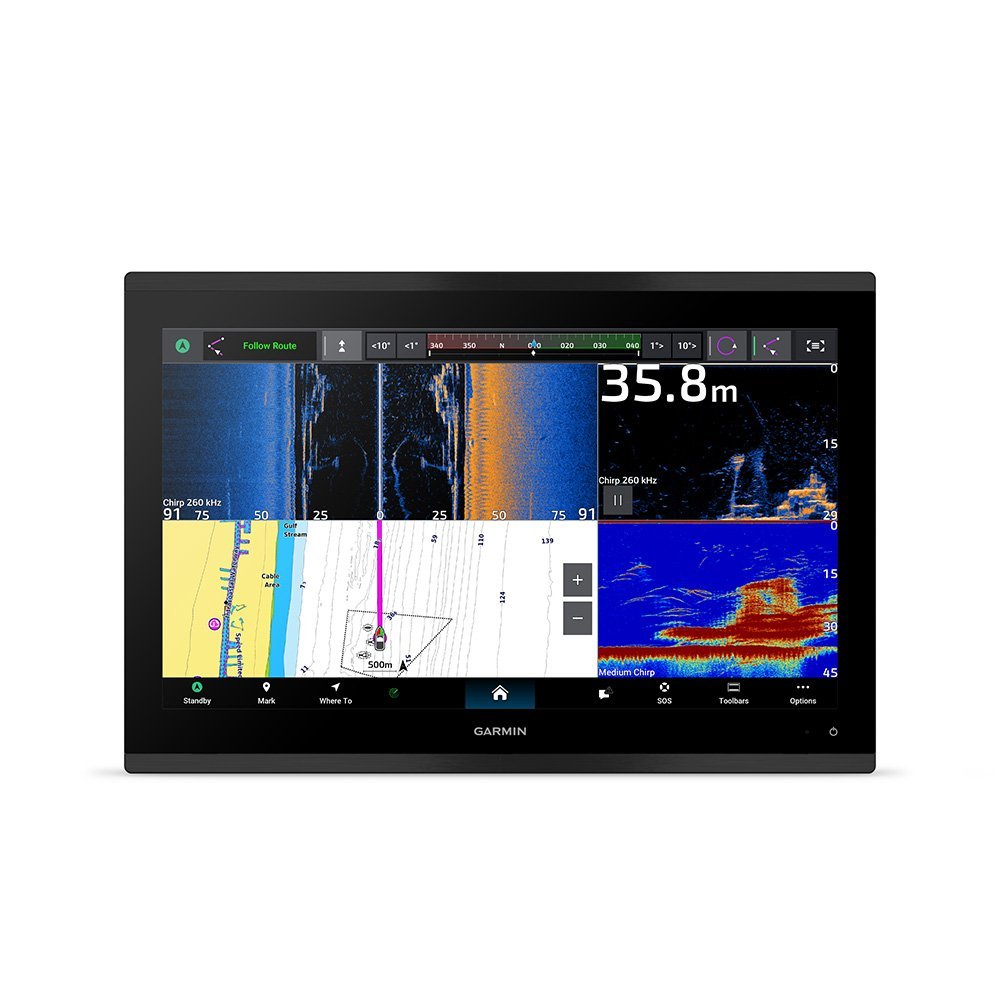

• Display: 17-inch anti-glare IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Processor: Garmin ultra-high-speed processor
• Sonar compatibility: Built-in 1kW CHIRP, UHD ClearVü/SideVü, Panoptix
• Mapping: Worldwide Basemap, Navionics+ compatible

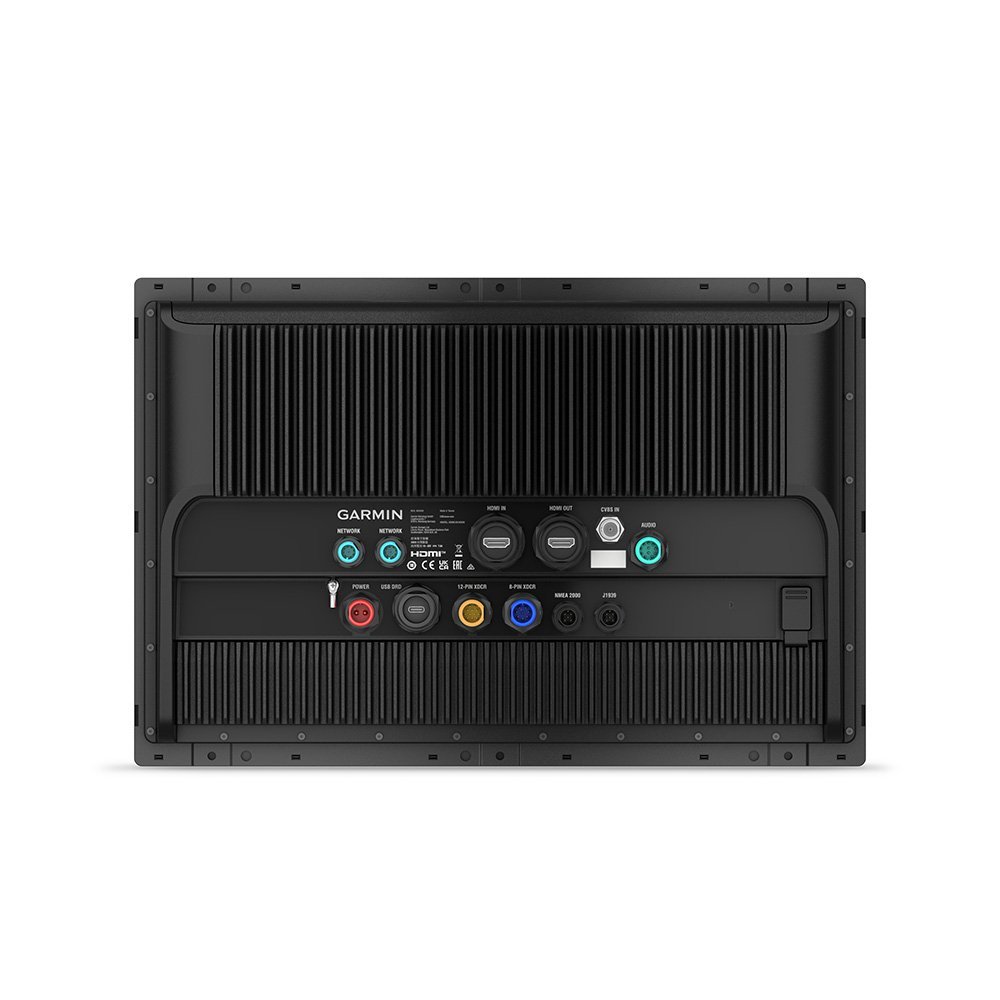

• Networking: Garmin BlueNet, HDMI input/output, USB-C, NMEA 2000, NMEA 0183
• Warranty: 2-year standard warranty

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 9017xsv is the Worldwide Basemap alternative to the charted GPSMAP 9217xsv, retaining the 17-inch Full HD display, premium Garmin Marine OS platform, and broad sonar and network support. Its main trade-off is chart coverage: Navionics+ is compatible but not preloaded in this package. Choose it for a custom glass helm where chart media and transducer hardware will be selected separately.
