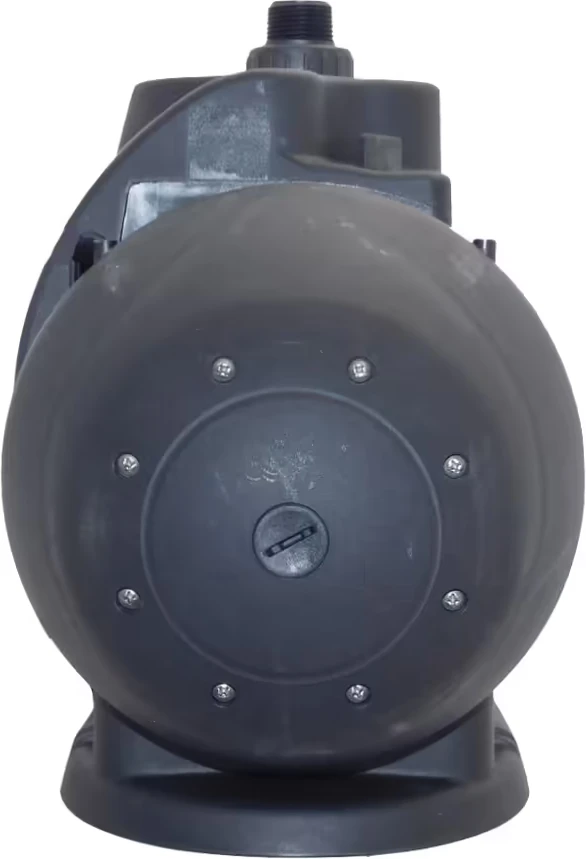

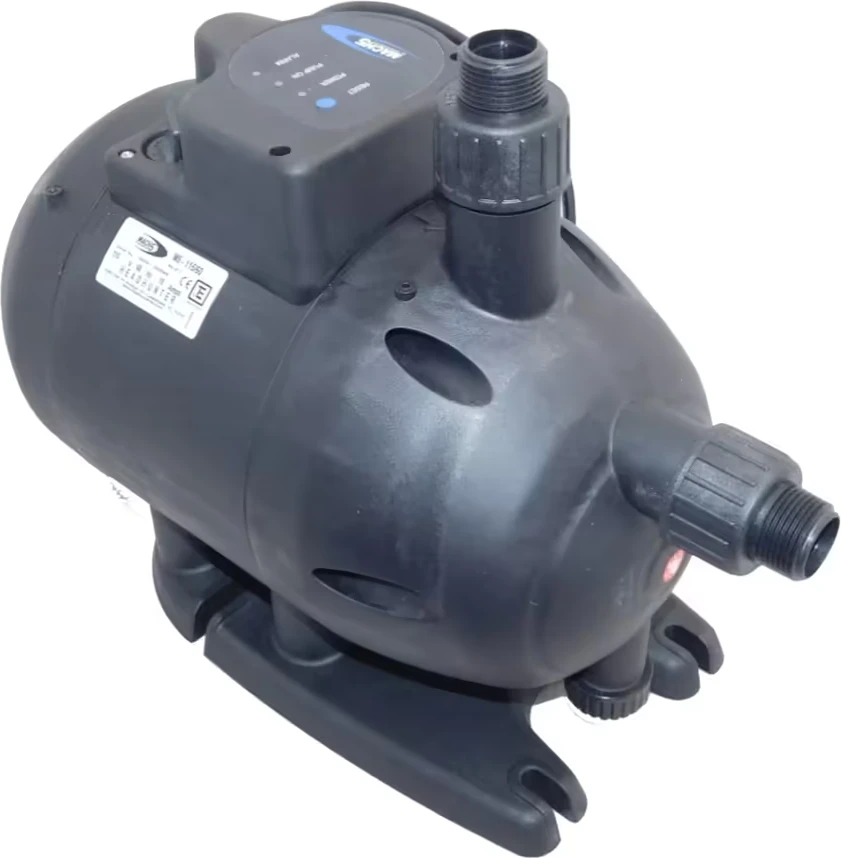

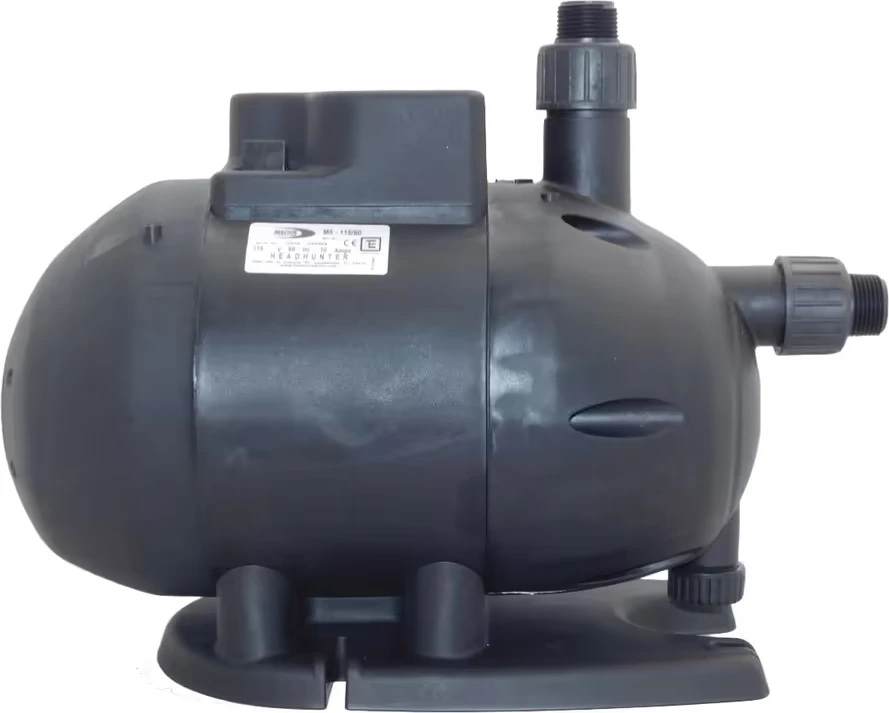

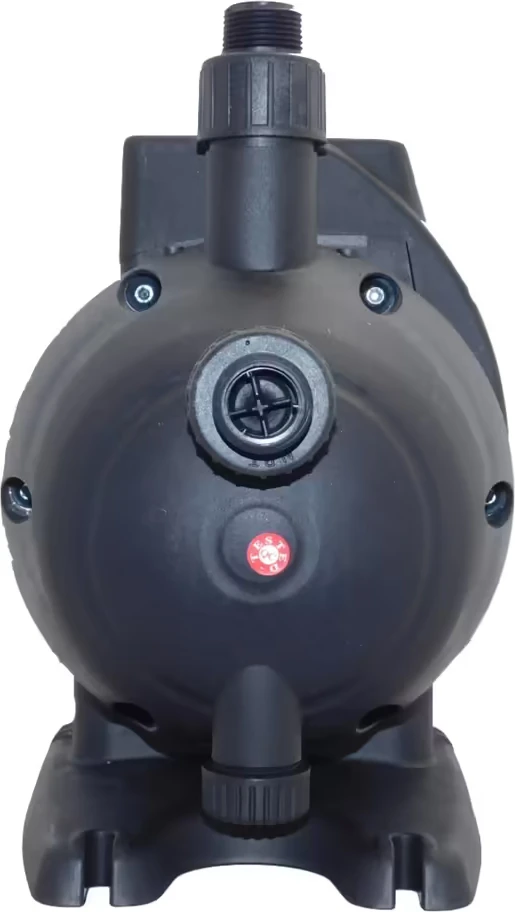

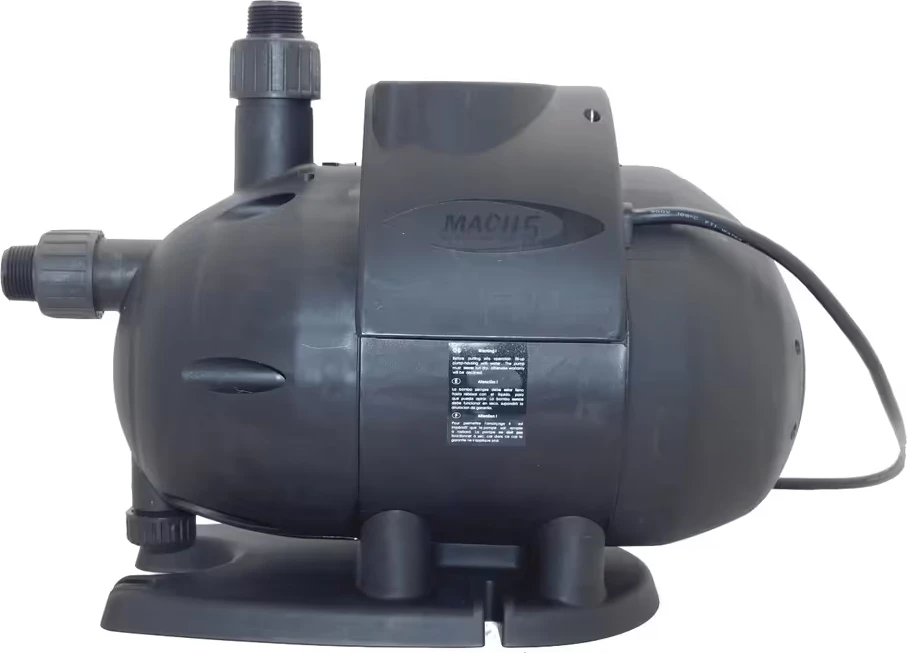

Headhunter Mach 5 Fresh Water Pump – 115V / 60Hz

Description

Maintain freshwater pressure for a large cruiser or sportfishing boat with the Headhunter Mach 5 M5-115/60 Fresh Water Pump. This multistage high-pressure self-priming centrifugal pump is designed for potable-water systems and constant-pressure galley supply, with a maximum rated flow of 1,200 GPH (20 GPM / 75.7 LPM) and factory-calibrated pressure up to 50 PSI (3.4 bar).

The M5-115/60 uses a reinforced composite body with marine-grade stainless internal components, 1-inch NPT female suction and discharge ports, and a 115V AC, 60 Hz single-phase electrical supply. Full-load current is listed at 12.0A at 115V AC.

Key Features

• Multistage high-pressure self-priming centrifugal freshwater pump.
• Designed for large-cruiser, sportfishing-boat, and constant-pressure galley-water applications.
• Maximum rated flow of 1,200 GPH, 20 GPM, or 75.7 LPM.
• Factory-calibrated pressure up to 50 PSI (3.4 bar).
• 115V AC, 60 Hz, single-phase U.S. marine electrical configuration.
• Listed full-load current of 12.0A at 115V AC.
• Reinforced composite pump body.
• Marine-grade stainless internal components.
• 1-inch NPT female suction connection.
• 1-inch NPT female discharge connection.

Compatibility and Installation

The Headhunter Mach 5 M5-115/60 is specified for compatible potable-water systems operating on 115V AC, 60 Hz single-phase power. Confirm the vessel electrical supply, circuit protection, 1-inch NPT plumbing, freshwater-system demand, required operating pressure, and available installation space before ordering. This 115V/60 Hz version is not a direct replacement for 230V or 50 Hz models.

Although the pump is specified as self-priming, correct inlet routing, leak-free plumbing, proper commissioning, and routine system inspection remain necessary. Maximum flow is a pump rating; actual delivered flow depends on total dynamic head, pipe diameter and length, fittings, water demand, elevation, and supply conditions. Follow manufacturer instructions for mounting, wiring, plumbing, and system commissioning.

Before Ordering

Verify Headhunter model M5-115/60, 115V AC 60 Hz single-phase requirement, 12.0A full-load current, multistage self-priming centrifugal design, 1,200 GPH maximum flow, 50 PSI factory-calibrated pressure, reinforced composite body, marine-grade stainless internal components, 1-inch NPT female suction and discharge ports, 432 x 203 x 254 mm dimensions, 27 lb dry weight, and 2-year limited manufacturer warranty before purchase.
