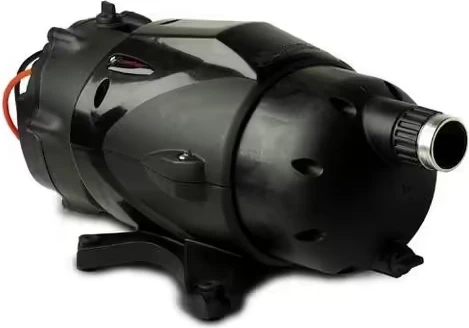

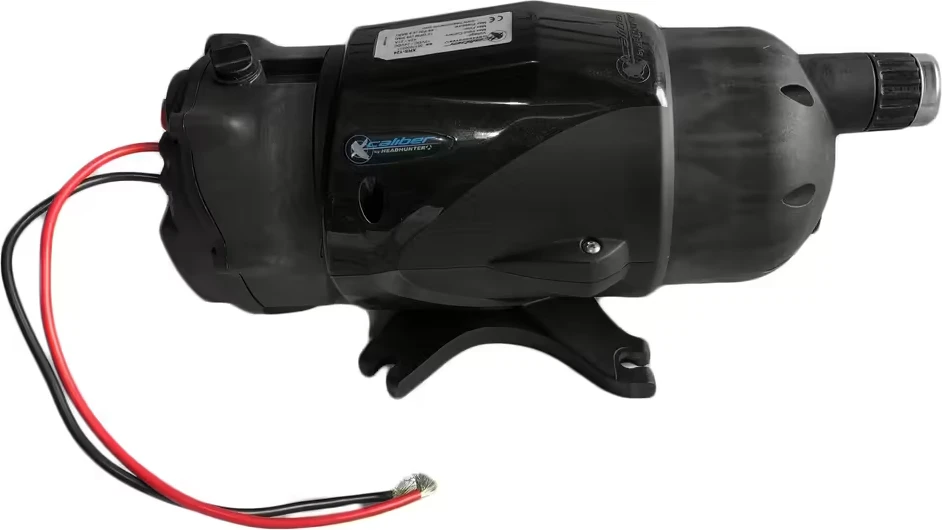

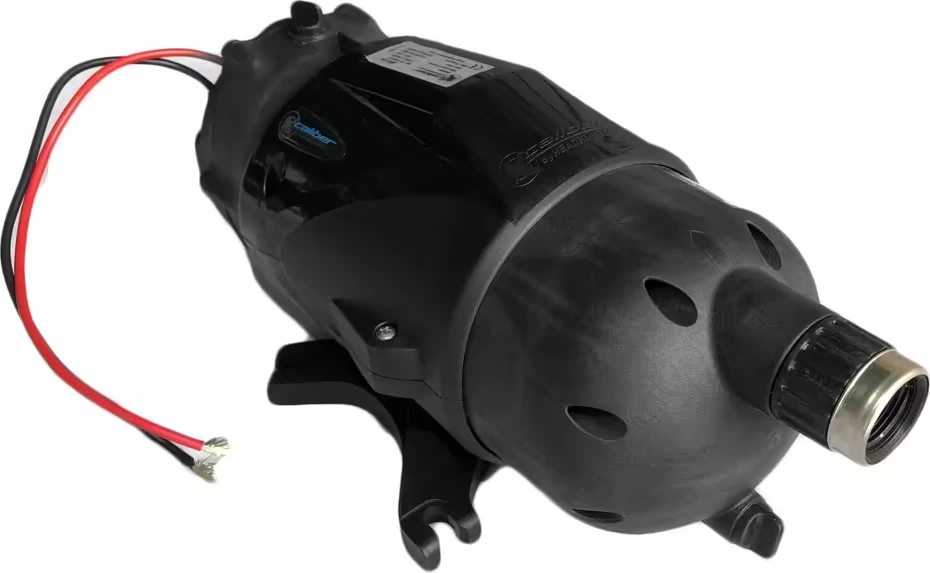

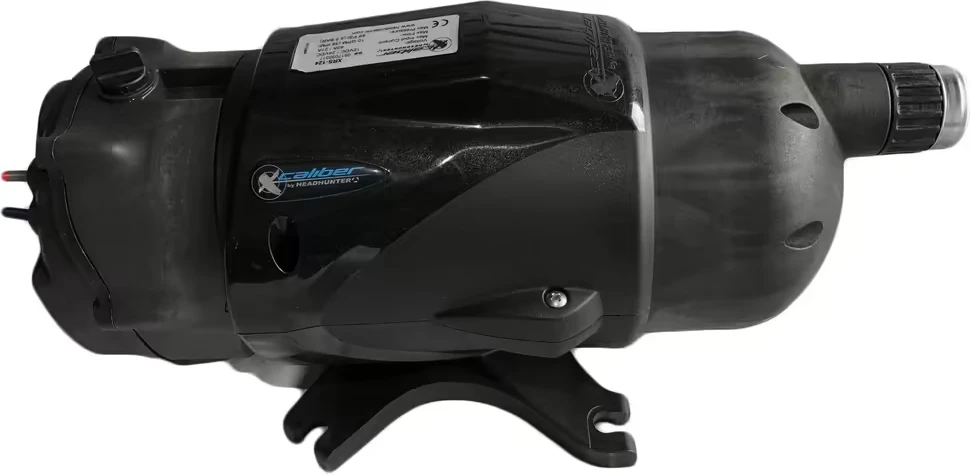

Headhunter X-Caliber Freshwater Pressure Pump – 12-24 VDC
Pressurizing whole-yacht potable water, the Headhunter X-Caliber Freshwater supplies 10 GPM at 67 PSI, utilizing FDA-compliant components and a variable-speed 12-24 VDC drive to deliver quiet, pulseless flow to galleys.
- 10 GPM flow feeds multiple fixtures.
- 67 PSI delivers strong shower pressure.
- FDA-compliant materials ensure safe potable drinking.
- Variable-speed motor prevents pressure pulsation surges.
- Dry-run protection prevents pump core burnouts.
Products are almost sold out
available only:
4In Stock
Description
Provide pressurized potable water throughout a yacht with the Headhunter X-Caliber XR-124 Freshwater Edition Pressure Pump. This intelligent variable-speed DC potable-water pump is designed for whole-yacht freshwater pressure, multi-fixture galley supply, and shower systems. It has a maximum rated flow of 600 GPH (10 GPM / 37.8 LPM) and delivers pulseless pressure up to 67 PSI (4.6 bar).
The X-Caliber XR-124 has a 12V to 24V DC universal auto-sensing controller and smart multi-speed drive that is specified to operate without an accumulator tank. FDA-compliant potable-water wet-end components support its stated freshwater use. The pump has 3/4-inch NPT connections, includes hose-barb adapters, and is listed as ISO 8846 and USCG marine ignition protected.
Key Features
- Intelligent variable-speed DC potable-water pump for whole-yacht freshwater pressure systems.
- Universal auto-sensing 12V to 24V DC controller.
- Maximum rated flow of 600 GPH, 10 GPM, or 37.8 LPM.
- Pulseless pressure up to 67 PSI (4.6 bar).
- Smart multi-speed drive specified to operate without an accumulator tank.
- FDA-compliant potable-water wet-end components.
- 3/4-inch NPT inlet and outlet connections.
- Hose-barb adapters included.
- Listed ISO 8846 and USCG marine ignition protection.
- Dry weight of 15 lb (6.8 kg).
Compatibility and Installation
The Headhunter X-Caliber XR-124 is specified for compatible potable-water systems. Confirm 12V or 24V DC power, 3/4-inch NPT plumbing, water-system demand, desired operating pressure, installation location, and appropriate circuit protection before ordering. The maximum flow and pressure ratings vary in actual use based on supply conditions, pipe diameter, plumbing length, fittings, elevation, simultaneous fixture demand, and DC voltage.
Install the pump only in a freshwater system that uses components appropriate for potable-water service. Follow the manufacturer’s instructions for mounting, inlet filtration or strainer requirements, wiring, circuit protection, plumbing connections, and system commissioning. The listed ignition protection does not replace the need to follow applicable marine installation and safety requirements.
Before Ordering
Verify Headhunter X-Caliber XR-124 Freshwater Edition, 12V to 24V DC auto-sensing operation, 600 GPH maximum flow, 67 PSI pulseless pressure, smart multi-speed drive, stated accumulator-tank-free operation, FDA-compliant potable-water wet end, 3/4-inch NPT ports, included hose-barb adapters, listed ISO 8846 and USCG ignition protection, 305 x 178 x 165 mm dimensions, 15 lb dry weight, and 2-year limited manufacturer warranty before purchase.
Headhunter X-Caliber Freshwater Pressure Pump - 12-24 VDC
| Brand | Headhunter |
|---|---|
| Model / SKU | X-Caliber (XR-124 / Freshwater Edition) |
| Country of Origin | USA |
| Pump Category | Intelligent Variable-Speed DC Potable Water Pump |
| Voltage Range | 12V to 24V DC (Auto-Sensing Universal DC Controller) |
| Max Flow Rate | 600 GPH (10 GPM / 37.8 LPM) |
| Max Operating Pressure | 67 PSI (4.6 bar) Pulseless Pressure |
| Motor & Control Tech | Smart Multi-Speed Drive (No Accumulator Tank Required) |
| Material Standards | FDA Compliant Potable Water Wet-End Components |
| Inlet / Outlet Port Size | 3/4" NPT (Includes Hose Barb Adapters) |
| Ignition Protection Standards | ISO 8846 / USCG Marine Certified Ignition Protected |
| Dimensions & Dry Weight | 305 x 178 x 165 mm / 6.8 kg (15 lbs) |
| Primary Application | Whole-Yacht Potable Water Pressure, Multi-Fixture Galley & Shower Supply |
| Standard Warranty | 2 Years Limited Manufacturer Warranty |
