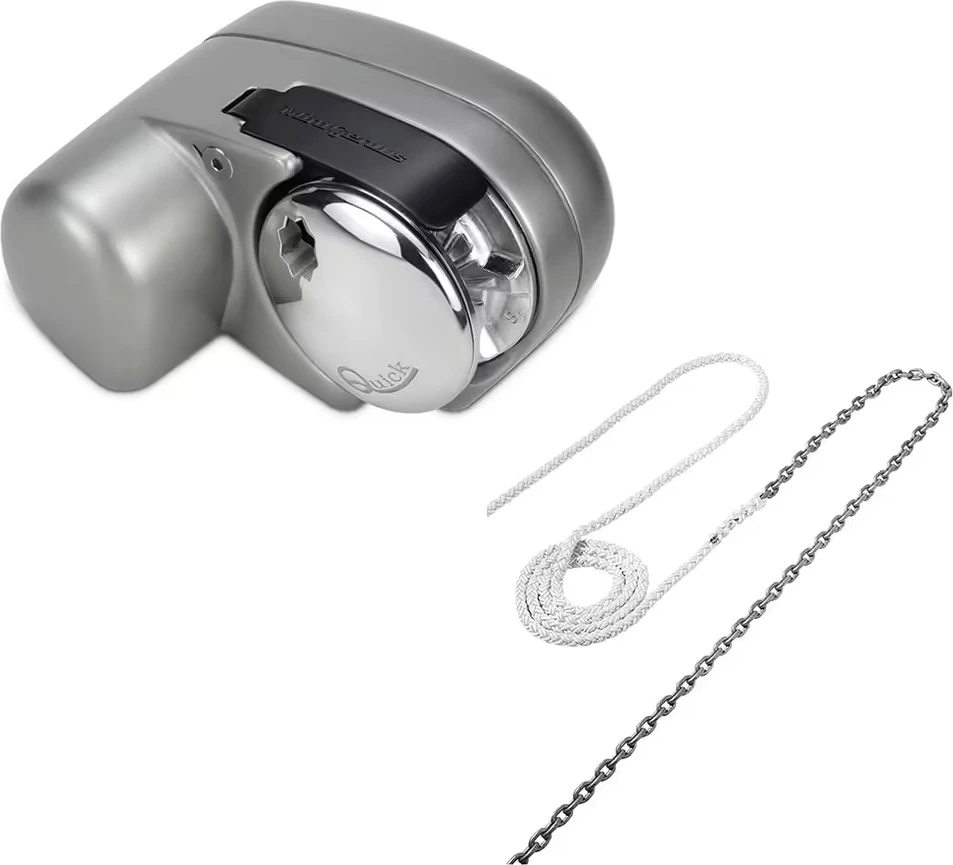

Quick Genius GP2 1200 250W 12V Anchor Windlass Kit

Description

TheQuick Genius GP2 1200combines a 250W 12V DC motor with a horizontal on-deck gypsy and warping drum package. The windlass has a stated maximum pull of 1,212 lbs and a 374 lbs continuous working-load rating. Its anodized marine aluminum housing uses a high-impact composite core.

The gypsy accepts 1/4 in DIN 766 or ISO 4565 chain with 1/2 in three-strand nylon rope. An epicyclic planetary reduction gear train transfers motor output, while an integrated pressure-lever clutch controls free-fall release. The provided product data does not confirm an anchor, rode, contactor, or additional controls as included.

Key Features of the Genius GP2 1200 Windlass

• A 250W 12V motor drives the on-deck gypsy and warping-drum configuration.
• For matched rode handling, use 1/4 in DIN 766 or ISO 4565 chain.
• The confirmed rope size is 1/2 in three-strand nylon.
• At 374 lbs, the working-load rating supports continuous hauling assessment.
• Maximum pull reaches 1,212 lbs, separate from the listed continuous working load.
• An epicyclic planetary gear train transfers power through the listed reduction system.
• Free-fall release operates through the listed integrated pressure-lever clutch.
• The warping drum adds separate line-handling capability beside the chain gypsy.
• Working-load current measures 24A, with a 40A circuit breaker required.
• Anodized aluminum and a high-impact composite core form the listed housing.

Which Boats This Windlass Fits

The Genius GP2 1200 windlass is recommended for cruising sailboats, pontoons, and runabouts from 20 to 30 ft. Its gypsy requires 1/4 in DIN 766 or ISO 4565 chain paired with 1/2 in three-strand nylon rope. Both components must match the listed rode specification before they pass through the gypsy.

The 1,212 lbs figure is the listed maximum pull rating. The 374 lbs working-load rating provides the separate continuous hauling value. Boat owners should use the continuous rating for regular retrieval planning.

Materials, Technology and Use

The anodized marine aluminum housing and high-impact composite core form the listed on-deck structure. The epicyclic planetary reduction gear train provides the listed gearbox architecture. An integrated pressure-lever clutch manages the listed free-fall action, while the warping drum supports separate line handling.

Salt deposits, sand, and debris can still collect around the housing, gypsy, drum, rope-to-chain transition, and deck hardware. Regular cleaning and inspection remain necessary. Follow manufacturer guidance for clutch operation and gearbox service.

Compatibility and Installation

The Quick on-deck windlass operates on 12V DC, draws 24A at the listed working load, and requires a 40A circuit breaker. The unit weighs 18.1 lbs. The available product details do not list deck thickness, dimensions, mounting details, or confirmed included controls, so installers should consult manufacturer documentation before installation.

Electrical planning should consider 24A charging requirements alongside the listed working-load current and breaker requirement. The provided product data does not confirm an anchor, rode, contactor, or additional control hardware as included.

Care and Operating Notes

Rinse the housing, gypsy, warping drum, chain, and rope with fresh water after saltwater exposure. Remove salt, sand, mud, and debris from the rope-to-chain transition and pressure-lever clutch before operation. Inspect chain links, rope condition, clutch movement, drum surface, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for gearbox service, lubricant selection, disassembly, and approved replacement parts.

Warranty and Support

The Genius GP2 1200 carries a 3-year limited manufacturer warranty. The provided warranty term does not define coverage for labor, corrosion, electrical accessories, shipping, or other components. These terms reflect manufacturer-stated coverage, and buyers should verify active warranty policies directly with the seller or manufacturer prior to purchase.

Before Ordering

Confirm that your anchor rode uses 1/4 in DIN 766 or ISO 4565 chain with 1/2 in three-strand nylon rope. You should compare your vessel with the 20 to 30 ft application guide, allow for the 18.1 lbs unit mass, and verify mounting details through manufacturer documentation. Confirm that your 12V system supports the listed 24A working-load draw and required 40A circuit breaker. Verify the exact package contents with the seller before ordering.
