Octopus Sterndrive System f/Mercruiser 1983-1993 & European Volvo Diesel from 1994

Classic MerCruiser and European Volvo sterndrives gain automated steering with this Octopus Sterndrive System linear drive, which feeds 500 lbs of thrust through a mechanical push-pull cable directly into power-assist steering valves at 12V.

  • 500-lb peak thrust moves sterndrive outdrives
  • Direct connection bypasses helm mechanical drag
  • Integrated clutch ensures unhindered manual takeover
  • Engine-specific brackets fit pre-1994 sterndrive assemblies
$779.00

Products are almost sold out

This product is about to run out

available only:

8

In Stock

Wholesale Price
Request for Quotation
Add to wishlist
Compare
SKU: OCT-STR-8394 Category: Brand:
SKU:

OCT-STR-8394

Description

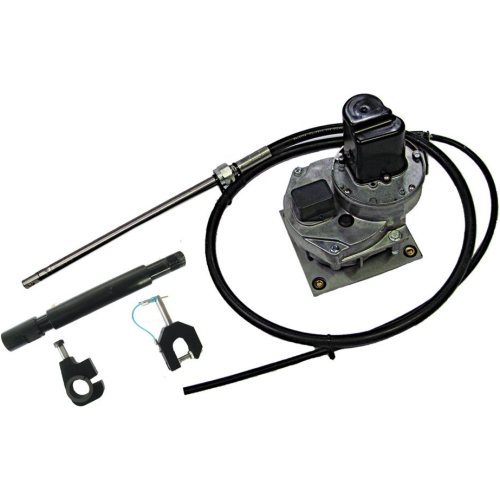

The Octopus Sterndrive System for MerCruiser 1983-1993 and European Volvo Diesel from 1994 is an electromechanical autopilot drive for compatible older inboard/outboard power-assisted steering systems. The actuator connects to the appropriate power-steering arrangement through an engine-specific mechanical push-pull cable and mounting hardware, allowing autopilot steering without continuously rotating the helm wheel.

The drive uses a 12V reversing gear motor with internal clutch and produces up to 500 lb, or 227 kg, of listed peak thrust. It includes an engine-specific mounting kit and steering cable, but it is a drive-only component. Add a compatible autopilot course computer, heading sensor, control display, suitable power circuit, and physical rudder feedback where required by the selected autopilot system.

Key Specifications

  • Electromechanical sterndrive actuator for compatible MerCruiser 1983-1993 and European Volvo diesel 1994-and-later power-assisted steering systems.
  • Connects through an engine-specific mechanical push-pull steering cable arrangement.
  • Uses a 12V reversing gear motor with an internal clutch for linear steering actuation.
  • Provides up to 500 lb, or 227 kg, of listed peak thrust.
  • Typical power draw is listed at 3A to 6A, with up to 15A maximum current under load.
  • Includes the engine-specific mounting kit and steering cable.
  • Requires transom-shield or engine-bracket mounting with protected mechanical cable routing.
  • Weighs approximately 6.2 kg and has a splash-resistant IPX5-rated housing description.

System Integration

This product is a steering drive only. It requires an autopilot course computer capable of controlling a 12V reversing motor and clutch circuit, along with a heading sensor, display or controller, power supply, and any required feedback sensor. Verify exact output current, motor polarity, clutch wiring, feedback requirements, and approved interface arrangements before matching it with a Simrad, Garmin, Raymarine, or other autopilot system.

Older sterndrive systems vary by engine family, regional specification, power-steering valve design, transom hardware, and cable routing. Confirm exact engine identification and the engine-specific mounting-kit fitment rather than relying on model-year guidance alone.

Installation Considerations

Mount the actuator on a rigid protected surface and route the steering cable away from engine movement, exhaust components, belts, heat, hydraulic lines, and service-access points. Ensure the cable has no sharp bends or excessive friction. Confirm full manual steering, clutch disengagement, unrestricted engine movement, correct port and starboard response, and protected 12V wiring with suitable overcurrent protection before sea trial.

Before Ordering

Confirm the exact MerCruiser or European Volvo diesel engine and sterndrive model, applicable production year, compatible power-steering arrangement, required engine-specific mounting kit, cable-routing path, available mounting space, compatible autopilot course computer, 12V supply, 15A circuit capacity, clutch wiring, feedback requirement, and complete autopilot-system components before purchase.

Octopus Sterndrive System f/Mercruiser 1983-1993 & European Volvo Diesel from 1994

Drive TypeElectromechanical Sterndrive Actuator
Pump/Ram CapacityDirect Mechanical Linkage to Power Assist
Flow Rate / SpeedHigh-Response Steering Geometry
Max Pressure500 lbs (227 kg) Peak Thrust
Cylinder CompatibilityMercruiser (Pre-1994) / Volvo Diesel (European)
Operating Voltage12V DC System
Peak Current Draw15 Amps Maximum Load
Average Power Draw3A - 6A Typical Cruising
Motor TypeReversing Gear Motor w/ Internal Clutch
Computer CompatibilityUniversal (ACU-200, NAC-2, Reactor)
Port Size / ThreadProprietary Sterndrive Cable Link
Drive ConnectionMechanical Push-Pull Cable
Rotation/Stroke DirectionLinear Actuation at Engine Hub
Mounting TypeTransom Shield / Engine Bracket Mount
Housing MaterialCast Alloy & Marine Grade Polymer
Waterproof RatingIPX5 Splash Resistant
Operating Temperature-10°C to +55°C Marine Grade
Length (Overall)Variable Cable Reach
Width/DiameterCompact Motor Housing Unit
Weight6.2 kg (13.7 lbs)
Included AccessoriesEngine Specific Mounting Kit, Cable
Key Mechanical FeatureBypasses mechanical helm for zero steering drag
