Garmin GPSMAP 1643 Chartplotter GN+

Description

On an offshore boat, a 16-inch screen earns its space when the chart, radar, engine data, and route all need to stay open while running. The Garmin GPSMAP 1643 is a large marine chartplotter for offshore fishing boats and cruisers that need a clean, chart-first Garmin helm. It is not a self-contained fishfinder, which matters before ordering.

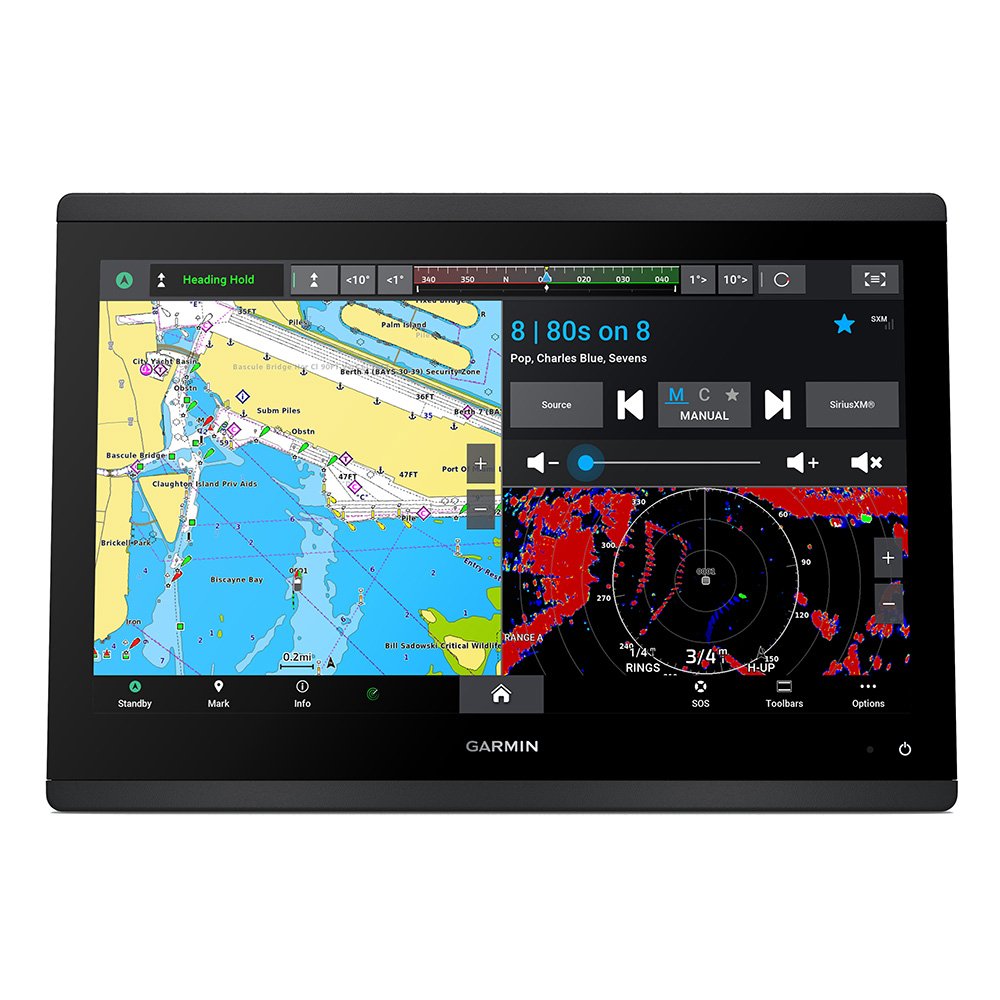

The 1920 x 1080 IPS touchscreen gives chart labels, sounder windows, and data overlays room to breathe instead of stacking them on top of each other. Garmin Navionics+ mapping for the US, Canada, and Mexico is preloaded, so the chart side is ready from day one. At 1100 nits, the screen is intended for bright helm conditions. Sonar comes from a separate GSD or GCV network module, which is the right arrangement when the boat already has a selected sounder and transducer plan.

Key Features

• 16-inch IPS touchscreen – Gives a large helm enough room for chart, radar, and engine pages together.
• 1920 x 1080 Full HD resolution – Keeps detailed chart labels and split-screen data easier to read.
• 1100-nit brightness – Helps the screen remain readable in daylight.
• Garmin Navionics+ US, Canada, and Mexico – Includes regional coastal and inland chart coverage.

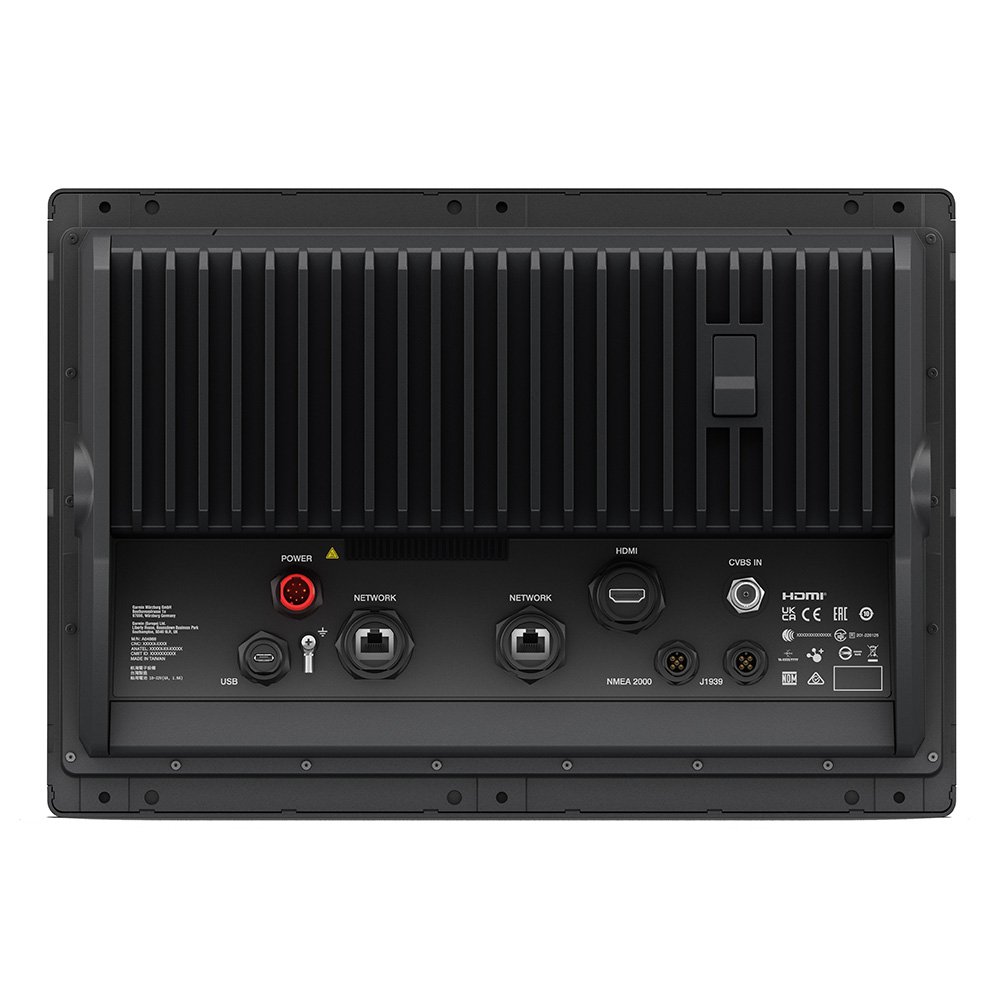

• Two Garmin Marine Network ports, NMEA 2000, NMEA 0183, J1939, WiFi, Bluetooth, and ANT+ – Connects the display to a larger Garmin vessel network.

Who Is This For?

This large Garmin chartplotter suits offshore fishing boats, sport cruisers, and 26- to 55-foot boats with a proper helm panel. It is not ideal for compact consoles or buyers needing an included transducer; add a compatible GSD or GCV sounder module for sonar.

Compatibility

Confirmed compatibility includes Garmin Navionics+, Garmin Marine Network, NMEA 2000, NMEA 0183, J1939, WiFi, Bluetooth, ANT+, and external GSD/GCV sonar modules. The supplied information does not name a specific transducer, radar, or autopilot model. No named incompatible system was provided.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 1643 non-xsv, 010-02856-02
• Display: 16-inch IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1100 nits
• Charts: Garmin Navionics+ US, Canada, and Mexico
• Sonar: External GSD/GCV network sonar only
• Networking: Two Garmin Marine Network ports, NMEA 2000, NMEA 0183, J1939, WiFi, Bluetooth, ANT+
• Power draw: 3.5A at 12V
• Water rating: IPX7

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state exclusions or service procedures.

The GPSMAP 1643 is the chart-ready choice for a large Garmin helm. Compared with the GPSMAP 1623, it is aimed at buyers who want Garmin Navionics+ mapping for North American waters already loaded. The trade-off is external sonar: it saves you from paying for unwanted built-in sounder hardware, but a compatible GSD or GCV module remains part of the final system cost.
