Garmin GPSMAP 9013xsv Premium Chartplotter/Sonar w/Worldwide Basemap

Description

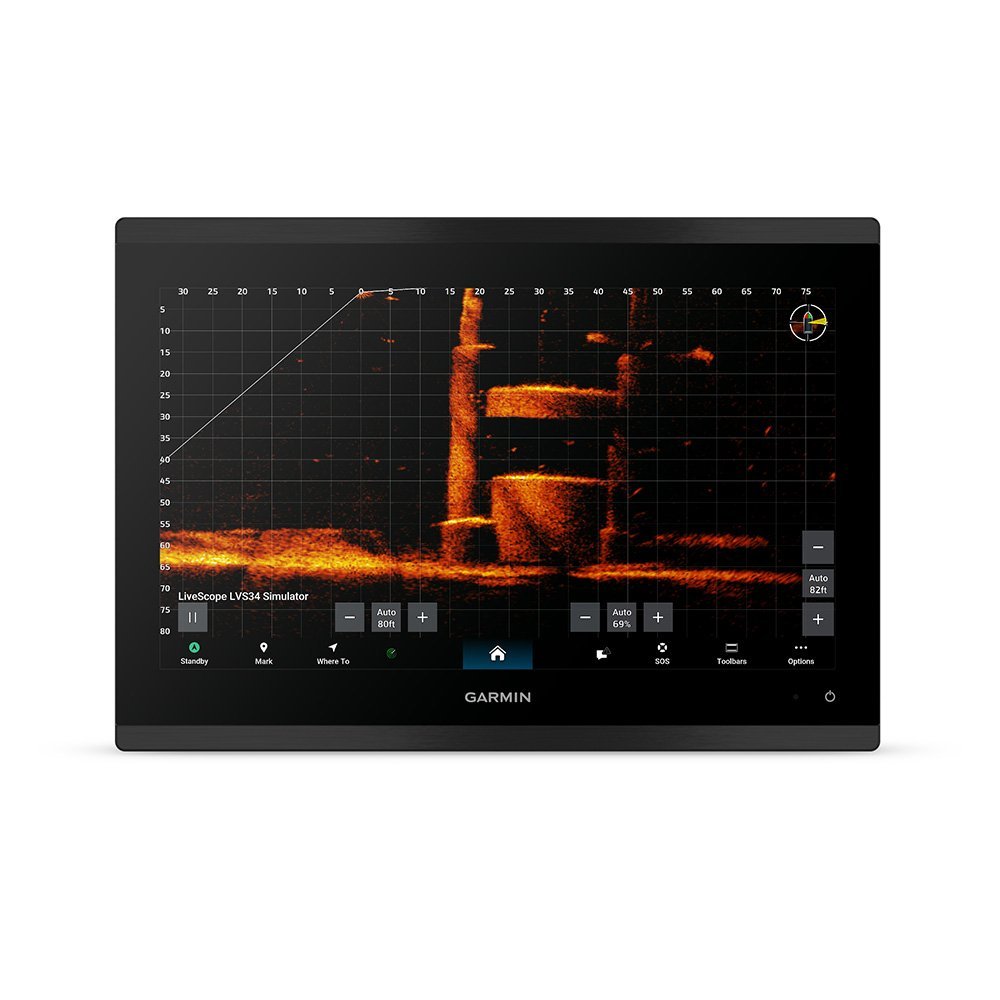

The Garmin GPSMAP 9013xsv provides a 13-inch Full HD IPS touchscreen with Garmin Marine OS, built-in 1kW CHIRP, UHD ClearVü, UHD SideVü, Panoptix support, and a Worldwide Basemap. Garmin BlueNet, NMEA 2000, NMEA 0183, HDMI output, USB-C, WiFi, Bluetooth, and ANT+ support a premium connected installation. Detailed regional charts and sonar hardware are not included in the supplied package.

Key Features

• 13-inch Full HD IPS touchscreen – Provides a large chart and sonar workspace for a mid-size glass helm.
• 1920 x 1080 resolution – Shows detailed mapping and fishfinding information across the screen.
• 1200-nit brightness – Provides the stated brightness for daylight helm viewing.
• 1kW CHIRP, UHD ClearVü, SideVü, and Panoptix support – Provides multiple sonar expansion options with compatible hardware.

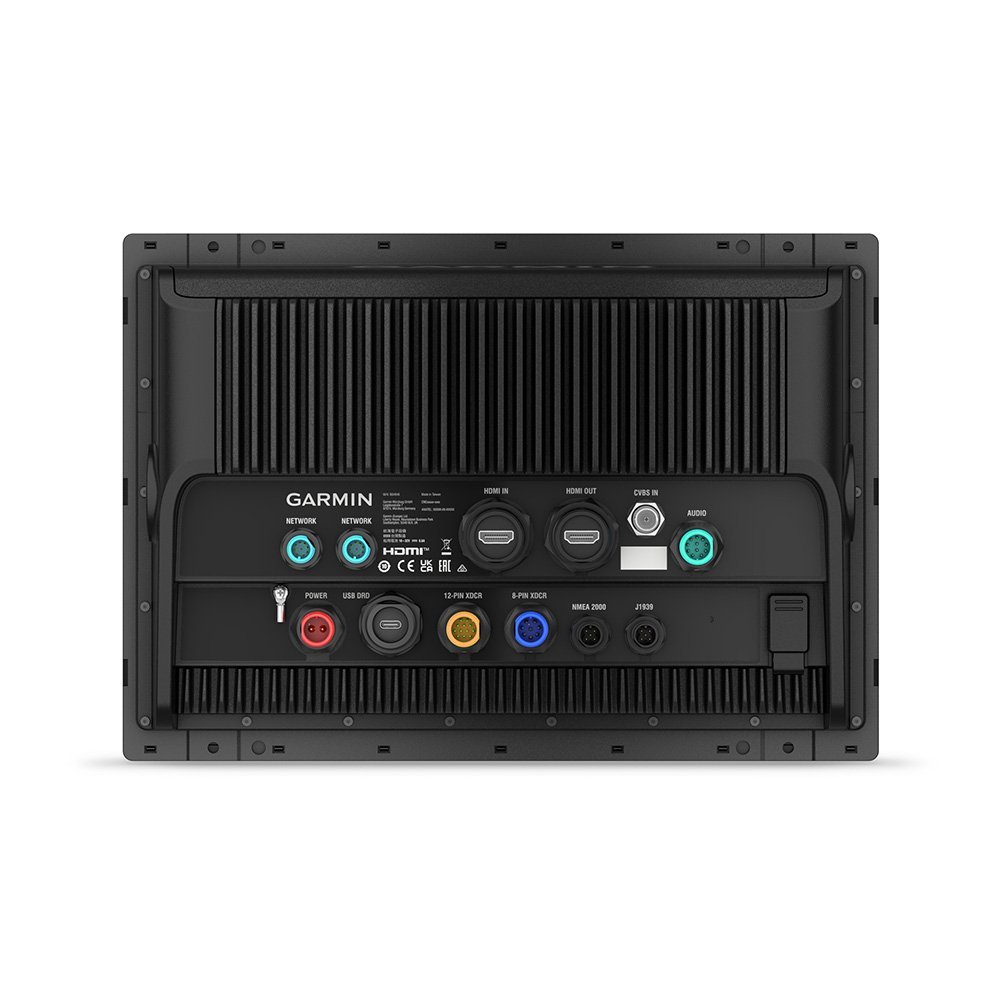

• Garmin BlueNet, HDMI output, USB-C, NMEA 2000, and NMEA 0183 – Supports high-speed network and marine-data connections.

Who Is This For?

This model suits coastal fishing boats, offshore cruisers, center consoles, and owners building a premium Garmin glass helm around a 13-inch display. The Full HD screen provides useful room for charts and sonar without the physical size of a 17-inch unit.

It is not ideal for buyers who need regional charts preloaded or a complete fishfinder package. This version lists a Worldwide Basemap, and the transducer must be selected separately.

Compatibility

Confirmed features include Garmin BlueNet, NMEA 2000, NMEA 0183, HDMI output, USB-C, WiFi, Bluetooth, ANT+, 1kW CHIRP, UHD ClearVü, UHD SideVü, and Panoptix support. The supplied information does not identify specific transducer models, radar, autopilot, or third-party chartplotter compatibility. No named incompatible system was provided; verify Garmin network, chart, and sonar requirements before installation.

Technical Specifications

• Brand: Garmin
• Model: GPSMAP 9013xsv, 010-02640-00
• Display: 13-inch IPS touchscreen
• Resolution: 1920 x 1080 Full HD
• Brightness: 1200 nits
• Processor: Garmin ultra-high-speed processor
• Sonar compatibility: Built-in 1kW CHIRP, UHD ClearVü/SideVü, Panoptix
• Mapping: Worldwide Basemap, Navionics+ compatible
• Networking: Garmin BlueNet, HDMI output, USB-C, NMEA 2000, NMEA 0183
• Warranty: 2-year standard warranty

Warranty & Support

Garmin provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GPSMAP 9013xsv is the Worldwide Basemap alternative to the charted GPSMAP 9213xsv, with the same 13-inch Full HD screen, 1200-nit brightness, and premium sonar platform. Its trade-off is that detailed regional charts are not preloaded, and no transducer is included. Choose it for a custom Garmin installation where chart coverage and sonar hardware will be selected separately.
