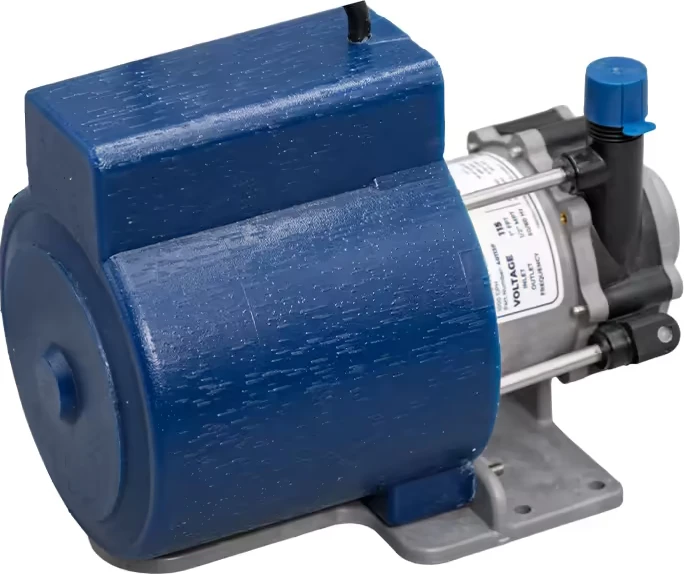

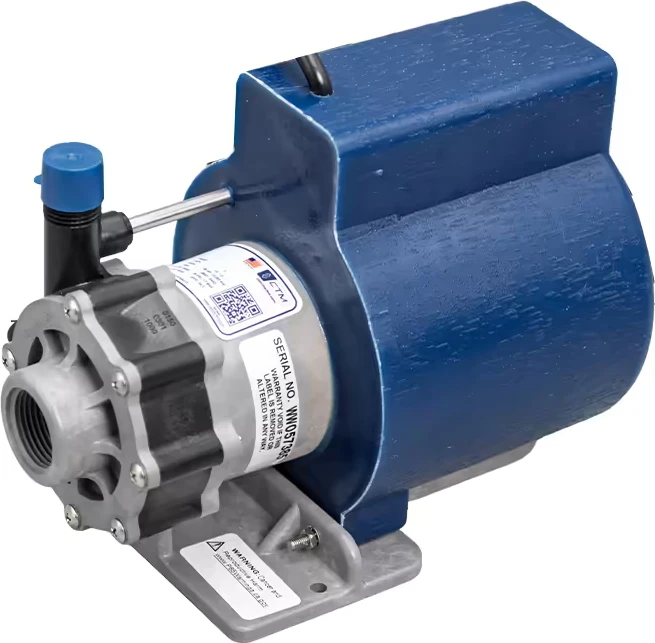

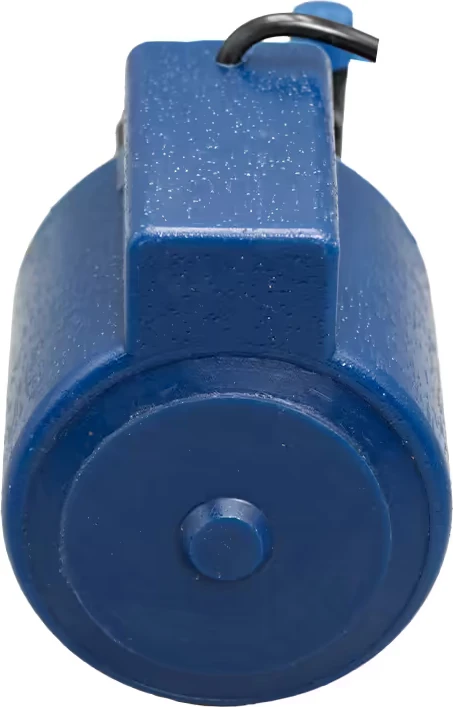

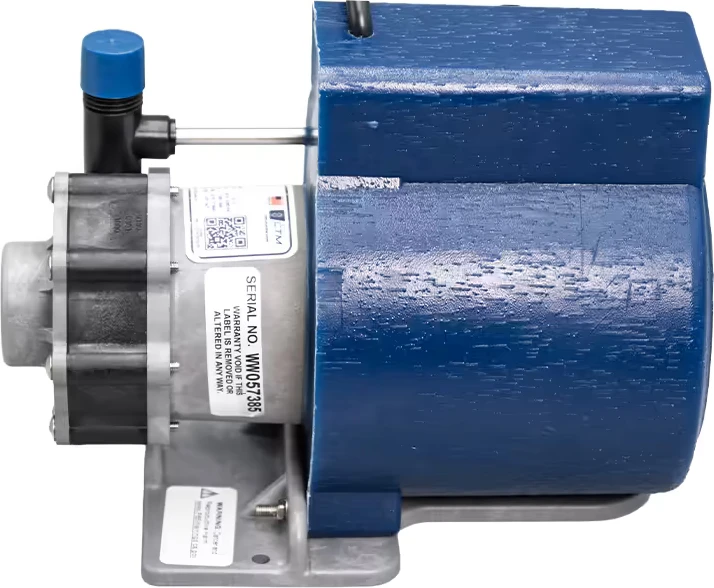

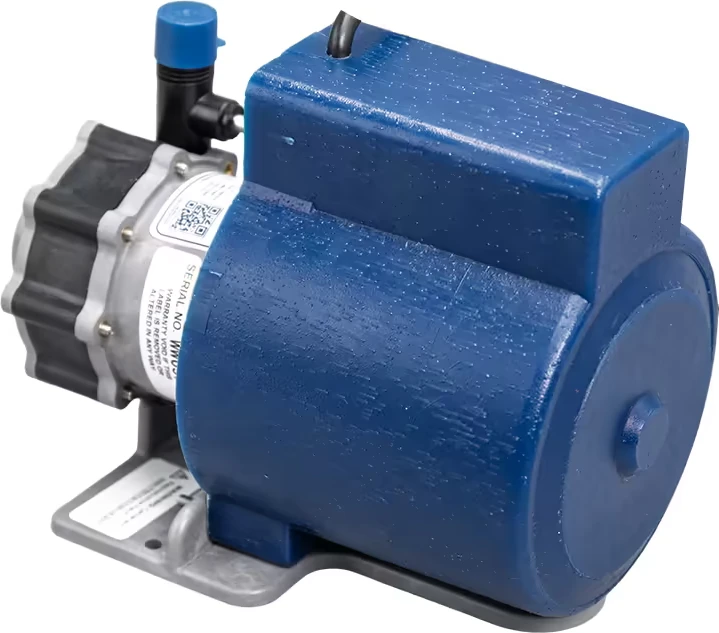

CTM PM1000L (1000 GPH) 115V Submersible A/C Pump

Description

Circulate seawater for marine air-conditioning cooling systems with the CTM Marine PM1000L-115 Submersible A/C Pump. This fully submersible, seal-less magnetic-drive centrifugal pump is specified as a direct replacement for compatible 115V March PML1000 and LC-5M-MD units. It provides a maximum rated flow of 1,000 GPH (16.6 GPM / 63.2 LPM), a maximum head of 27 ft (8.2 m), and maximum pressure of 11.7 PSI.

The CTM Marine PM1000L-115 uses a heavy-duty epoxy-encapsulated submersible motor and operates on 115V AC, 50/60 Hz single-phase power. It has a 1-inch FPT inlet, 1/2-inch MPT outlet, and listed ISO 8846 and USCG marine ignition protection.

Key Features

• Fully submersible seal-less magnetic-drive centrifugal pump for marine A/C cooling and seawater circulation.
• Specified as a direct replacement for compatible 115V March PML1000 and LC-5M-MD units.
• Maximum rated flow of 1,000 GPH, 16.6 GPM, or 63.2 LPM.
• Maximum rated head of 27 ft (8.2 m) and maximum pressure of 11.7 PSI.
• 115V AC, 50/60 Hz single-phase operation.
• Heavy-duty epoxy-encapsulated submersible motor.
• 1-inch FPT inlet and 1/2-inch MPT outlet.
• Listed ISO 8846 and USCG marine ignition protection.
• Fully submersible pump construction.
• Dry weight of 9.0 lb (4.1 kg).

Compatibility and Installation

The CTM Marine PM1000L-115 is specified for compatible marine A/C seawater-circulation systems and compatible 115V March PML1000 or LC-5M-MD replacement applications. Confirm the exact installed pump model, 115V AC 50/60 Hz single-phase supply, electrical connections, plumbing threads, mounting dimensions, required flow, and system head before ordering. Direct-replacement compatibility should be confirmed against the existing pump and the vessel’s installation requirements.

The 1,000 GPH value is a maximum rating, and actual installed output changes with total dynamic head, water intake restrictions, strainer condition, hose or pipe size, plumbing length, fittings, discharge restrictions, and electrical conditions. Use appropriate marine seawater intake, seacock, strainer, plumbing, circuit protection, and bonding components in accordance with product documentation and vessel-system requirements.

Before Ordering

Verify CTM Marine model PM1000L-115, fully submersible seal-less magnetic-drive configuration, stated compatibility with 115V March PML1000 and LC-5M-MD units, 1,000 GPH maximum flow, 27 ft maximum head, 11.7 PSI maximum pressure, 115V AC 50/60 Hz single-phase power, epoxy-encapsulated submersible motor, 1-inch FPT inlet, 1/2-inch MPT outlet, listed ISO 8846 and USCG ignition protection, 200 x 140 x 160 mm dimensions, 9.0 lb dry weight, and 1-year limited manufacturer warranty before purchase.
